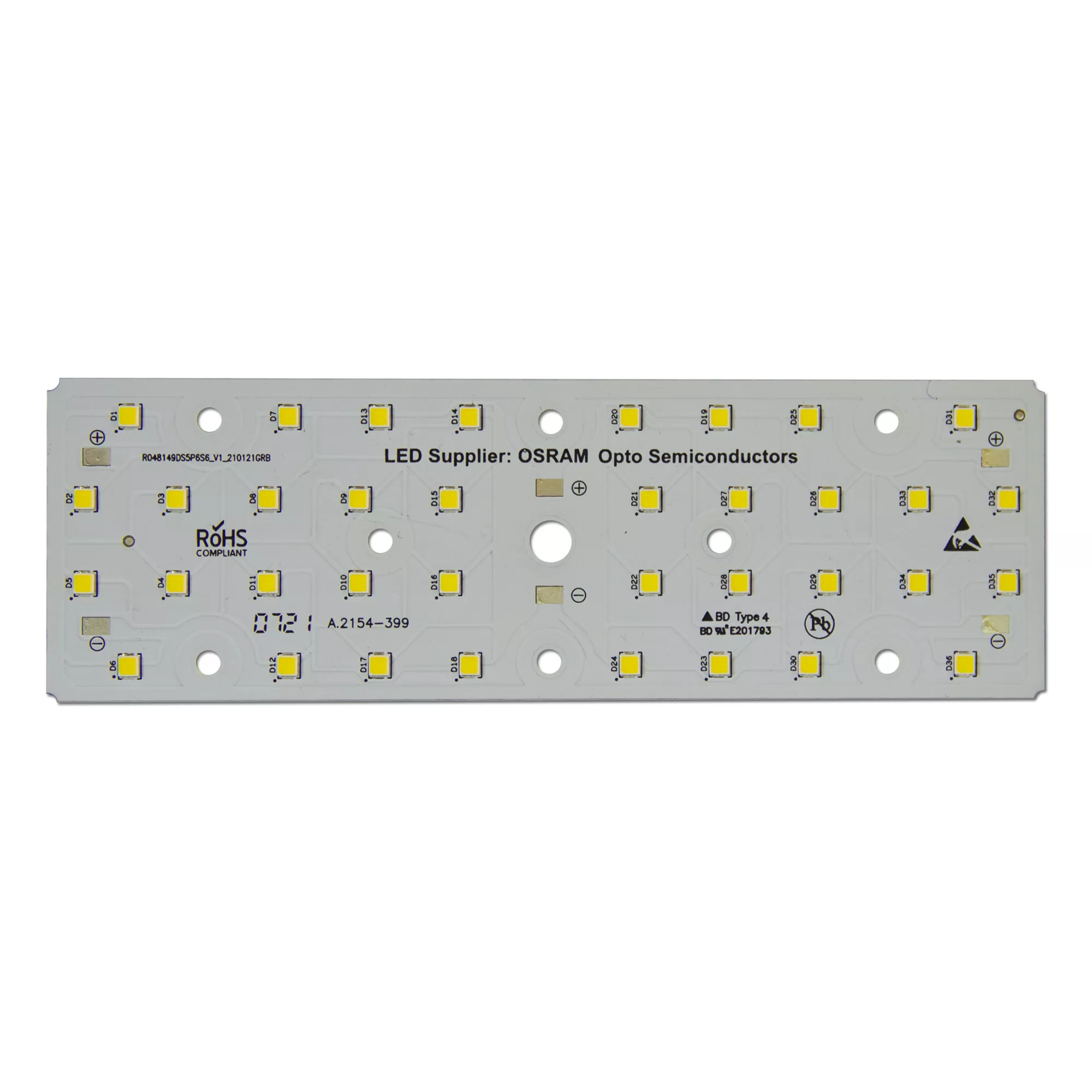

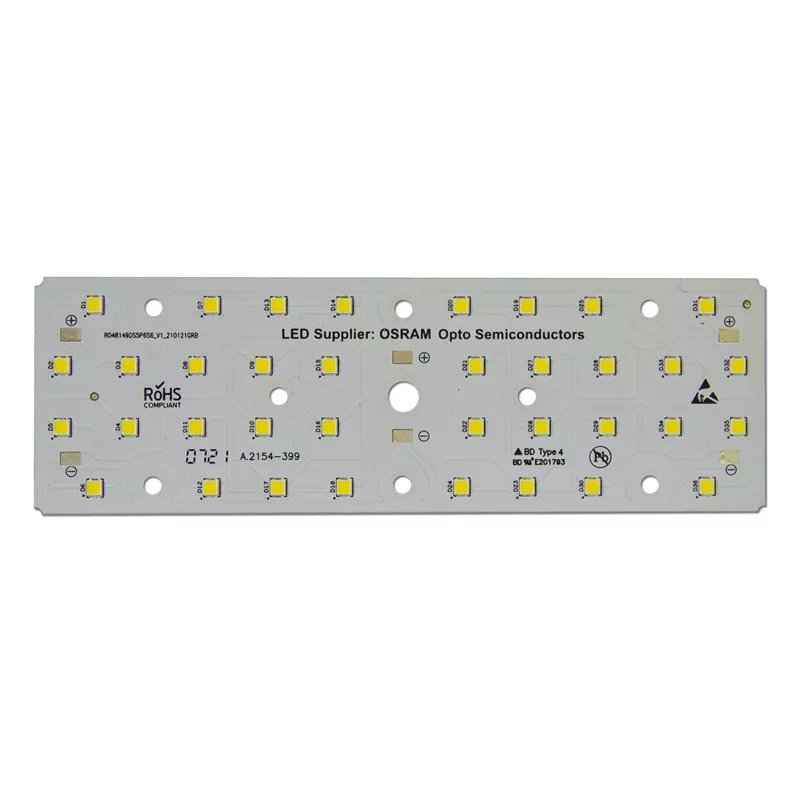

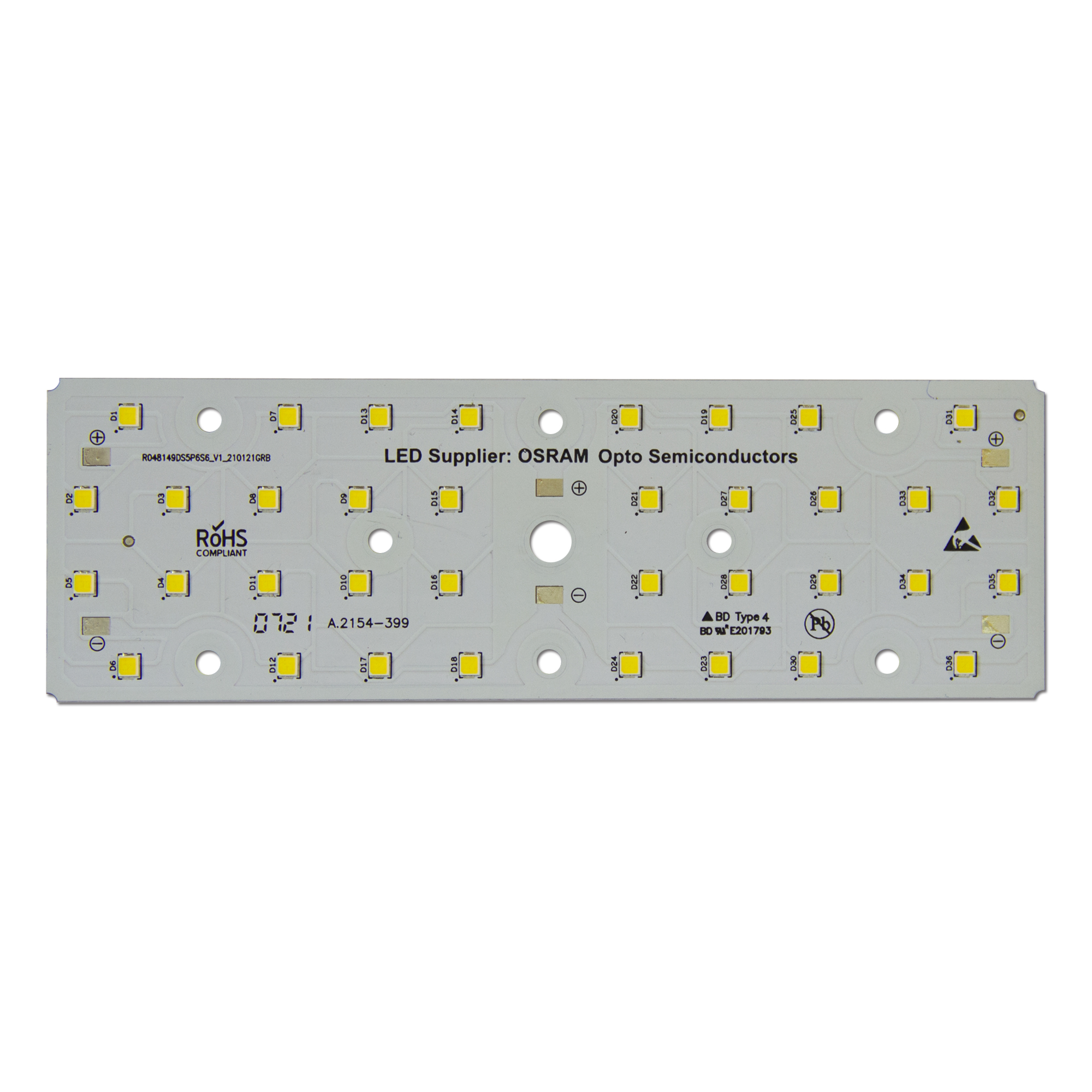

RC-A1-149x48-DS5X36
Manufacturer : Sarnikon
Category : Outdoor Lighting LED Modules
Suitable for linear lighting
Low energy consumption, high efficiency and long life
Integrated current source to stabilize

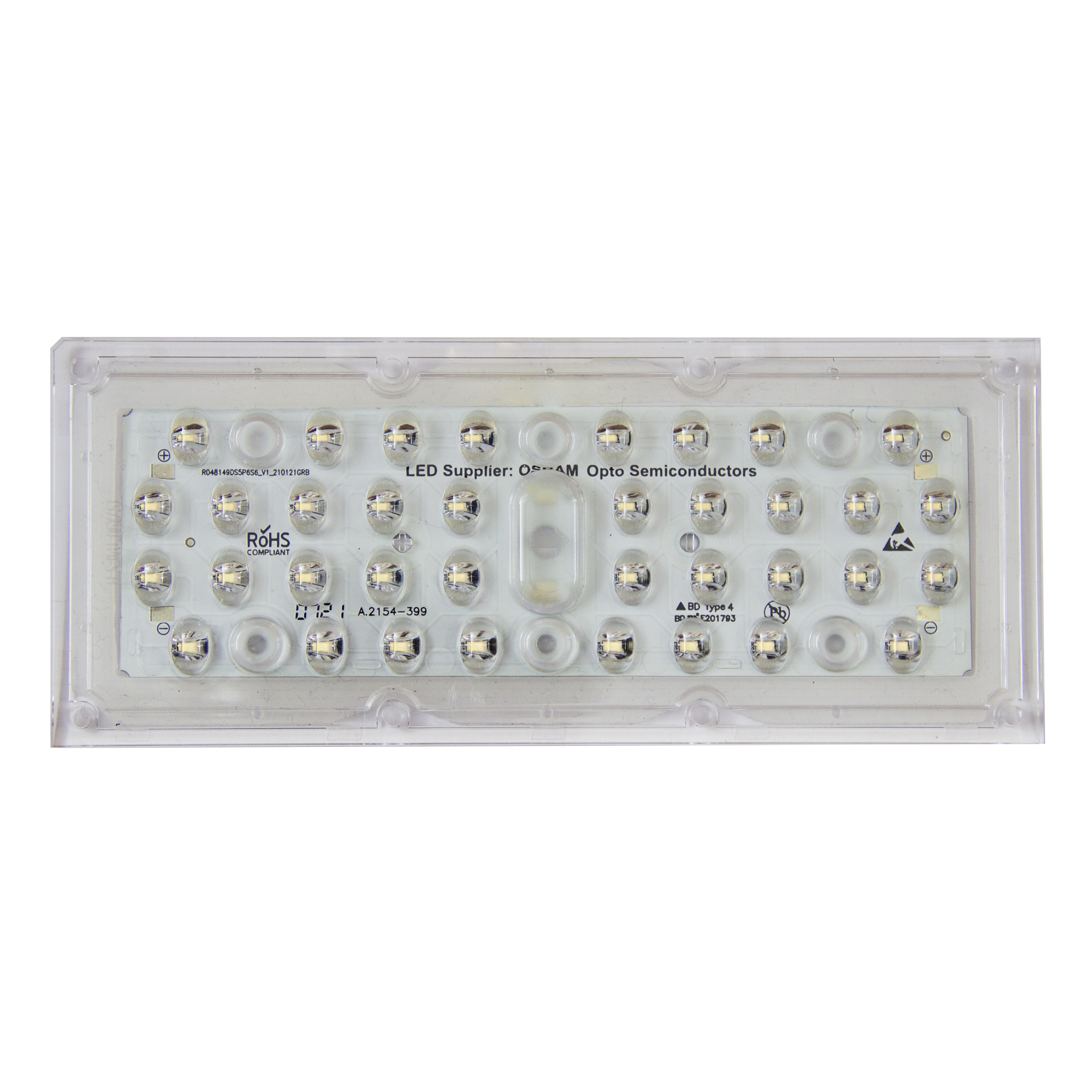

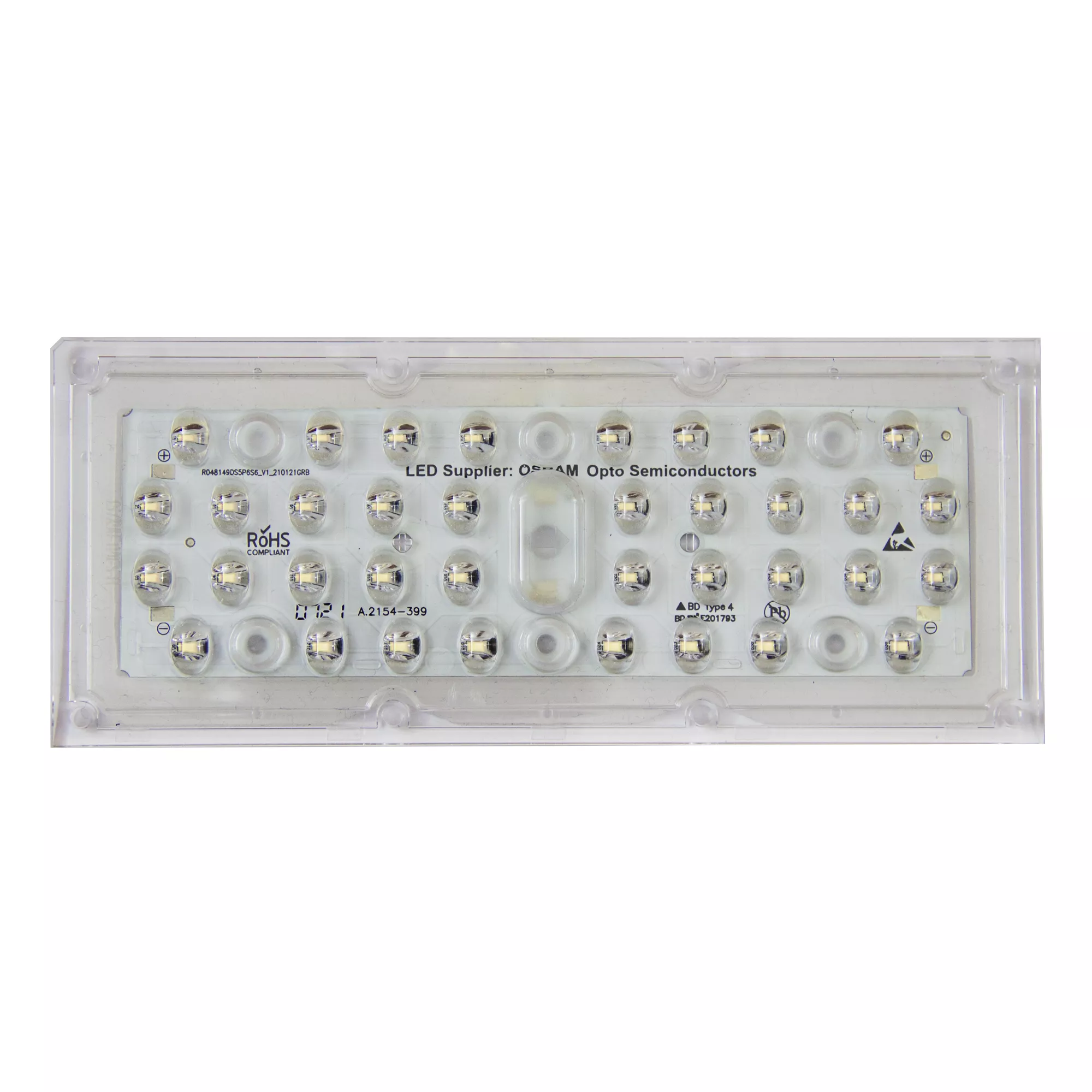

120° Homogeneous illumination with Osram Duris S5 3030 LED Chip
3 years warranty
Product Specs
| Product code | Color Temperature | Total number of LEDs | Number of Parallel Arms | Number of LEDs connected in series | Luminous flux @ ts = 25 °C (lm) | Light Axis @ ts = 45 °C (lm) | Driving Current (mA) | min. Driving Voltage @ ts = 45 °C (V) | Max. Driving Voltage @ ts = 25 °C (V) | Max. Power (W) | Colour rendering index (CRI) | ||
| Çalışma Akımı @700mA Sabit Akım | |||||||||||||
| RC-A1-149X48-DS5V1X36-30 | 3000K | 36 | 6 | 6 | 4172 | 4456 | 3909 | 4175 | 700 | 33,6 | 39,6 | 27,72 | ≥70 |
| RC-A1-149X48-DS5V1X36-40 | 4000K | 36 | 6 | 6 | 4314 | 4626 | 4042 | 4334 | 700 | 33,6 | 39,6 | 27,72 | ≥70 |
| RC-A1-149X48-DS5V1X36-65 | 6500K | 36 | 6 | 6 | 4172 | 4456 | 3909 | 4175 | 700 | 33,6 | 39,6 | 27,72 | ≥70 |
| Çalışma Akımı @1050mA Sabit Akım | |||||||||||||
| RC-A1-149X48-DS5V1X36-30 | 3000K | 36 | 6 | 6 | 6041 | 6452 | 5655 | 6040 | 1050 | 33,6 | 39,6 | 41,58 | ≥70 |
| RC-A1-149X48-DS5V1X36-40 | 4000K | 36 | 6 | 6 | 6287 | 6698 | 5886 | 6271 | 1050 | 33,6 | 39,6 | 41,58 | ≥70 |
| RC-A1-149X48-DS5V1X36-65 | 6500K | 36 | 6 | 6 | 6041 | 6452 | 5655 | 6040 | 1050 | 33,6 | 39,6 | 41,50 | ≥70 |
Not: LED modül sabit akım led driver ile kullanıma uygundur.
