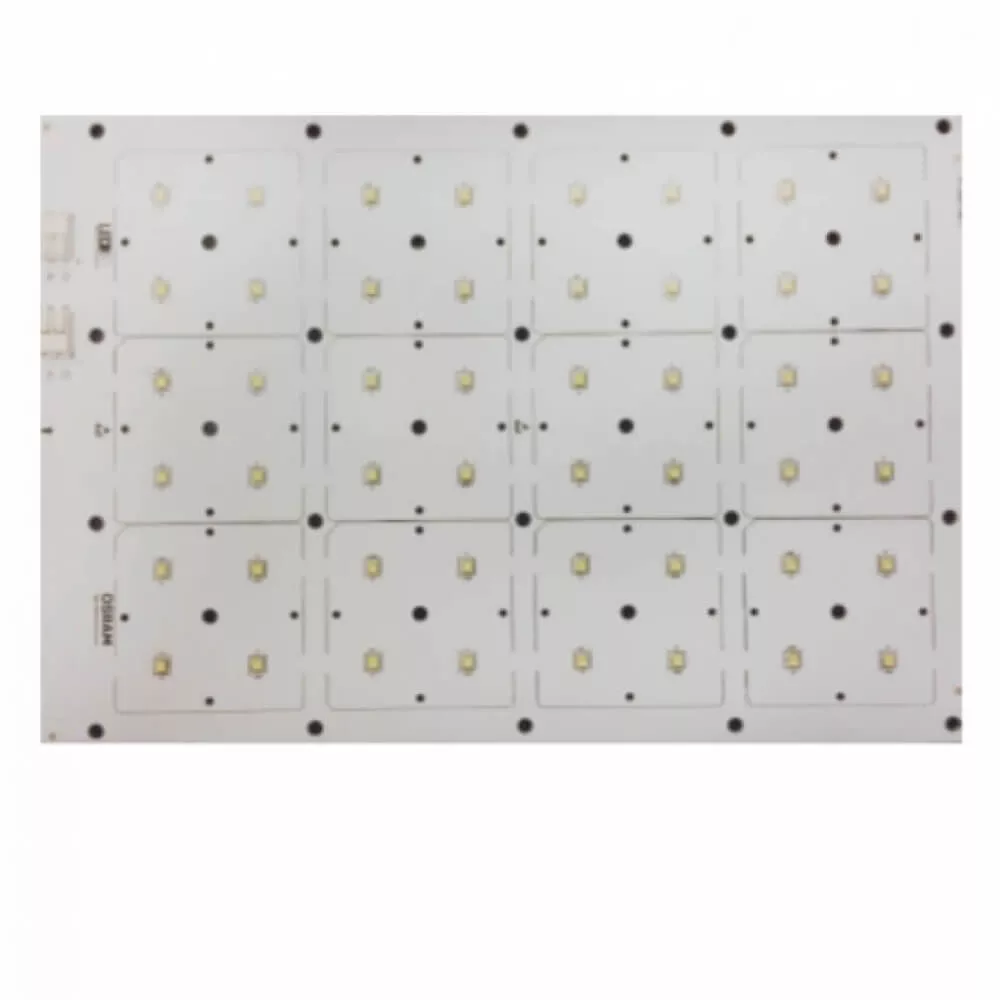

RC-A1-171X250mm-OP8X48 Led Module

Manufacturer : Sarnikon
Category : Outdoor Lighting LED Modules

Ideal for park, garden, gas station, street and tunnel lighting

Low energy consumption, high efficiency and long life

homogeneous lighting

3 years warranty

Product Specs

Product code	Color Temperature	Total number of LEDs	Number of Parallel Arms	Number of Parallel Arms	Luminous flux @ ts = 85 °C (lm)		Driving Current (mA)	min. Driving Voltage @ ts = 65 °C (V)	Max. Driving Voltage @ ts = 25 °C (V)	Max. Power (W)	Colour rendering index (CRI)
Operating mode at 350 mA
RC-A1-171X250-OP8X48-30	3000K	48	1	48	8208	8784	350	130	154	54	≥70
RC-A1-171X250-OP8X48-40	4000K	48	1	48	8784	9360	350	130	154	54	≥70
RC-A1-171X250-OP8X48-65	6500K	48	1	48	8496	9072	350	130	154	54	≥70
Operating mode at 500 mA
RC-A1-171X250-OP8X48-30	3000K	48	1	48	10260	10980	500	130	154	77	≥70
RC-A1-171X250-OP8X48-40	4000K	48	1	48	10980	11700	500	130	154	77	≥70
RC-A1-171X250-OP8X48-65	6500K	48	1	48	10620	11340	500	130	154	77	≥70
Operating mode at 700 mA
RC-A1-171X250-OP8X48-30	3000K	48	1	48	13680	14640	700	130	154	108	≥70
RC-A1-171X250-OP8X48-40	4000K	48	1	48	14640	15600	700	130	154	108	≥70
RC-A1-171X250-OP8X48-65	6500K	48	1	48	14160	15120	700	130	154	108	≥70
Operating mode at 1050 mA
RC-A1-171X250-OP8X48-30	3000K	48	1	48	17784	19032	1050	130	154	161	≥70
RC-A1-171X250-OP8X48-40	4000K	48	1	48	19032	20280	1050	130	154	161	≥70
RC-A1-171X250-OP8X48-65	6500K	48	1	48	18408	19656	1050	130	154	161	≥70
