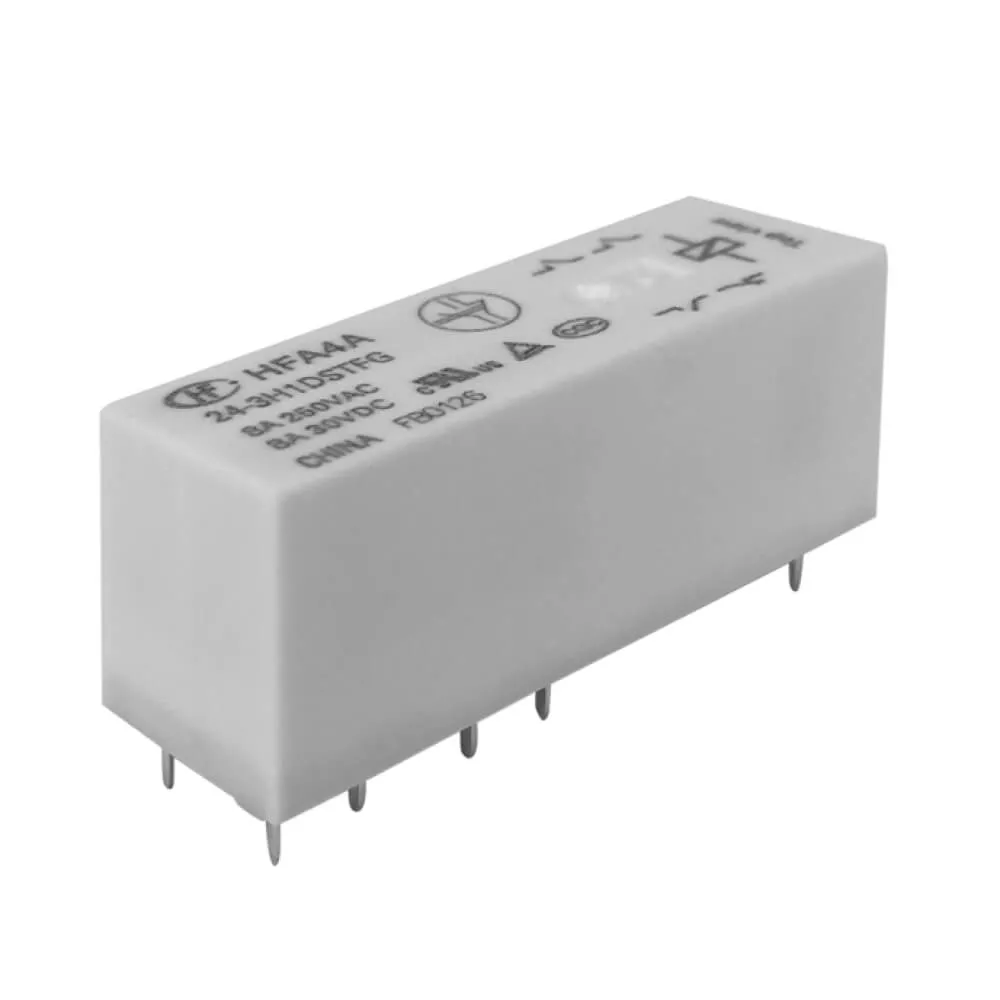

Safety Relays
Product features
- 8A Switching Capability
- 4kV Dielectric Withstand (between coil and contacts)
- UL Insulation System: Class F
- Coil voltage form: DC
- Coil Voltage: 40, 15, 12, 24, 48, 36, 5, 6, 9, 21, 85, 18, 60, 110
- Connection Arrangement: 2Form A+2Form B, 3Form A+1Form B
- Connection Version: Single Contact
- Terminal Type: PCB
- Construction: Plastic Sealed
- Coil Power: Standard(0.8W)
- Sort by: One-Sided Barn
- Connection Capacity: AgSnO2
- Connection Plated: Gold Plated
- Packing Method: Plastic Packing
- Rated Voltage (V): 250VAC
- Coil Angel Form: PCB
- Coil Power : StandardApprox. 0.8W
- Dielectric Strength (Between Coil and Contacts) (VAC 1min): 4000VAC
- 1min
- Working Time (ms): ≤20
- Release Time (ms): ≤10
- Coil Resistance（Ω):
- 5:31;6:45;9:101;12:180;15:281;18:405;21:551;24:720;36:1620;40:2000;48:2
- 880;
- 60:4500;85:9031;110:15125;
- Leakage Distance（mm): 10
- Electrical Distance（mm): 10
- Insulation Resistance（MΩ): 1000
- Max. Switching Current（AC） 8
- Max. Switching Current (DC) 8
- Max. Switching Voltage（VAC): 400
- Ambient Temperature (max)（℃): -40
- Ambient Temperature (min)（℃): +85
- Mechanical Endurance min: 10000000
- Electrical Endurance min: 80000
- Connection Space: Nil:0.8
- Product Description: Safety Relay
- Application: Tools, etc
- Weight（g): Aporox. 15
- Volume（mm³): 40×13×15.7
- Product Approval: UL,TÜV,CQC
- File No: UL:E133481;TÜV:R50489710;CQC:CQC20002278708
Producer: Hongfa
