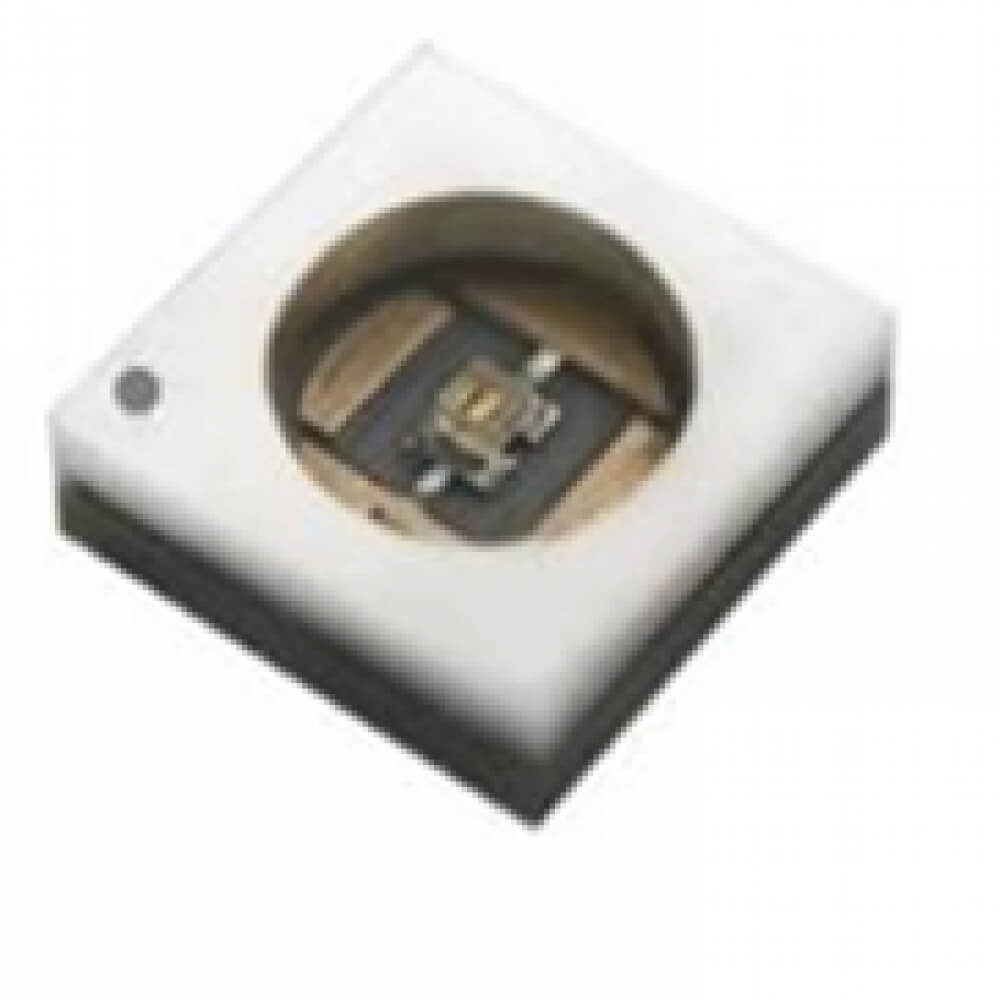

Sarvioled UV-C LED

Category : Single Led

Scope of application:

  • Air, water and surface disinfection
  • Phototherapy
  • Bio-analysis

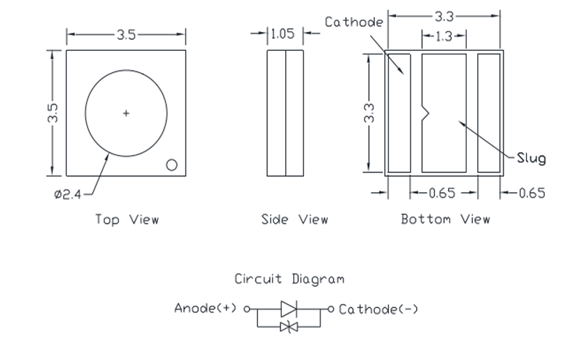

Package Size:    3.5 X 3.5 X 1.05mm
Wavelength(nm):    275nm
Angle:    120°

Product features

Product code

Flow (typ.)

Flow (max.)

Optical Power

Power consumption

Voltage

Wavelength (nm)

SAR35UV-C-265-150

100mA

150mA

10.5mW

1W

7V

275nm

Annotation

  •   No valid scientific research results for SARS-CoV-2 virus (CIE, Position Statement, 2020)
  •   The dose of UV-C required to prevent the replication of the Covid-19 virus is not yet known. Research is required for two separate applications, air and solid surfaces.

However;

  • SARS-Cov-2 virus has RNA structure like other Corona viruses. Uracil, one of the four bases that make up its RNA, provides maximum absorption between 260nm and 270nm.
  • While calculating the dose, the average dose value of 67 J/m2 of the other 9 Corona viruses is taken. However, this is not a definitive dose for SARS-CoV2.
  • In terms of anti-virus effect and health risk, the intensities and working times of UV-C radiation in applications should be controlled by sensors and automation systems integrated into the devices.
