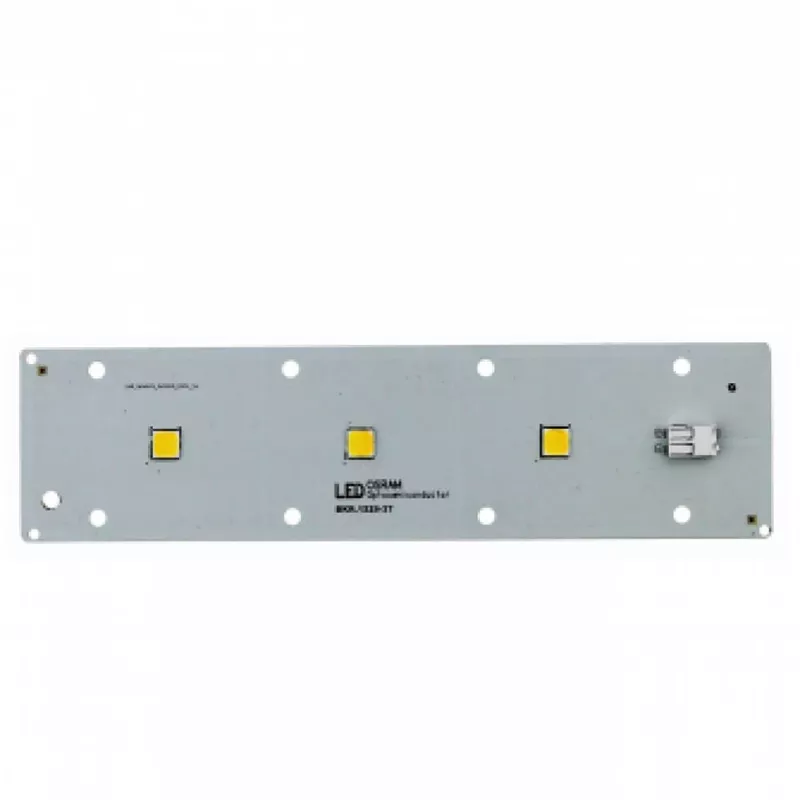

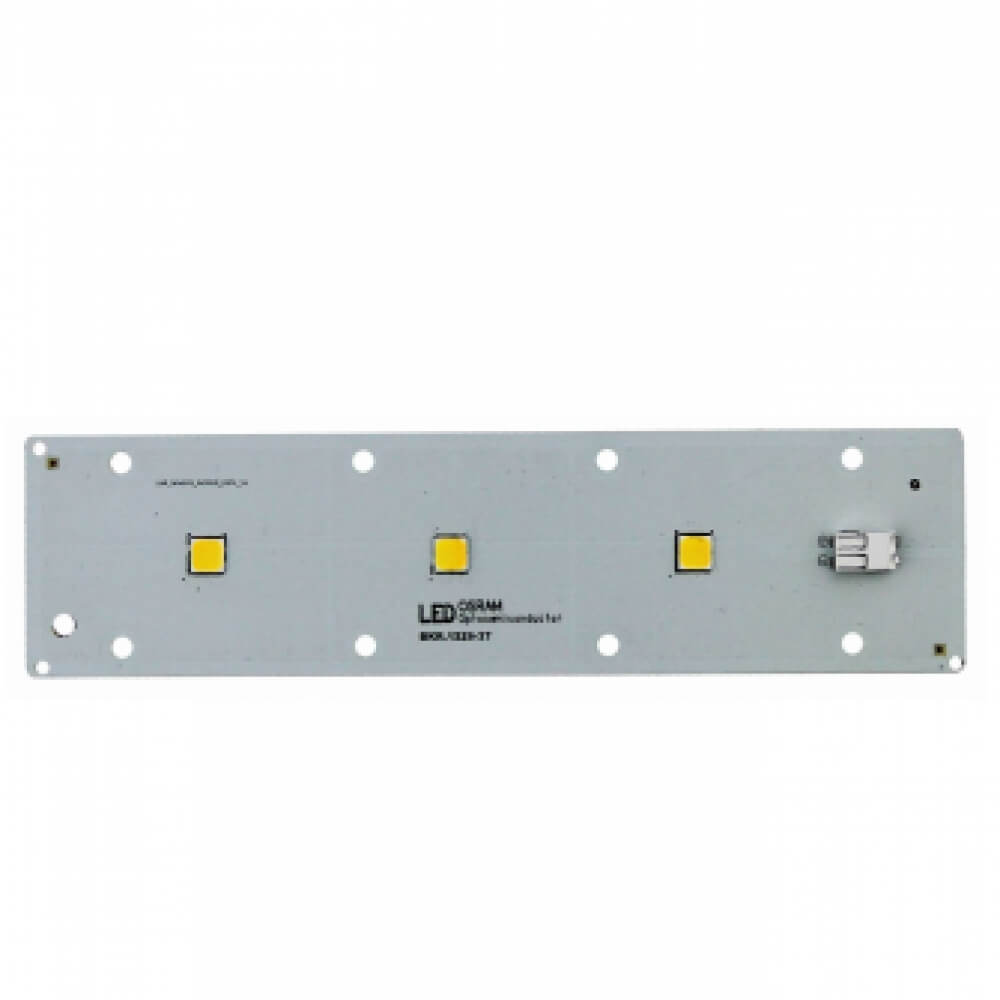

LN-A1-50X195mm-DS10X03-GAIA LED Module
Manufacturer :Sarnikon
Category :Outdoor Lighting LED Modules
Ideal for parks, gardens, gas stations, street and tunnel lighting
Low energy consumption, high efficiency and long lifetime
Homogeneous lighting
3-year warranty
Product Features
| Product code | Color Temperature | Total number of LEDs | Number of parallel branches | Number of LEDs connected in series | Luminous flux @ ts = 25 °C (lm) | Luminous flux @ ts = 65 °C (lm) | Drive Current (mA) | Min. Drive Voltage @ ts = 65 °C (V) | Max. Drive Voltage @ ts = 25 °C (V) | Max. Power (W) | Colour rendering index (CRI) | ||
| Operating mode at 1050 mA | |||||||||||||
| LN-A1-50X195-DS10X03-GAIA-30 | 3000K | 3 | 3 | 1 | 3346 | 4175 | 3112 | 3883 | 1050 | 25 | 31 | 32 | ≥80 |
| LN-A1-50X195-DS10X03-GAIA-40 | 4000K | 3 | 3 | 1 | 3346 | 4175 | 3112 | 3883 | 1050 | 25 | 31 | 32 | ≥80 |
| LN-A1-50X195-DS10X03-GAIA-65 | 6500K | 3 | 3 | 1 | 3595 | 4485 | 3343 | 4171 | 1050 | 25 | 31 | 32 | ≥80 |
| LN-A1-50X195-DS10X03-GAIA-30 | 3000K | 3 | 3 | 1 | 4485 | 5658 | 4171 | 5262 | 1050 | 35 | 41 | 43 | ≥80 |
| LN-A1-50X195-DS10X03-GAIA-40 | 4000K | 3 | 3 | 1 | 4485 | 5658 | 4171 | 5262 | 1050 | 35 | 41 | 43 | ≥80 |
| LN-A1-50X195-DS10X03-GAIA-65 | 6500K | 3 | 3 | 1 | 4830 | 6210 | 4492 | 5775 | 1050 | 35 | 41 | 43 | ≥80 |
