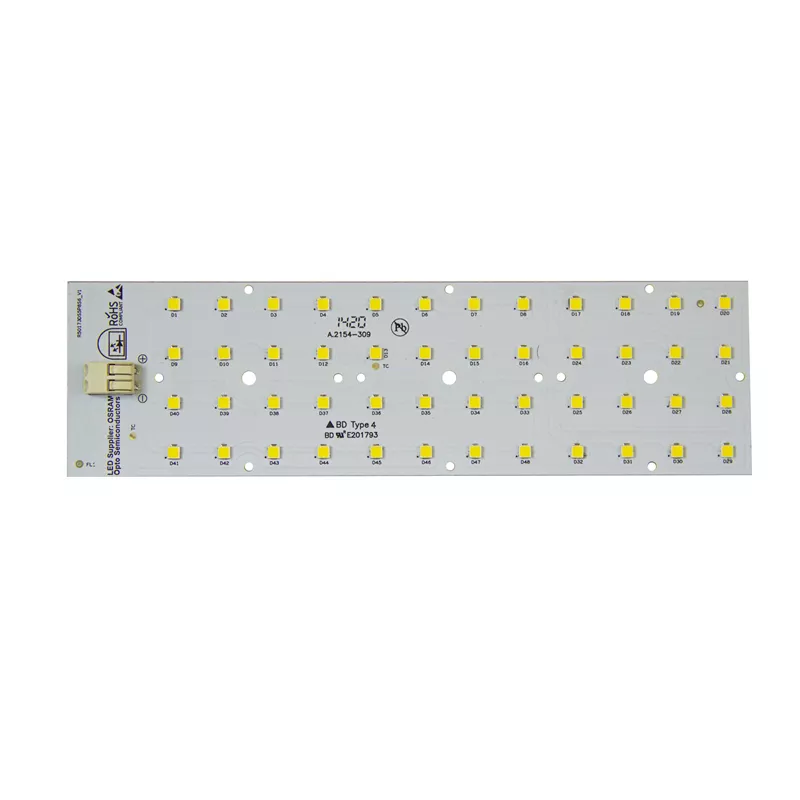

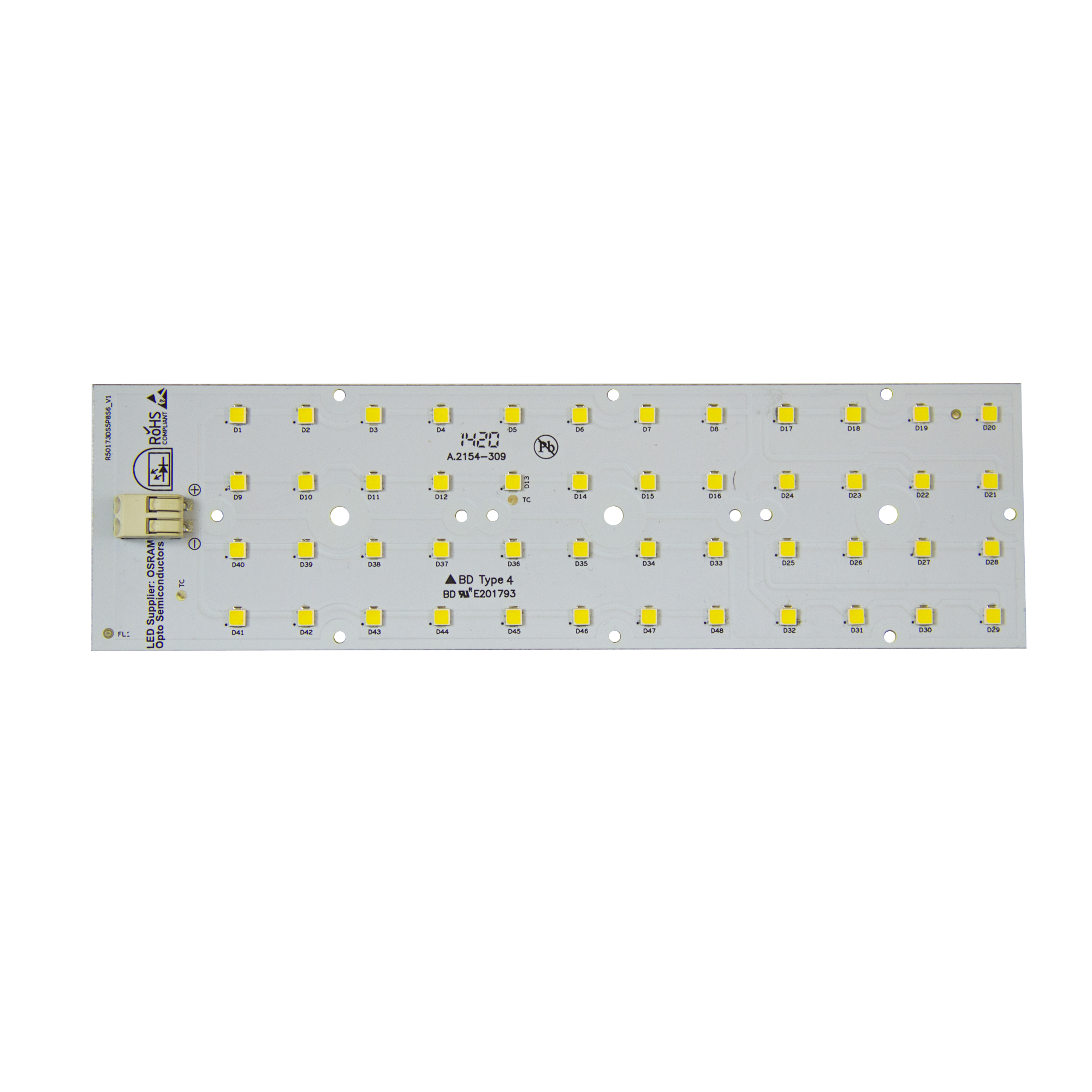

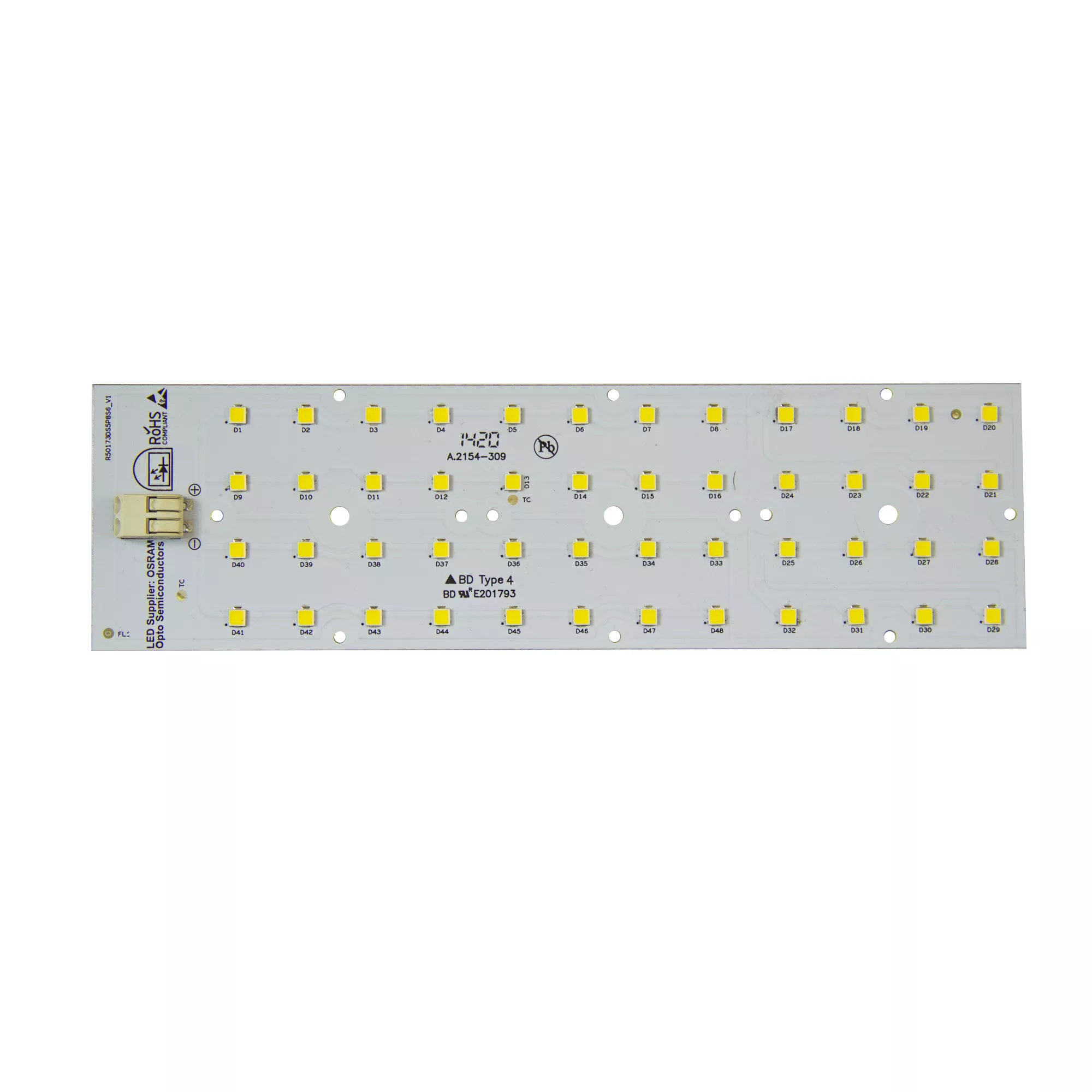

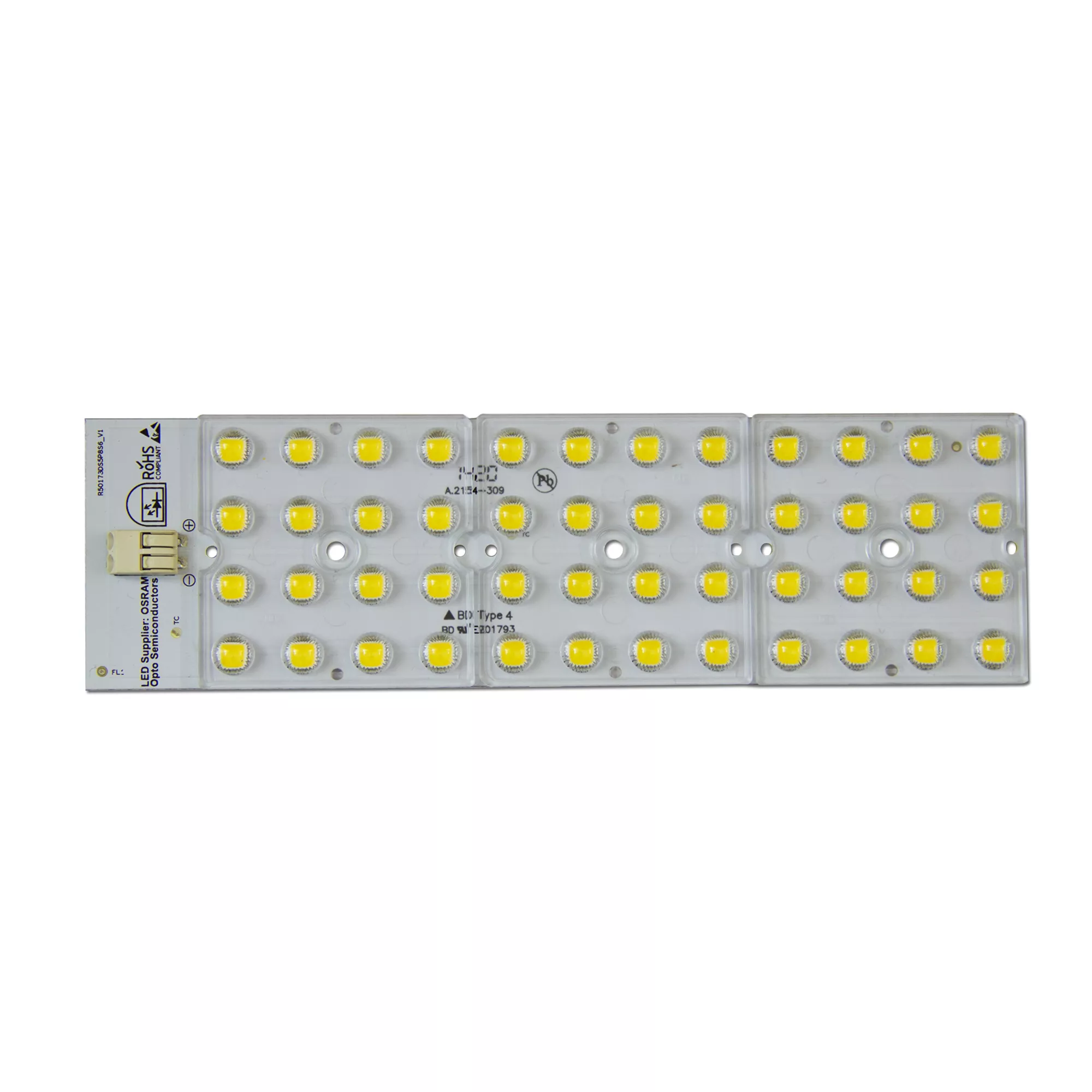

RC-A1-173X50-DS5X48
Category : Outdoor Lighting LED Modules
Suitable for linear lighting
Low energy consumption, high efficiency and long life
Integrated current source to stabilize
120° Homogeneous illumination with Osram Duris S5 3030 LED Chip
3 years warranty
Note: The LED module is suitable for use with a constant current led driver.
Product code | Color Temperature | Total number of LEDs | Number of Parallel Arms | Number of LEDs connected in series | Luminous flux @ ts = 25 °C (lm) | Light Axis @ ts = 65 °C (lm) | Driving Current (mA) | min. Driving Voltage @ ts = 65 °C (V) | Max. Driving Voltage @ ts = 25 °C (V) | Max. Power (W) | Color Rendering Index (CRI) | ||
Working Current @700mA Constant Current | |||||||||||||
RC-A1-173X50-DS5V1X48-30 | 3000K | 48 | 8 | 6 | 4263 | 4581 | 3990 | 4289 | 700 | 33,6 | 39,6 | 27,72 | ≥70 |
RC-A1-173X50-DS5V1X48-40 | 4000K | 48 | 8 | 6 | 4436 | 4726 | 4153 | 4425 | 700 | 33,6 | 39,6 | 27,72 | ≥70 |
RC-A1-173X50-DS5V1X48-65 | 6500K | 48 | 8 | 6 | 4263 | 4581 | 3990 | 4289 | 700 | 33,6 | 39,6 | 27,72 | ≥70 |
Working Current @1050mA Constant Current | |||||||||||||
RC-A1-173X50-DS5V1X48-30 | 3000K | 48 | 8 | 6 | 2486 | 2884 | 2425 | 2813 | 1050 | 33,6 | 39,6 | 41,58 | ≥70 |
RC-A1-173X50-DS5V1X48-40 | 4000K | 48 | 8 | 6 | 2586 | 3083 | 2522 | 3007 | 1050 | 33,6 | 39,6 | 41,58 | ≥70 |
RC-A1-173X50-DS5V1X48-65 | 6500K | 48 | 8 | 6 | 2586 | 3083 | 2522 | 3007 | 1050 | 33,6 | 39,6 | 41,58 | ≥70 |
Working Current @1400A Constant Current | |||||||||||||
RC-A1-173X50-DS5V1X48-30 | 3000K | 48 | 8 | 6 | 2486 | 2884 | 2425 | 2813 | 1400 | 33,6 | 39,6 | 55,44 | ≥70 |
RC-A1-173X50-DS5V1X48-40 | 4000K | 48 | 8 | 6 | 2586 | 3083 | 2522 | 3007 | 1400 | 33,6 | 39,6 | 55,44 | ≥70 |
RC-A1-173X50-DS5V1X48-65 | 6500K | 48 | 8 | 6 | 2586 | 3083 | 2522 | 3007 | 1400 | 33,6 | 39,6 | 55,44 | ≥70 |
