Product Features

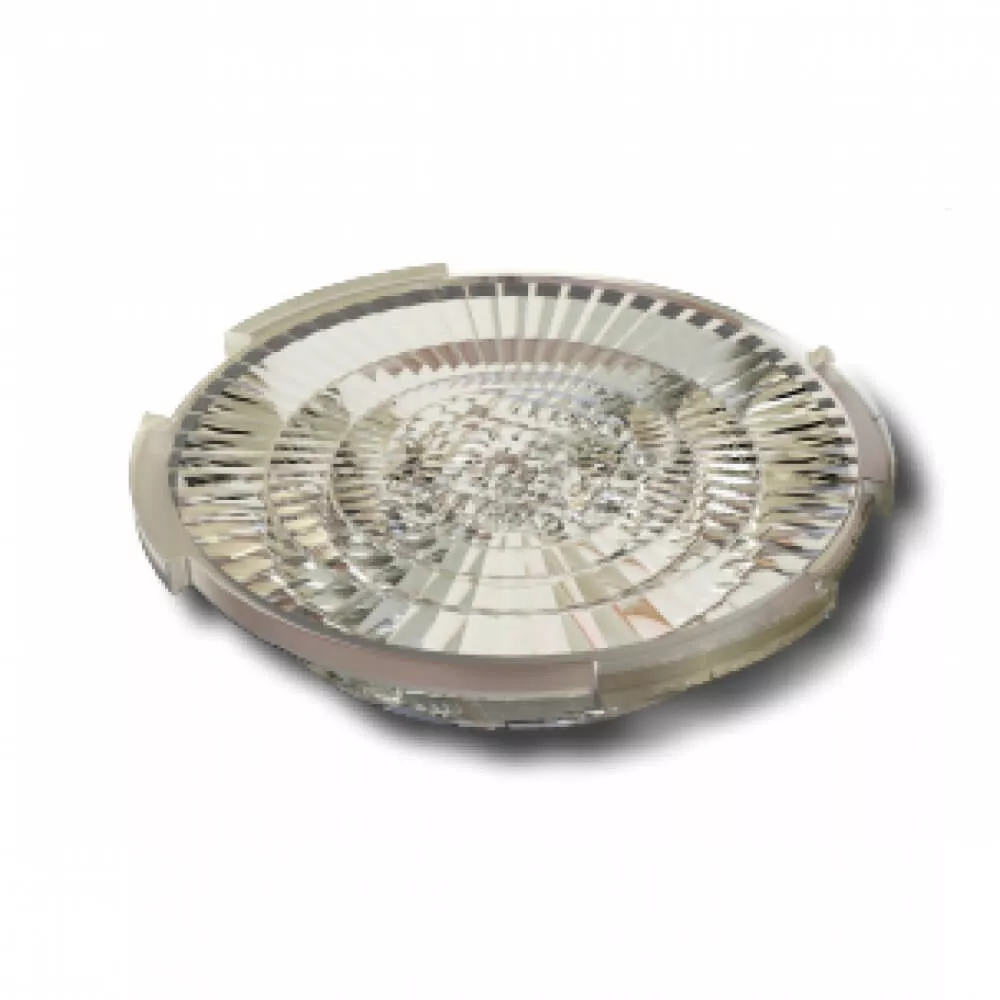

Lenses for COB LEDs – 49.98mm diameter, 10.34mm height – 12° FWHM Narrow Beam
“COSMO Lenses for COB LEDs”
Lens Material: PMMA 8N: Top -40° … 90°C

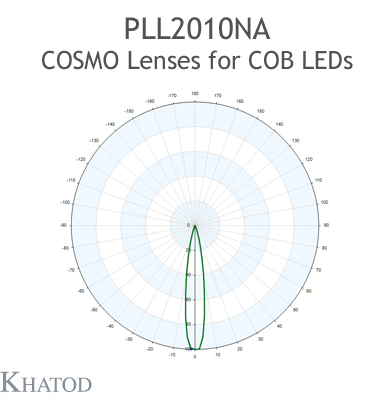

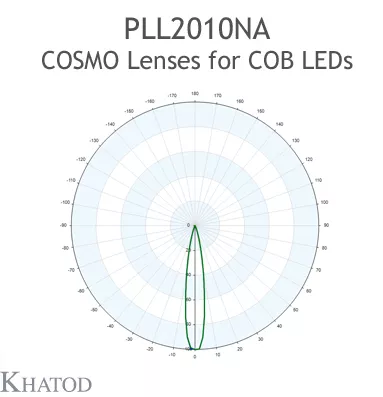

Maximum full angle at 50%: ~ 12°
Characterized on 6mm LES, works with all COBs with LES between 6mm and 10mm

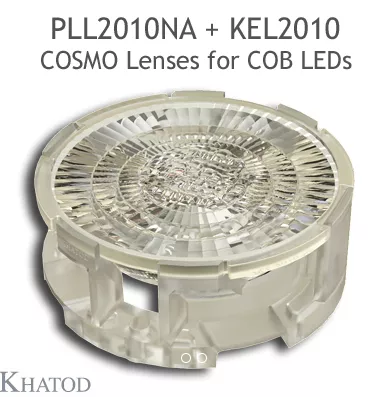

PLL2010NA is supplied without a lens holder. The holder is optional and will only be available on request under part number KEL2010 (Transparent Clear) or under part number KEL2010/01 (Black).
Application Areas:
Indoor architectural and general lighting, indoor ceiling fixtures, indoor luminaires, indoor spot lights, spot lighting and projectors, track spots
