Gaıa Lens

Manufacturer : KHATOD
Category : Gaia 1×3 Series

GAIA Optical Systems for Multichip LEDs

Module dimensions: 195.74 mm x 50.82 mm side – 7.50 mm height

IESNA Type V

• Material: PMMA HT

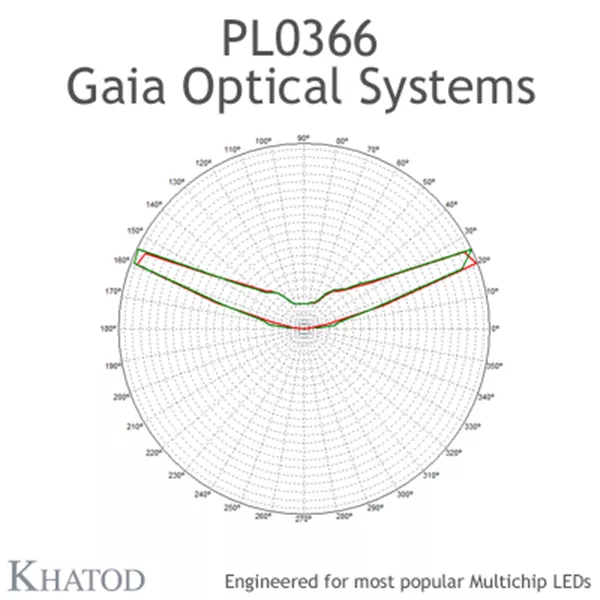

• Full angle from 50% max: ~ 145°

• Optional: On request, Silicone Gasket for IP protection available only on request under part number KGAS07.

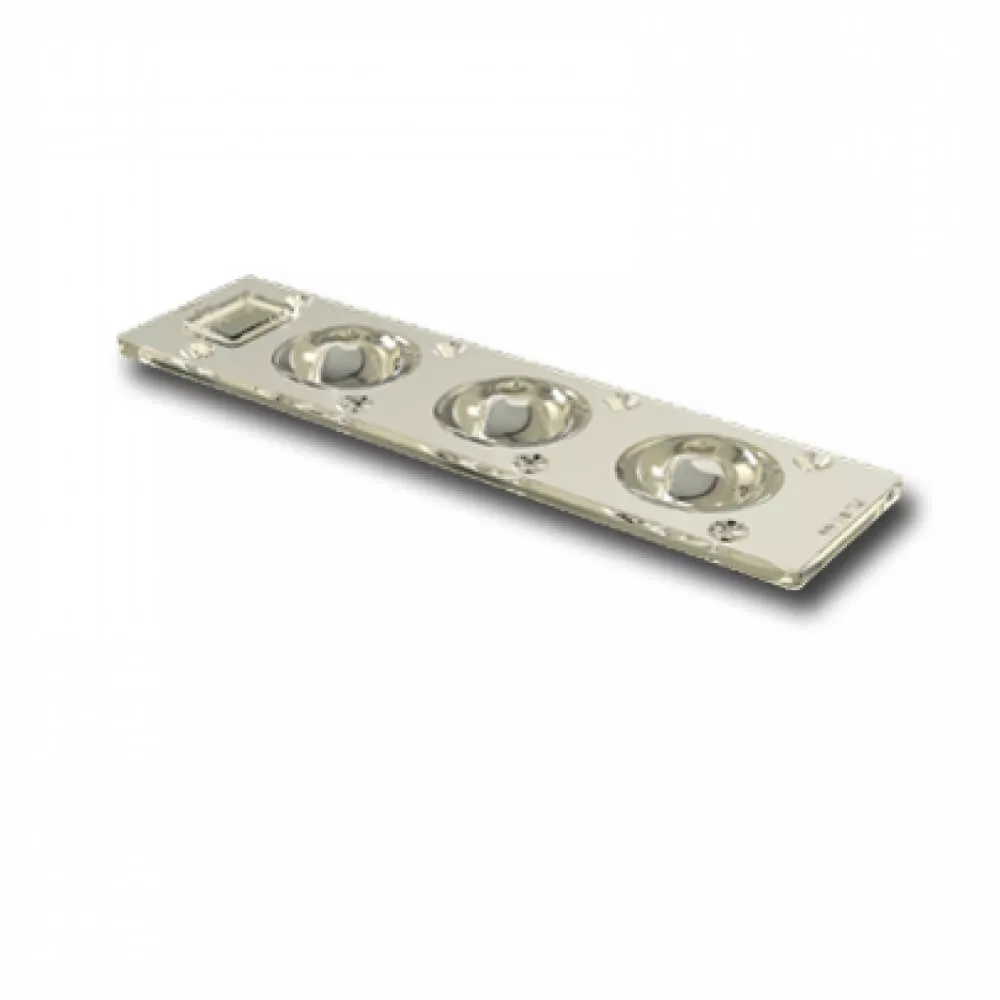

GAIA is a linear lens array made of 3 Free Form Optics that works as a true single lens.
