COSMO LENS 6 | Sarnikon

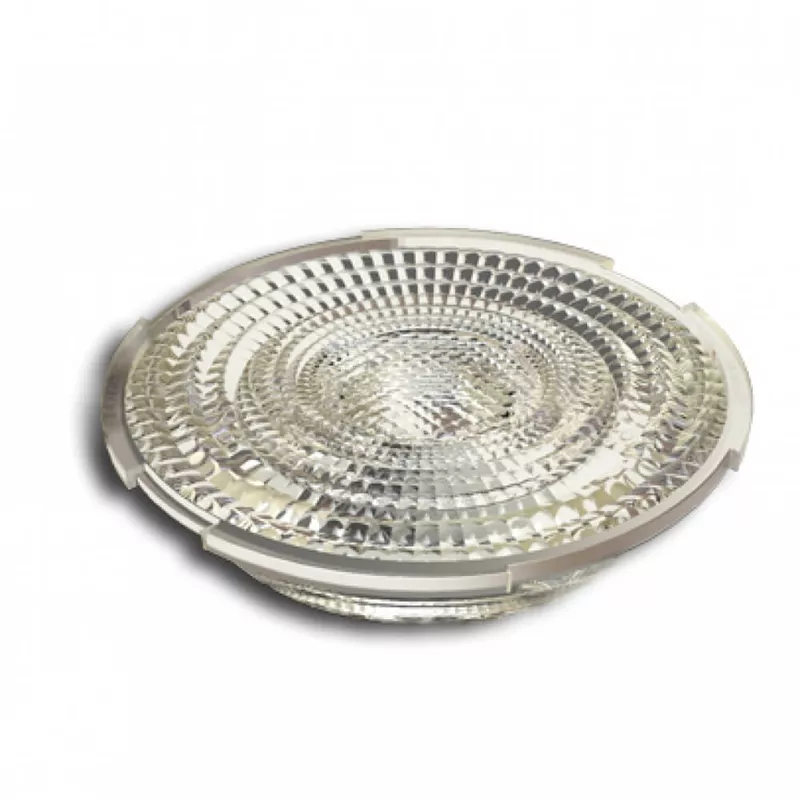

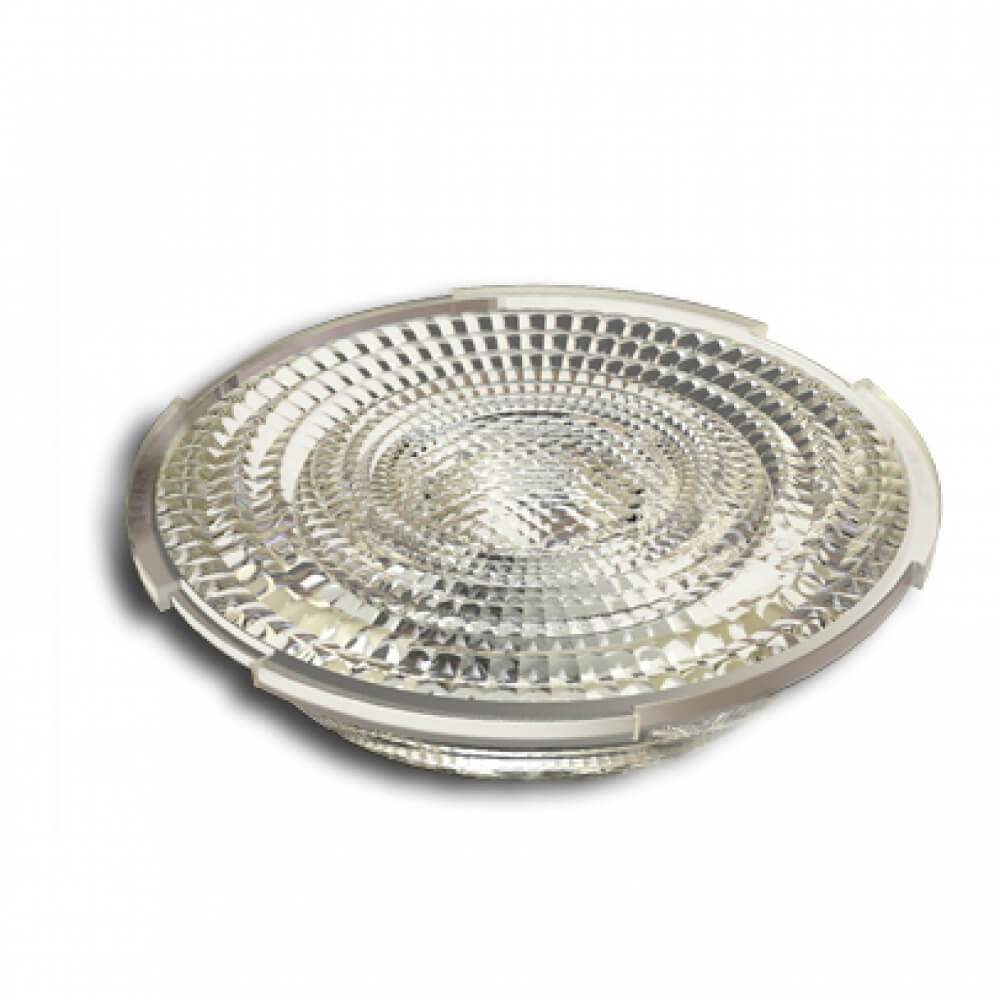

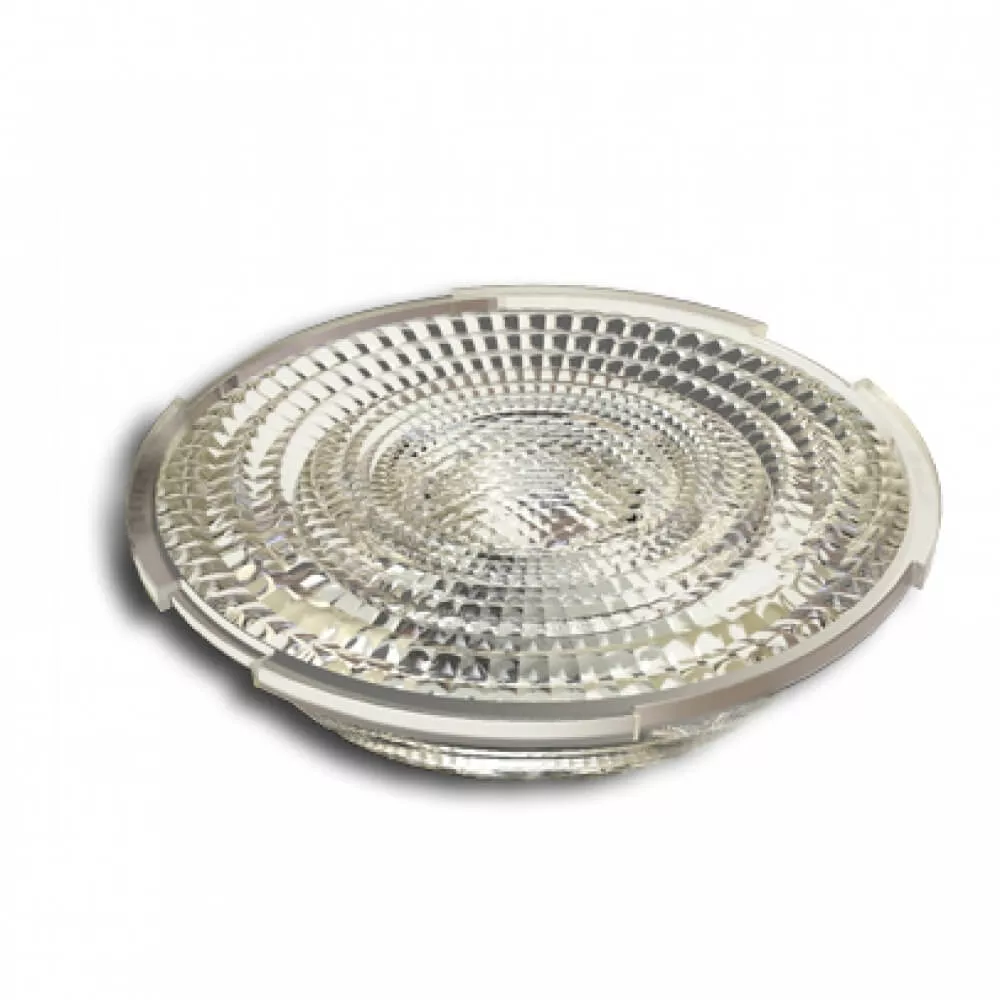

Lenses for COB LEDs – 69.86mm diameter, 14.43mm height – 35° FWHM Wide Beam

“COSMO Lenses for COB LEDs”

Lens Material: PMMA 8N: Top -40°C … 90°C

Maximum full angle at 50%: ~ 35°

Characterized on 13mm LES, works on all COBs with LES between 13mm and 15mm

PLL2009WI is supplied without a lens holder. The holder is optional and will be supplied only on request, under part number KEL2009 (Transparent Clear) or under part number KEL2009/01 (Black).
