GAIA LENS 3 | Sarnikon
Gaıa Lens
Manufacturer :KHATOD
Category :Gaia 1×3 Series

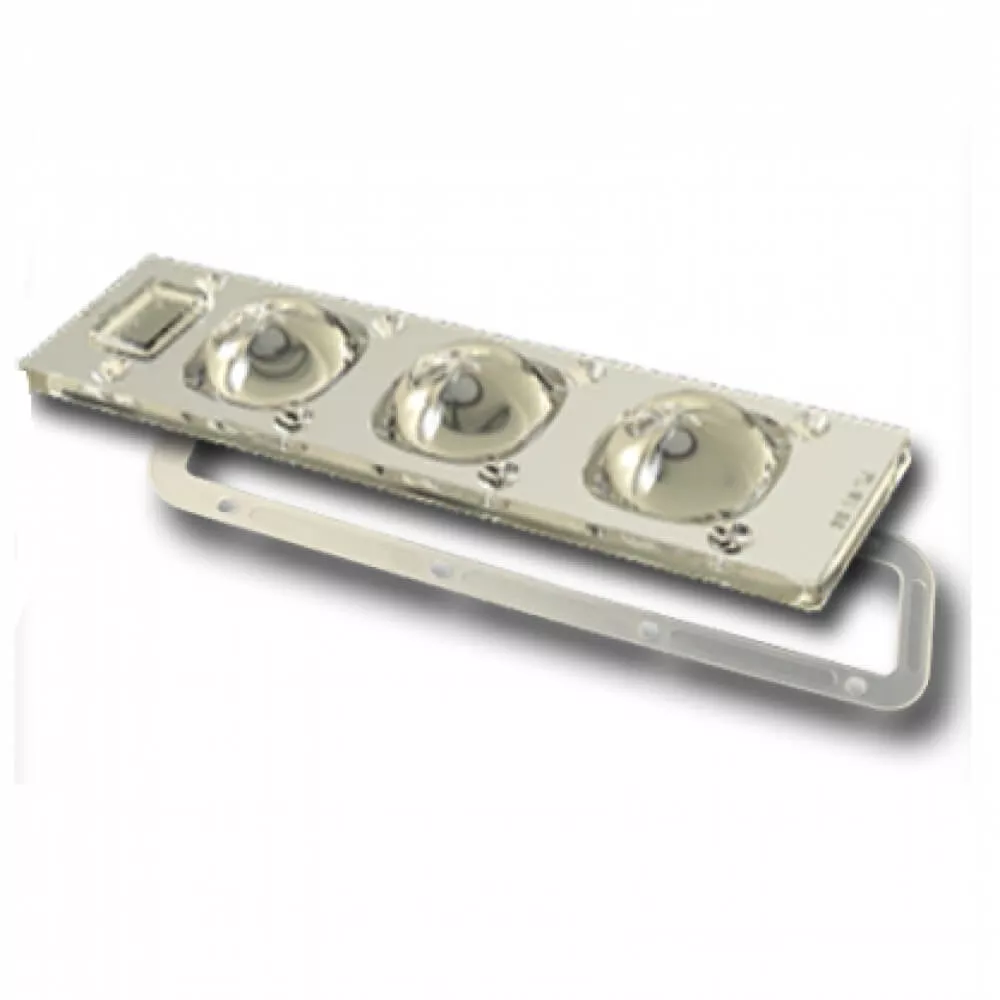

GAIA Optical Systems for multichip LEDs
Module dimensions: 195.74 mm x 50.32 mm x 15.31 mm height

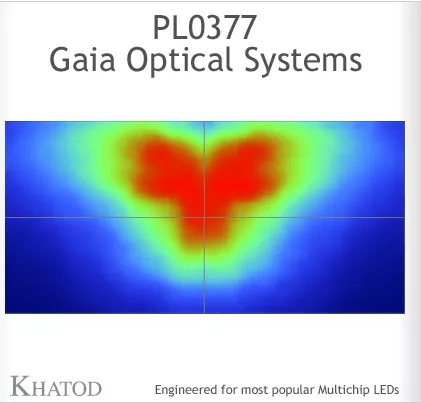

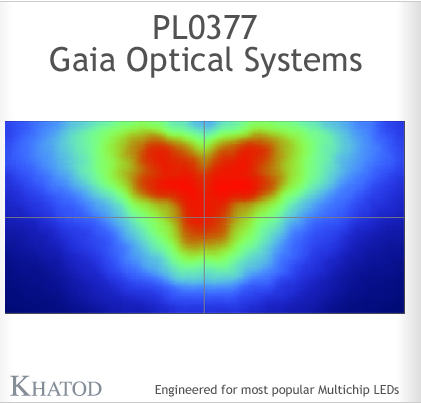

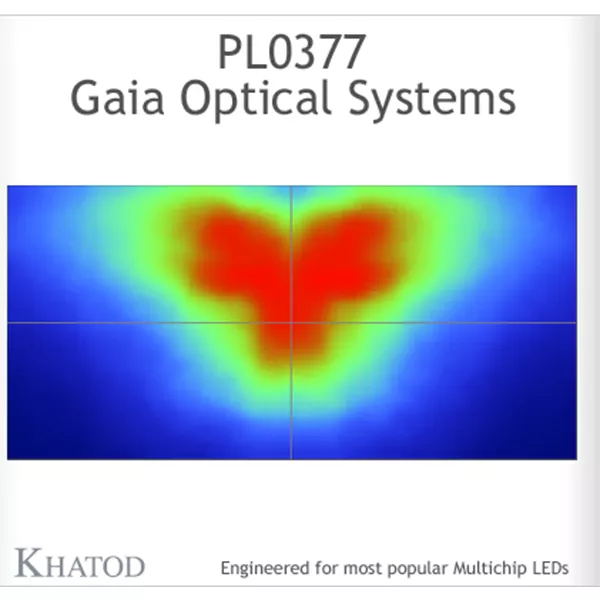

IESNA Type III
• Material: PMMA HT

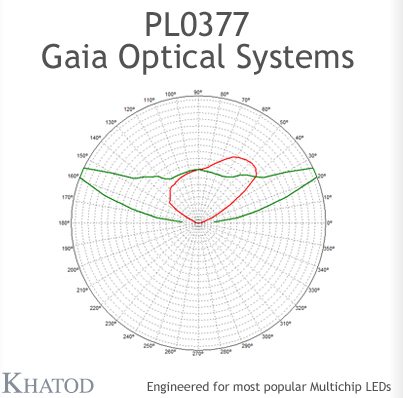

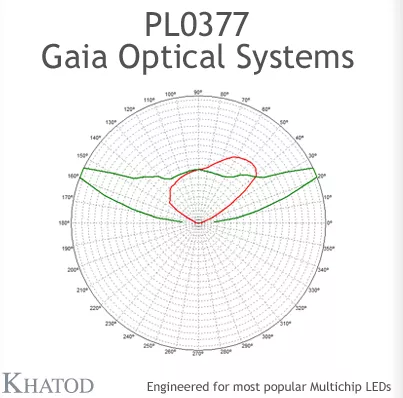

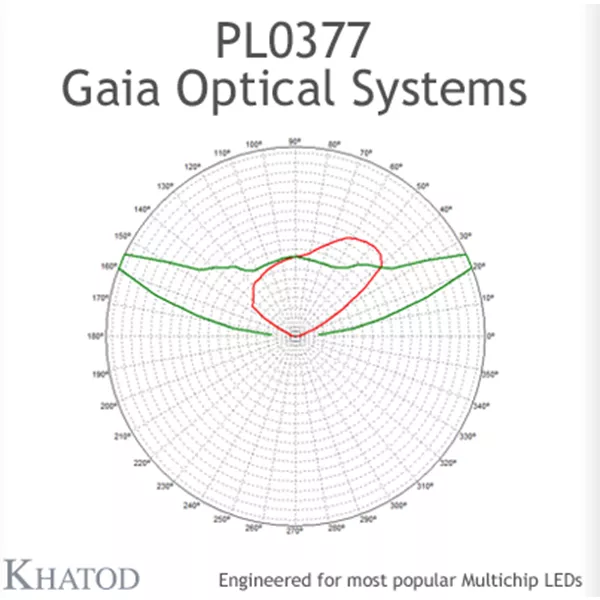

• Maximum from 50% full angle: ~ 160° x 130°
• Optional: Upon request, Silicone Gasket for IP protection will be supplied only upon request under part number KGAS07.
GAIA SYSTEMS are supplied together with a reflector device that helps to further increase the light flux from the LEDs towards the street side, which will be supplied only upon request under part number KCLP1900ST.
