ICUTRONIC IT FIT Linear (SELV/Non-SELV)
Manufacturer : OSRAM DS
Category : Constant Current Linear/Indoor/Not Dimmable
Economical and high-performance linear drivers suitable for linear interior lighting such as office lighting, shop lighting, warehouse lighting.
– Economic and Flicker-Free (Ripple<5%)
– SELV and non-SELV drivers are available.
– There are 4 different current options with dip-switch.
– 50,000 hours life
– Guaranteed for 5 Years.
Product features
| EAN | MODEL | Output Power | Output Current Range | Output Voltage Range | Power Factor (Power Factor) | Efficiency | THD | Ripple | IP Protection | Isolation | Length mm | Width mm | Height mm |
| 4052899617384 | IT FIT 18/220-240/350 CS D L | 5…18,9 | 200-250-300-350 | 25…54 | >0,95 | 87 | <15 | <5 | IP 20 | Non-SELV | 210 | 30 | 21 |

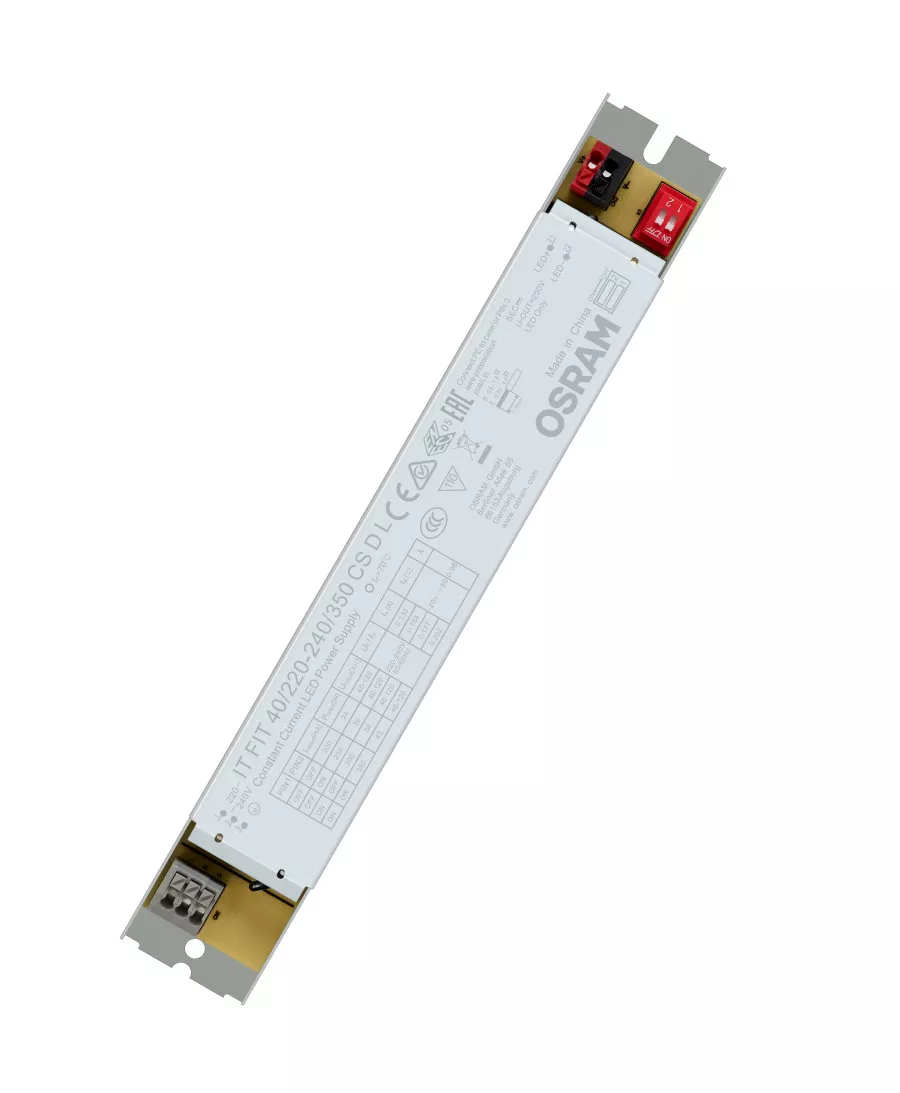

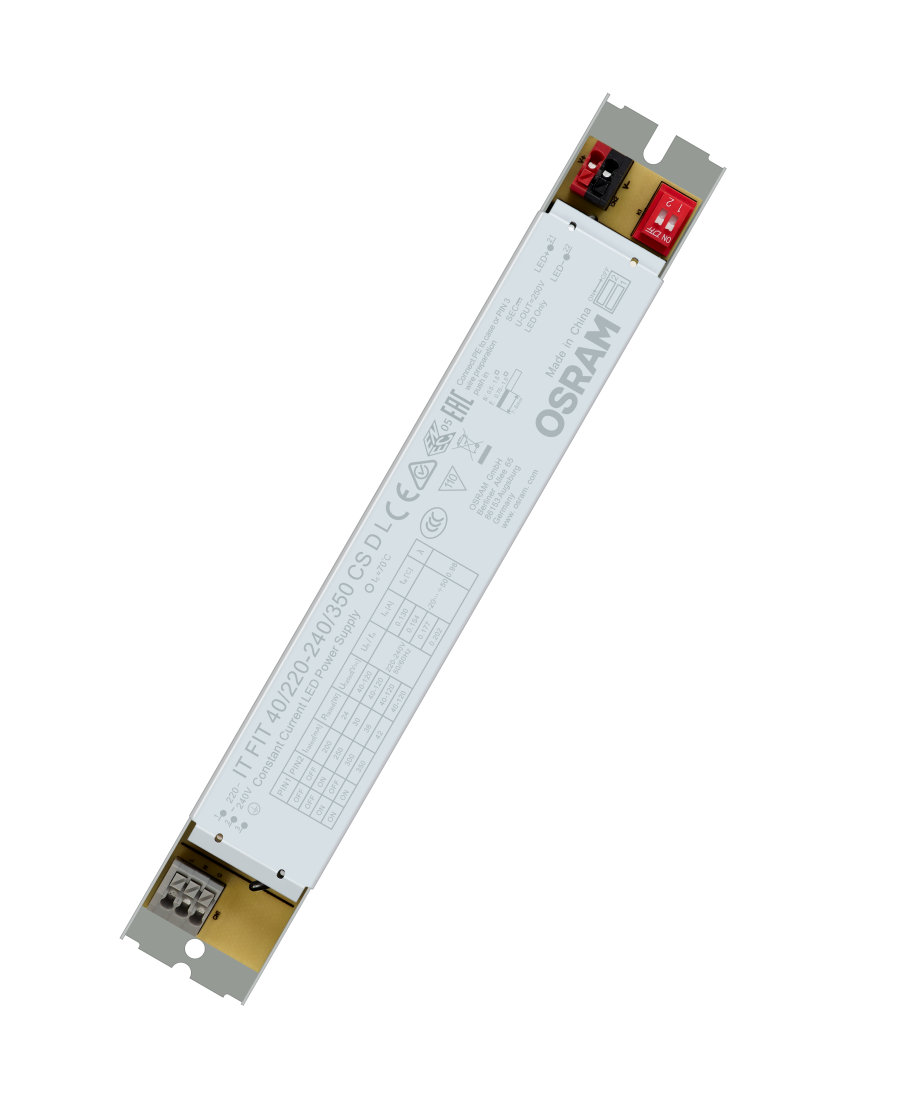

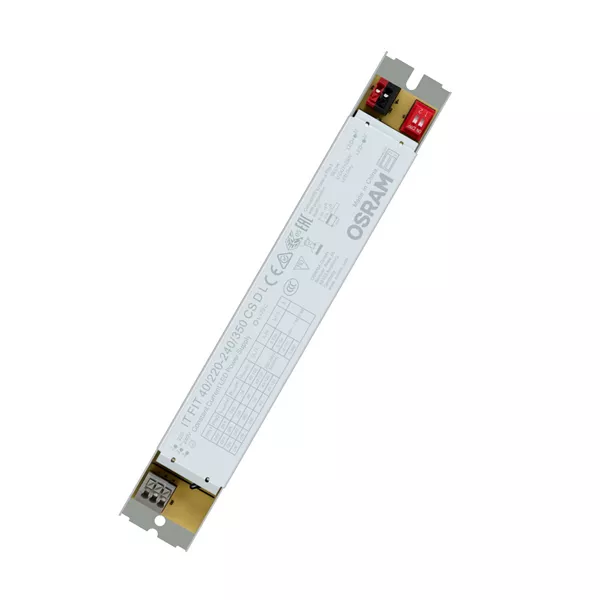

| 4052899617391 | IT FIT 40/220-240/350 CS D L | 8…42 | 200-250-300-350 | 40…120 | >0,98 | 92 | <15 | <5 | IP 20 | Non-SELV | 210 | 30 | 21 |

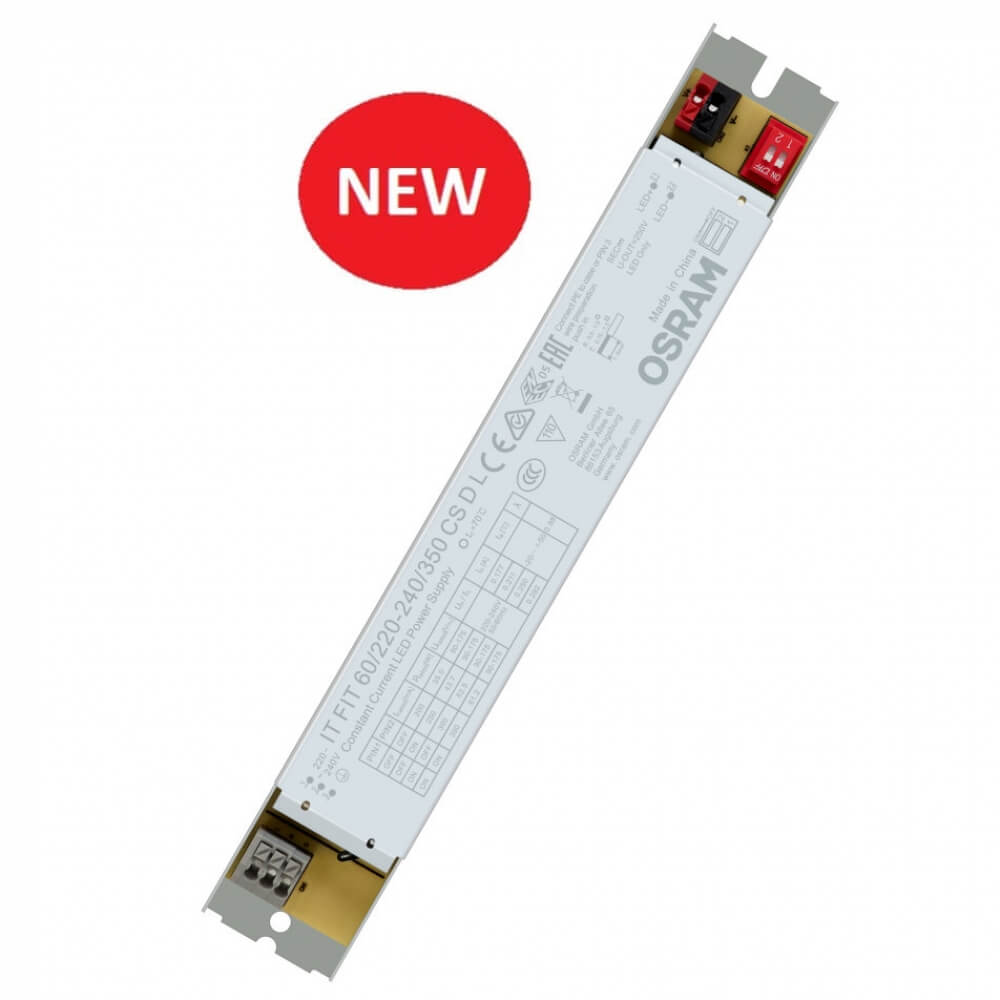

| 4052899617407 | IT FIT 60/220-240/350 CS D L | 18…61,2 | 200-250-300-350 | 90…175 | >0,98 | 93 | <15 | <5 | IP 20 | Non-SELV | 210 | 30 | 21 |
| 4052899617414 | IT FIT 75/220-240/550 CS D L | 31,5…75 | 350-400-500-550 | 90…216 | >0,98 | 93 | <15 | <5 | IP 20 | Non-SELV | 280 | 30 | 21 |

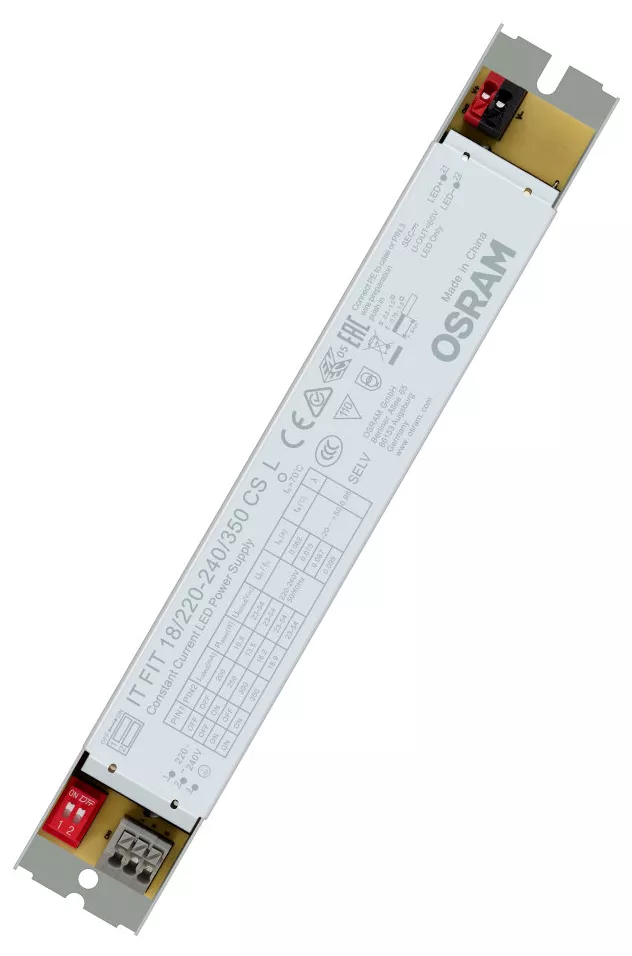

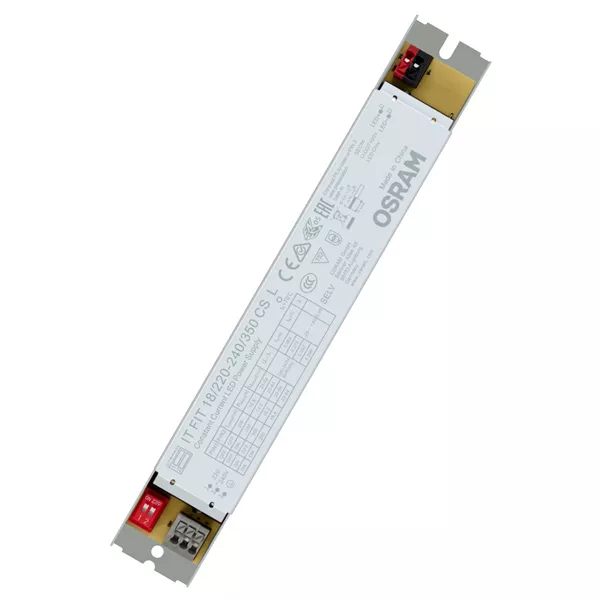

| 4052899617421 | IT FIT 18/220-240/350 CS L | 4,6…17,8 | 200-250-300-350 | 23…51 | >0,96 | 84 | <15 | <5 | IP 20 | SELV | 210 | 30 | 21 |
| 4052899617438 | IT FIT 40/220-240/800 CS L | 11,5…40,8 | 500-600-700-800 | 23…51 | >0,96 | 86 | <15 | <5 | IP 20 | SELV | 210 | 30 | 21 |
| 4052899617445 | IT FIT 60/220-240/1A2 CS L | 20,7…64,8 | 900-1050-1100-1200 | 23…54 | >0,98 | 87 | <15 | <5 | IP 20 | SELV | 210 | 30 | 21 |

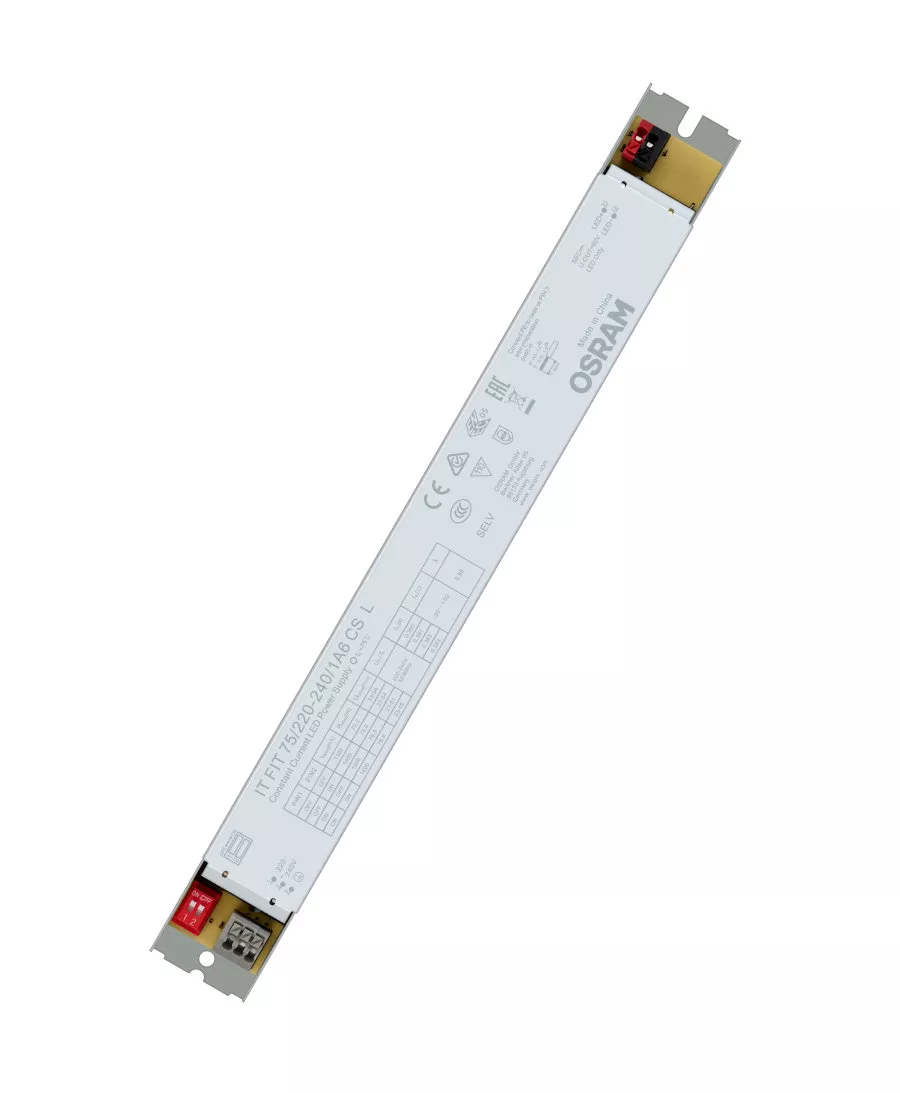

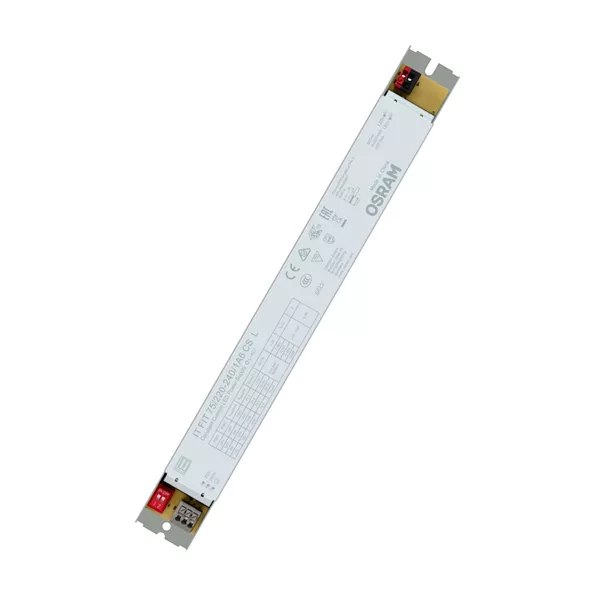

| 4052899617452 | IT FIT 75/220-240/1A6 CS L | 29,9…75,2 | 1300-1400-1500-1600 | 23…54 | >0,98 | 87 | <15 | <5 | IP 20 | SELV | 280 | 30 | 21 |
