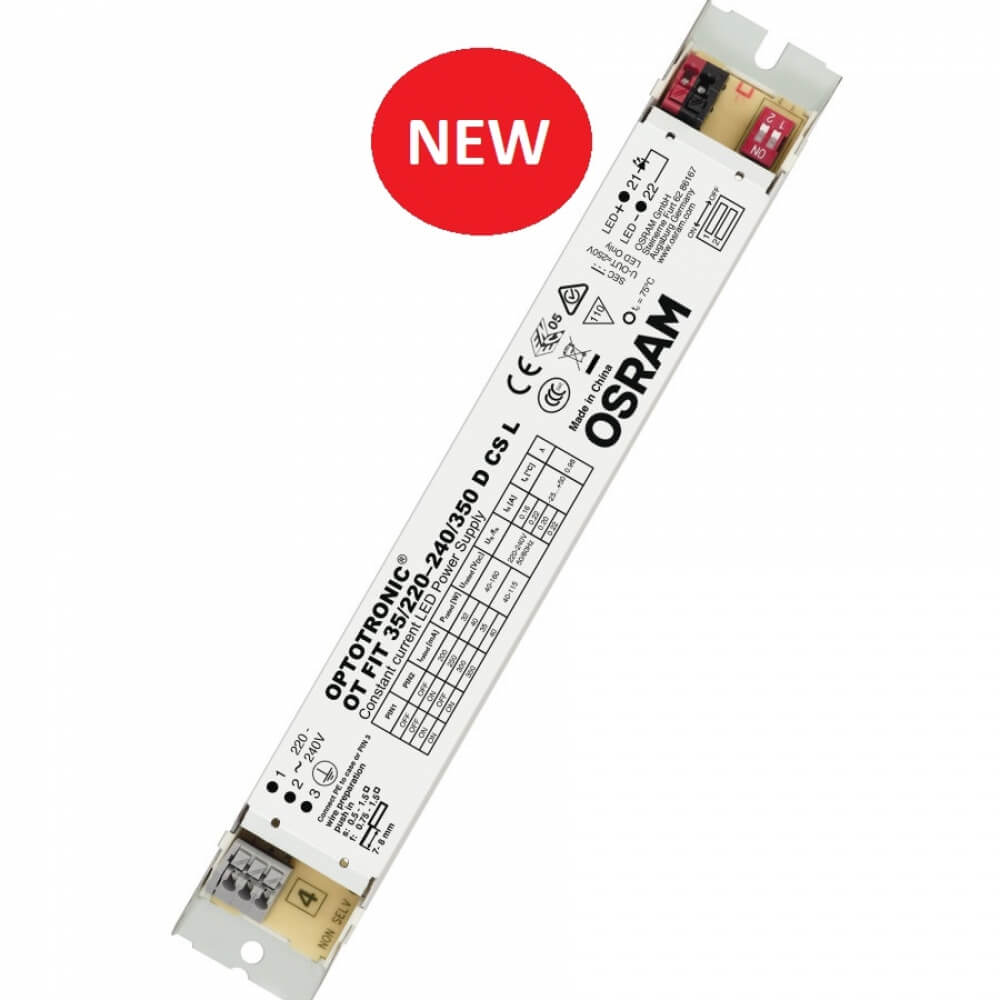

OT FIT Linear Current-Switch (non-isolated)
Manufacturer : OSRAM DS
Category : Constant Current Linear/Indoor/Not Dimmable
It is a more flexible design with its adjustable feature with dip switch. It has flicker-free feature and high efficiency with its minimized linear casing. It is non-selv.
Compatible with Class I and Class II Luminaires.
It is guaranteed for 5 years.
Product Features
| Product Code | Product Name | Output Power | Output Current Range | Output Voltage Range | Power Factor | Efficiency | THD | Ripple | IP Protection | Length mm | Width mm | Height mm |
| 4052899531437 | OT FIT 35/220-240/350 D CS L | 8 – 40,3W | 200-250-300-350 mA | 40 – 160Vdc | 0,98 | 91 | <10 | <5 | IP 20 | 210 | 30 | 21 |
| 4052899531451 | OT FIT 65/220-240/350 D CS L | 16 – 66,5W | 200-250-300-350 mA | 70 – 220Vdc | 0,98 | 93 | <10 | <5 | IP 20 | 210 | 30 | 21 |
| 4062172006323 | OT FIT 75/220-240/350 D CS L | 14 – 77W | 200-250-300-350 mA | 70 – 220Vdc | 0,98 | 93 | <10 | <5 | IP 20 | 210 | 30 | 21 |
