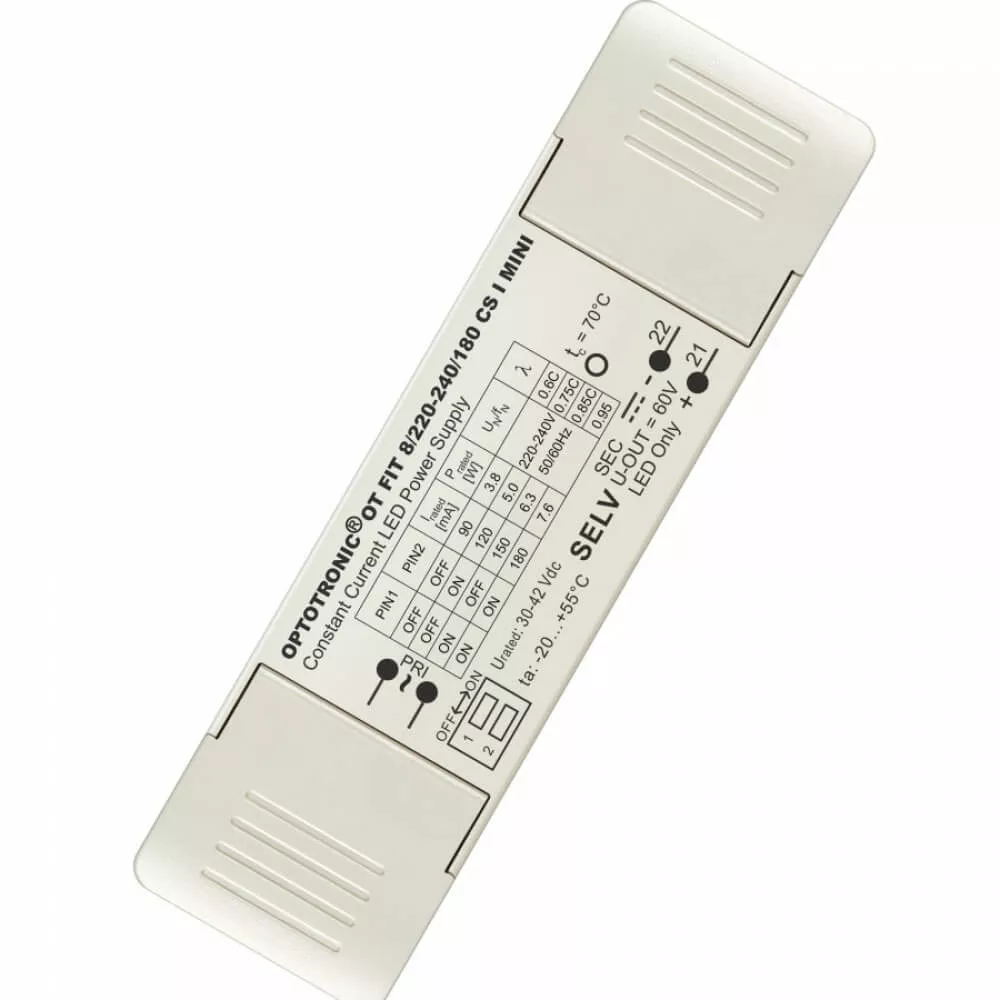

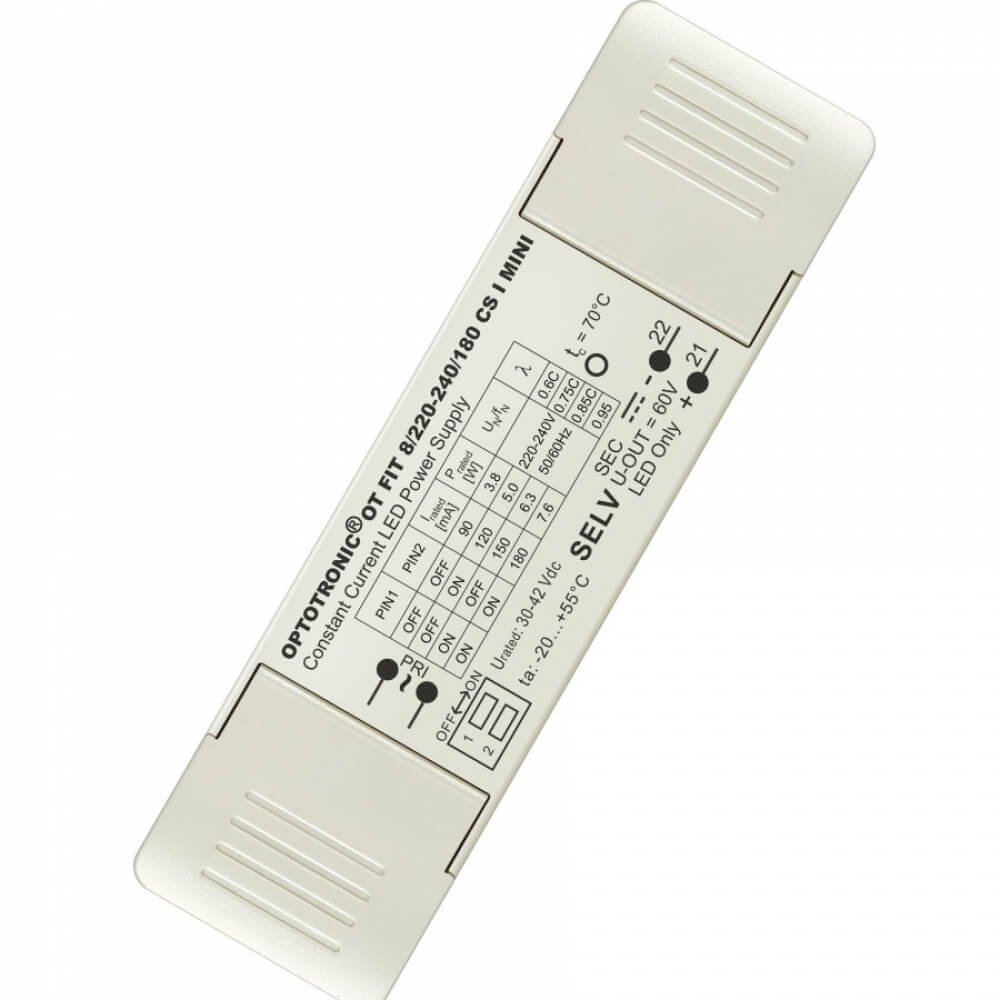

OT FIT CS MINI (SELV)

Manufacturer : OSRAM DS
Category : Constant Current Compact/Indoor/Non-Dimmable

Thanks to its small structure, it is flexible in terms of suitability for luminaires of different sizes.
– Flicker-free (Ripple <3%)
– Dip-switch (adjustable to 4 different output currents)
– Ideal for extra small downlights, spotlights and interior lighting fixtures.
– Suitable for Class I and Class II luminaires.
It is guaranteed for 5 years.

Product Features

Item Code	Product Name	Output Power	Output Current Range	Output Voltage Range	Power Factor	Efficiency	THD	Ripple	IP Protection	Length mm	Width mm	Height mm
4052899587946	OT FIT 8/220-240/180 CS I MINI	2,7…100	90-120-150-180	30…42	0,95	86	<15	<3	IP 20	104	30	26
4052899587922	OT FIT 8/220-240/180 CS S MINI	2,7…100	90-120-150-180	30…42	0,95	86	<15	<3	IP 20	87	30	20
4062172013406	OT FIT 15/220-240/350 CS S MINI	6,7…100	225-250-325-350	30…42	0,95	88	<10	<3	IP 20	87	30	20
4052899587960	OT FIT 20/220-240/500 CS S MINI	12…100	400-450-475-500	30…42	0,95	89	<10	<3	IP 20	87	30	20
4062172013420	OT FIT 30/220-240/700 CS S MINI	17…100	550-600-650-700	30…42	0,95	89	<10	<3	IP 20	87	30	20
4052899587984	OT FIT 38/220-240/900 CS S MINI	27…100	800-850-875-900	30…42	0,95	90	<10	<3	IP 20	87	30	20
