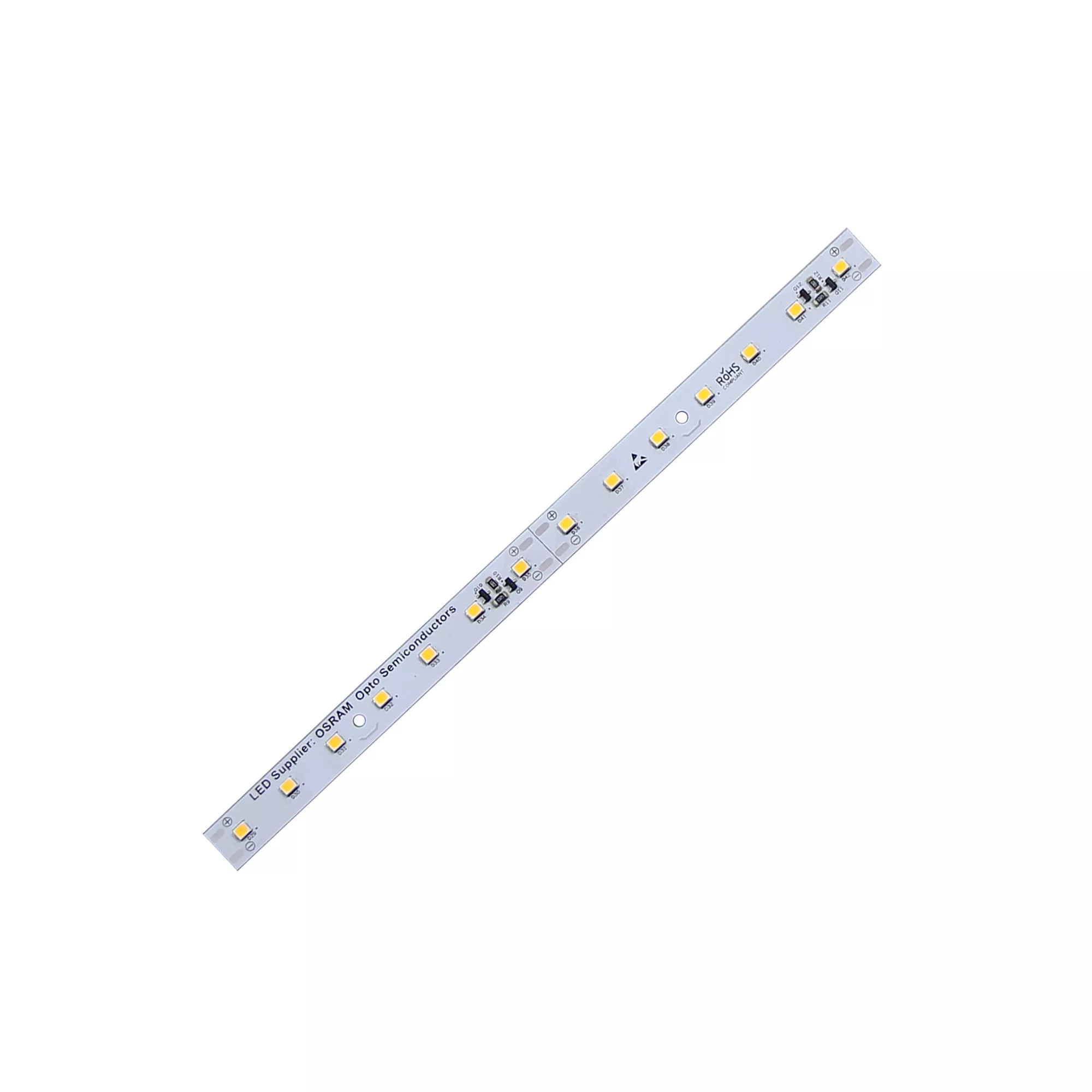

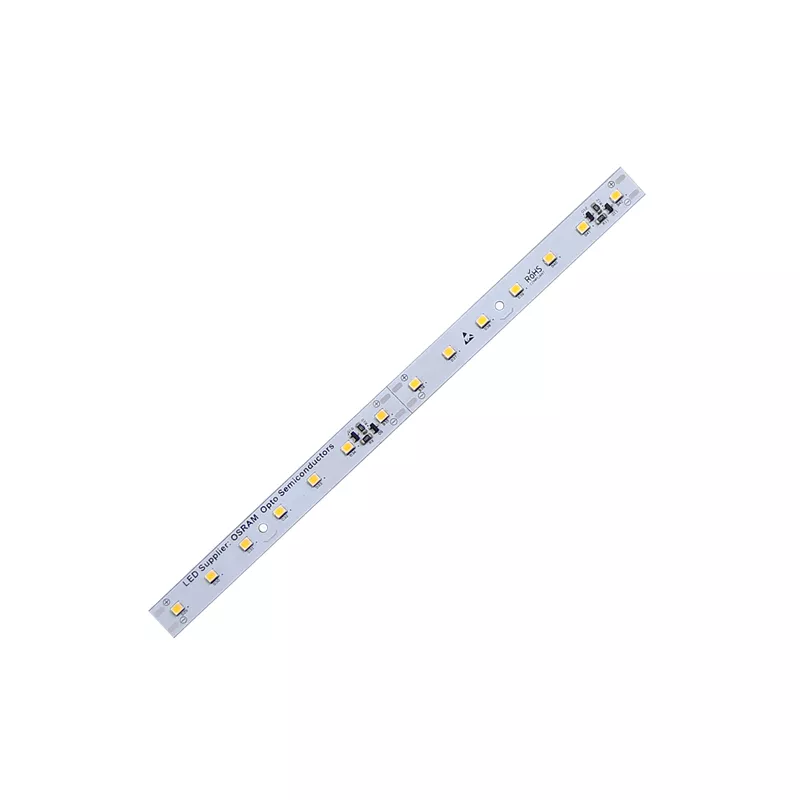

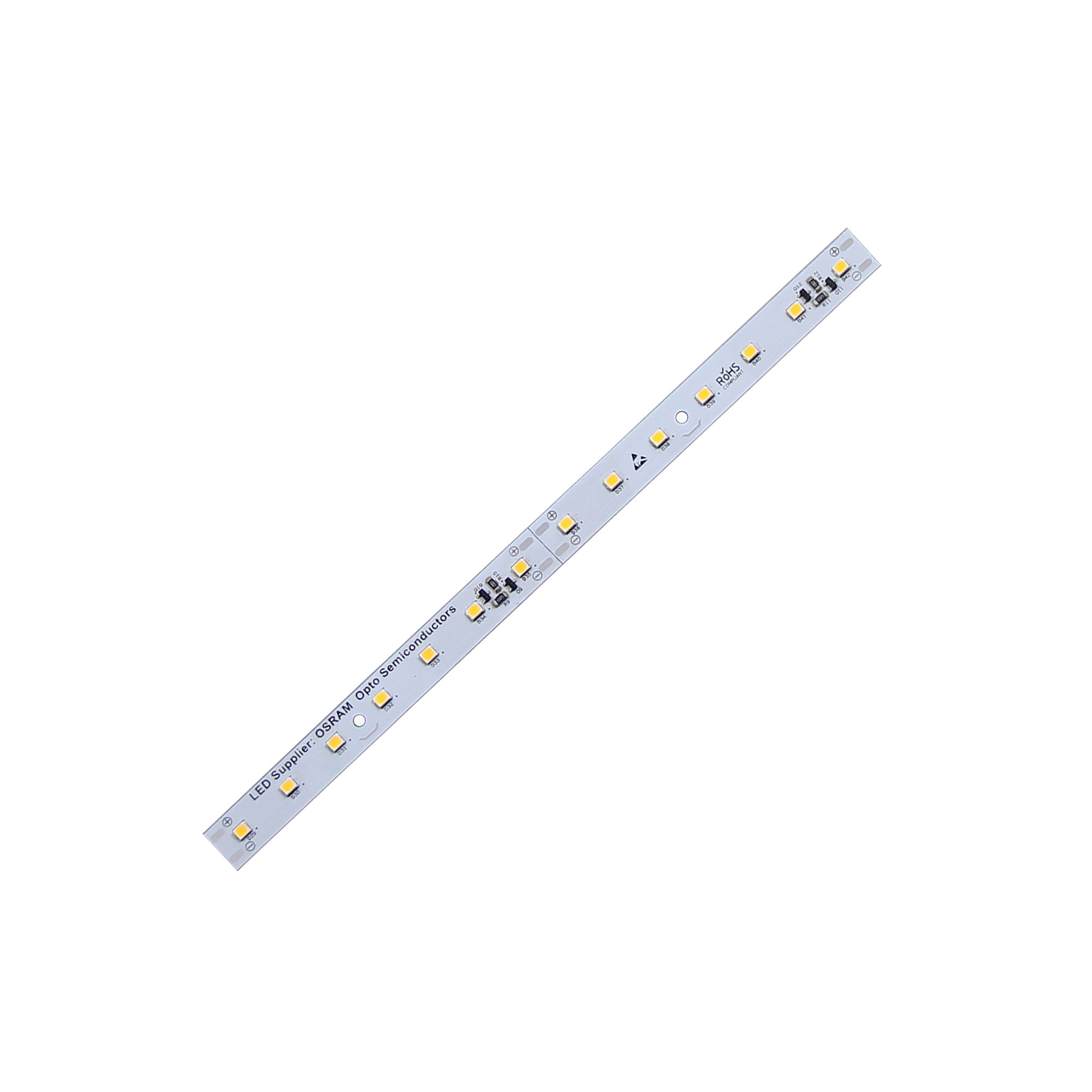

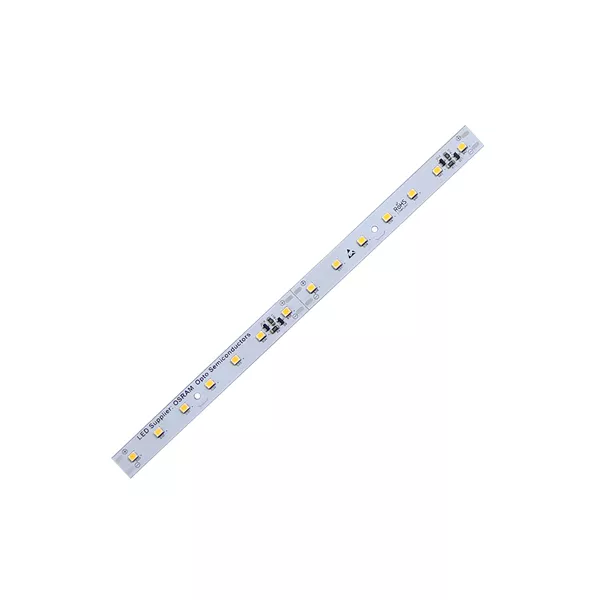

LN-A1-12X1000mm-D28X70 Led Module
Manufacturer : Sarnikon
Category : Indoor Lighting LED Modules
- Ideal for linear applications and concealed lighting
- Low energy, high efficiency and long life constant current source
- Homogeneous lighting
- The product length is 1m.
- 3 years warranty
Product features
Product code | Color Temperature | Total number of LEDs | Number of Parallel Arms | Number of LEDs connected in series | Luminous flux @ ts = 25 °C (lm) | Light Axis @ ts = 45 °C (lm) | Drive Voltage (V) | Max. Power (W) | Colour rendering index (CRI) | ||
Operating mode at 24V | |||||||||||
LN-A1-12X1000-D28X70-30 | 3000K | 70 | 10 | 7 | 2548 | 2940 | 2370 | 2734 | 24 | 21,60 | ≥80 |
LN-A1-12X1000-D28X70-40 | 4000K | 70 | 10 | 7 | 2548 | 2940 | 2370 | 2734 | 24 | 21,60 | ≥80 |
LN-A1-12X1000-D28X70-65 | 6500K | 70 | 10 | 7 | 2548 | 2940 | 2370 | 2734 | 24 | 21,60 | ≥80 |
