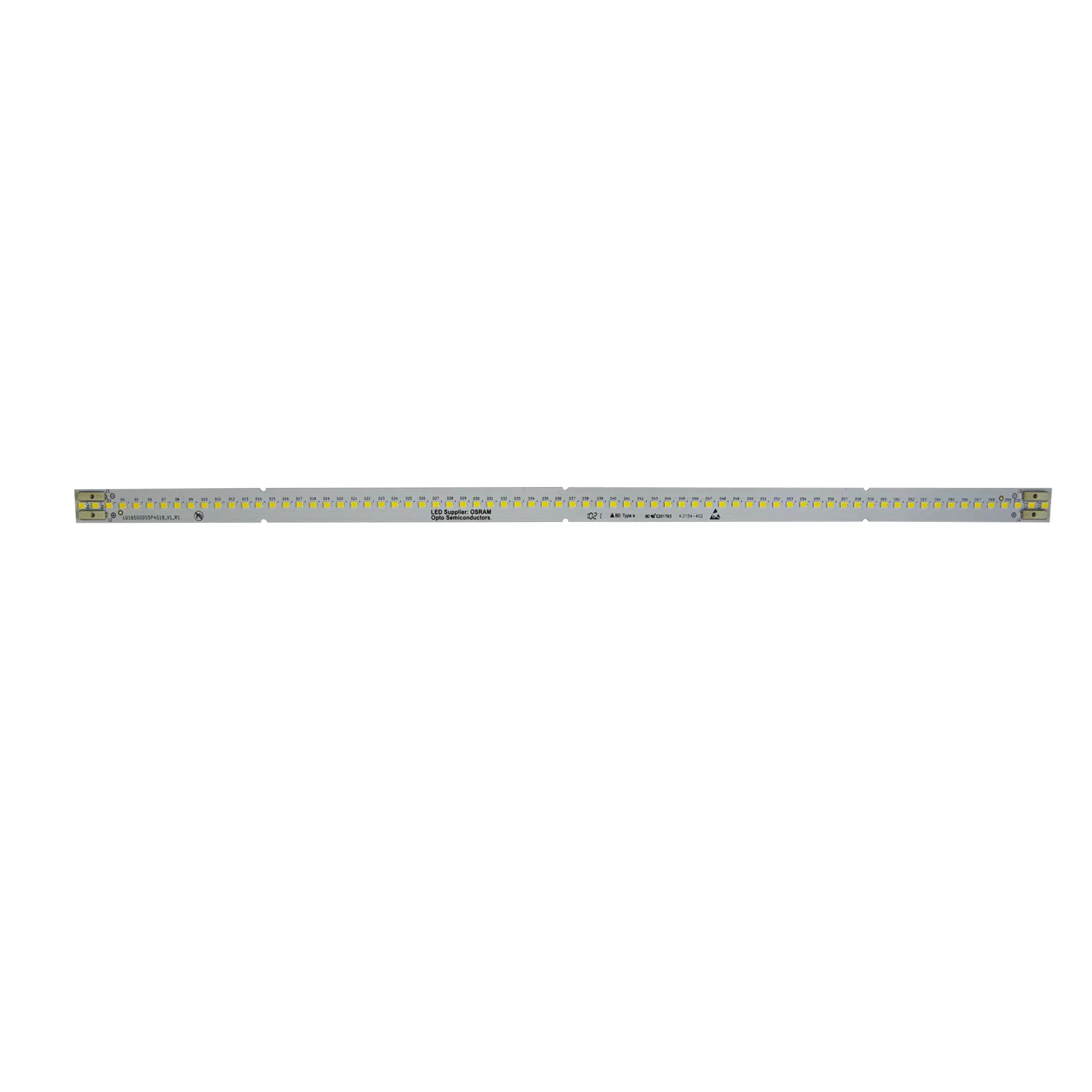

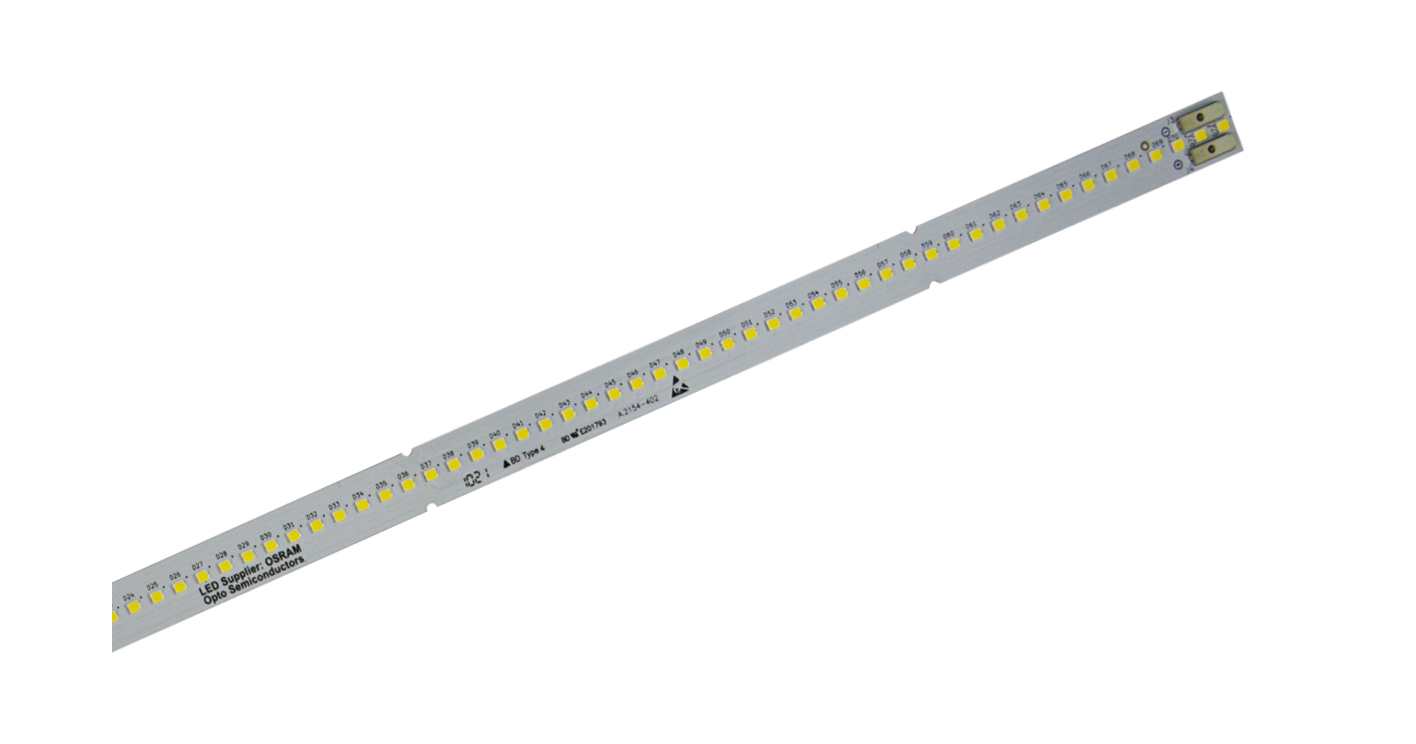

LNR-AL1-500X16-D28X72

Manufacturer : Sarnikon
Category : Indoor Lighting LED Modules

Product features

Item code	Color Temperature	Total number of LEDs	Number of Parallel Arms	Number of LEDs connected in series	Luminous flux @ ts = 25 °C (lm)		Light Axis @ ts = 45 °C (lm)		Drive Current (mA)	Min. Driving Voltage @ ts = 45 °C (V)	Max. Driving Voltage @ ts = 25 °C (V)	Max. Power (W)	Color rendering index (CRI)
Operating mode at 350 mA
LNR-500X16-D 28*35X72-30	3000K	72	4	18	2486	2884	2425	28ç13	350	50,4	57,6	20,16	≥80
LNR-500X16-D 28*35X72-40	4000K	72	4	18	2586	3083	2522	3007	350	50,4	57,6	20,16	≥80
LNR-500X16-D 28*35X72-65	6500K	72	4	18	2586	3083	2522	3007	350	50,4	57,6	20,16	≥80

Note: The LED module is designed for use with a constant current driver.
