LN A1 12X1000MM D28X70 LED MODULE 1 | Sarnikon

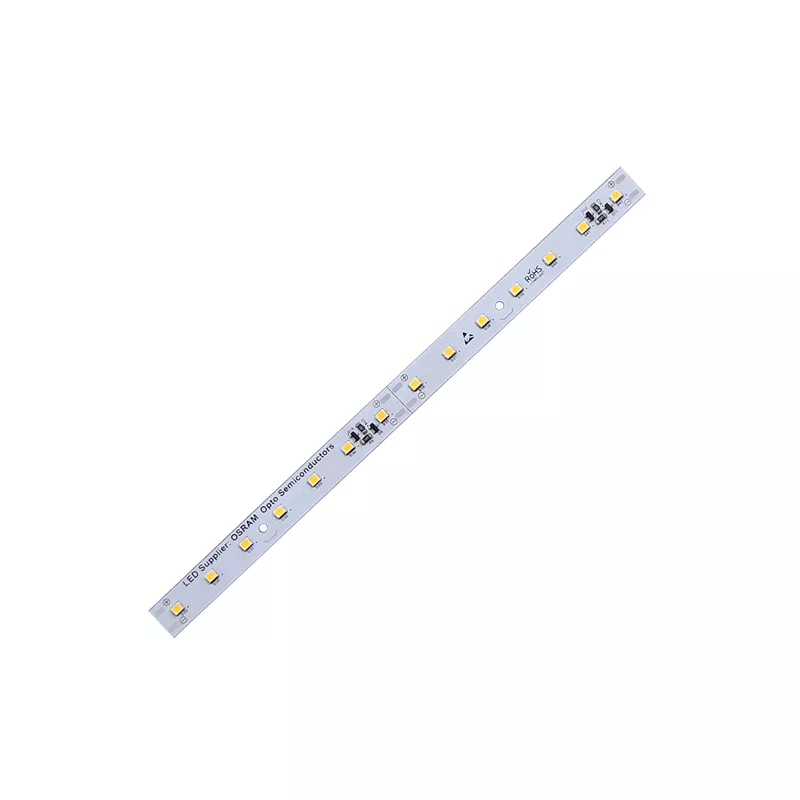

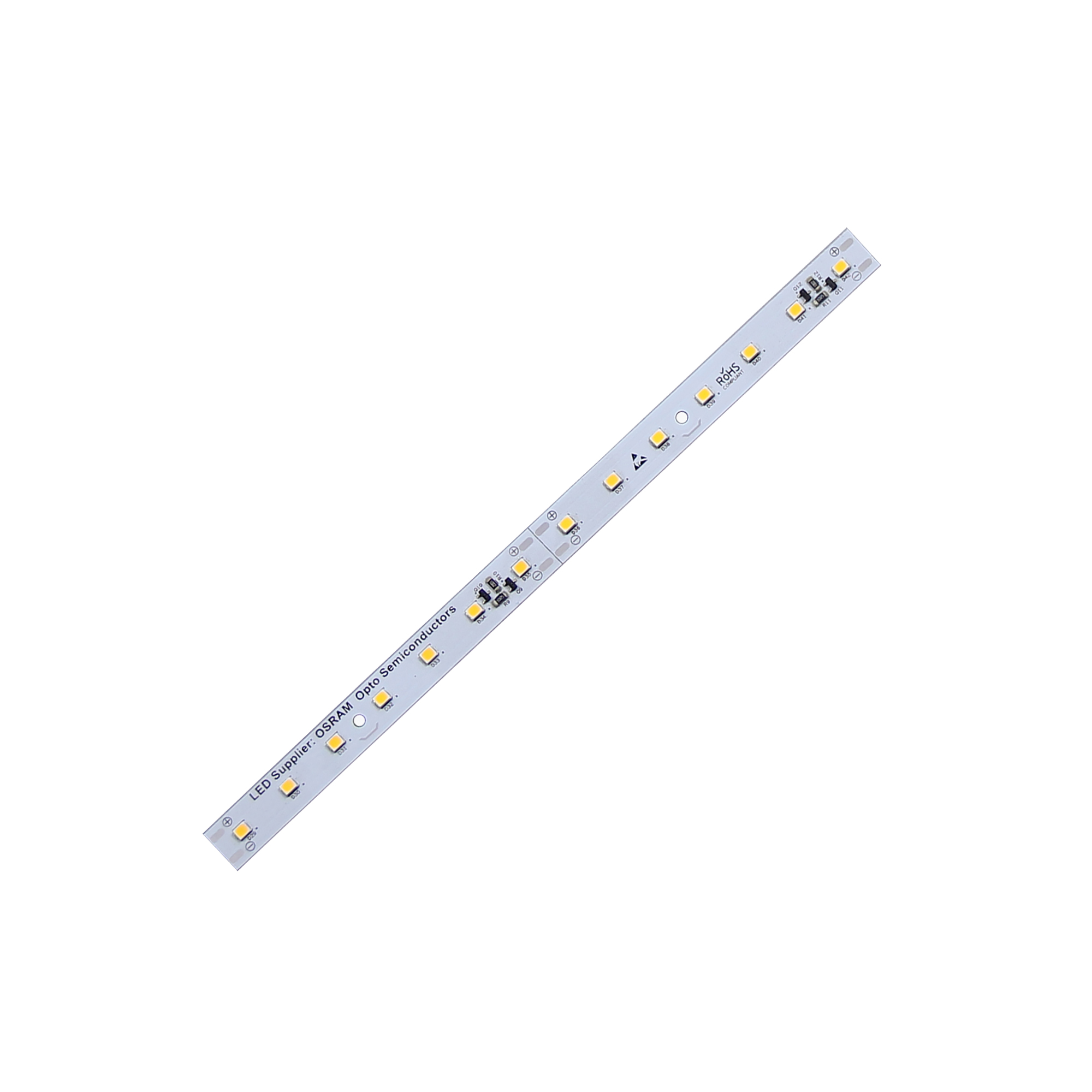

LN-A1-12X1000mm-D28X70 Led Module
Manufacturer :Sarnikon
Category :Indoor Lighting LED Modules
Ideal for linear applications and concealed lighting
Low energy consumption, high efficiency and long lifetime
Constant current driver
Homogeneous lighting
Product length is 1 m.
3-year warranty
Product Features
Product code | Color Temperature | Total number of LEDs | Number of Parallel Arms | Number of LEDs connected in series | Luminous flux @ ts = 25 °C (lm) | Luminous flux @ ts = 45 °C (lm) | Drive Voltage (V) | Max. Power (W) | Colour rendering index (CRI) | ||
Operating mode at 24V | |||||||||||
LN-A1-12X1000-D28X70-30 | 3000K | 70 | 10 | 7 | 2548 | 2940 | 2370 | 2734 | 24 | 21,60 | ≥80 |
LN-A1-12X1000-D28X70-40 | 4000K | 70 | 10 | 7 | 2548 | 2940 | 2370 | 2734 | 24 | 21,60 | ≥80 |
LN-A1-12X1000-D28X70-65 | 6500K | 70 | 10 | 7 | 2548 | 2940 | 2370 | 2734 | 24 | 21,60 | ≥80 |
