NACTUS SMART 2x2 - PMMA IP LENS | Sarnikon
NACTUS SMART 2x2 - PMMA IP LENS
Manufacturer :KHATOD
Category :Nactus 2×2 Series
Product Features

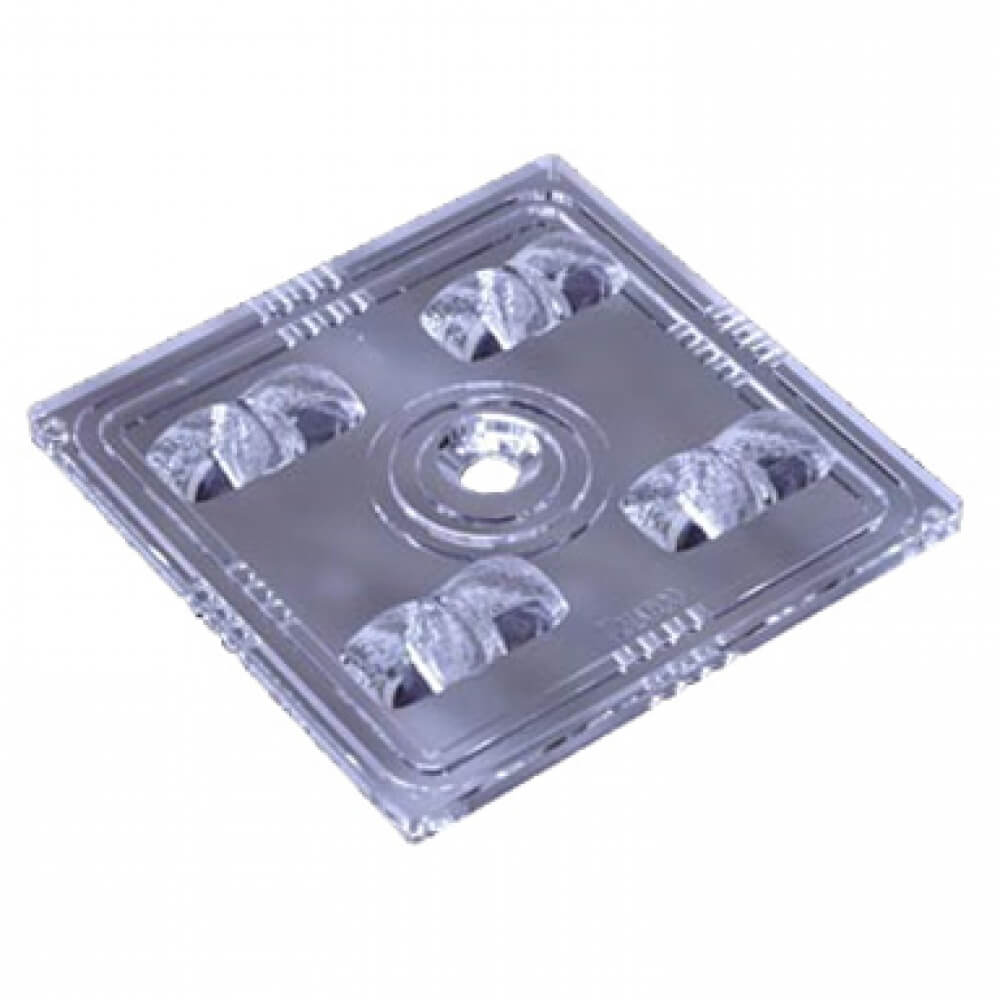

NACTUS SMART 2X2 IP LENSES
4-Lens Nactus SMART Optic System with IP Protection – Module dimensions: 55.88 mm x 55.88 mm – Lens pitch: 27.94 mm –
Material: Transparent PMMA 8N, non-yellowing, 10-year warranty**
The NACTUS Optic System is patented.
**The Nactus Smart Optic System is made from the material used for the production of PLEXIGLAS® Solar, which guarantees no yellowing for 10 years.
Yellowness Index (YI) according to test standards for Arizona / Florida exposure tests:
– YI 6 under hot/dry conditions
– YI 8 under hot/wet conditions
| Ürün Kodu / Product Code | Işın Açısı / Beam Angle |
| KNAC0406A | 153°x107° |
| KNAC0407A | 90° Type VS Short |
| KNAC0408A | 130°x130° Symmetric Type VS Short |
| KNAC0409A | 119°x92° Type III Short |
| KNAC0410A | 158° x 110° |
| KNAC0411A | 149° x 106° |
| KNAC0412A | 160° x 112° |
| KNAC0413A | 162° x 116° |
| KNAC0415A | 165° x 110° |
| KNAC0416A | 145° x 115° |
| KNAC0417A | 110° x 80° |
| KNAC0418A | 145° x 120° |
| KNAC0419A | 135° |
| KNAC0420A | 47° |
| KNAC0421A | 90° x 90° |

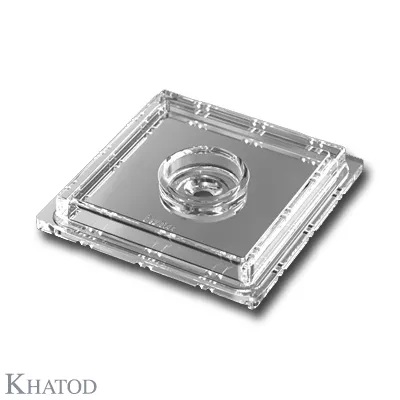

| K1871 | Transparent NACTUS SMART PC Box for PCB and electronic components |

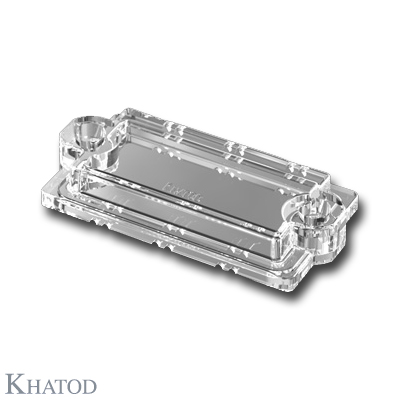

| K1878 | Transparent NACTUS SMART PC Box for PCB and electronic components |
