Product Features

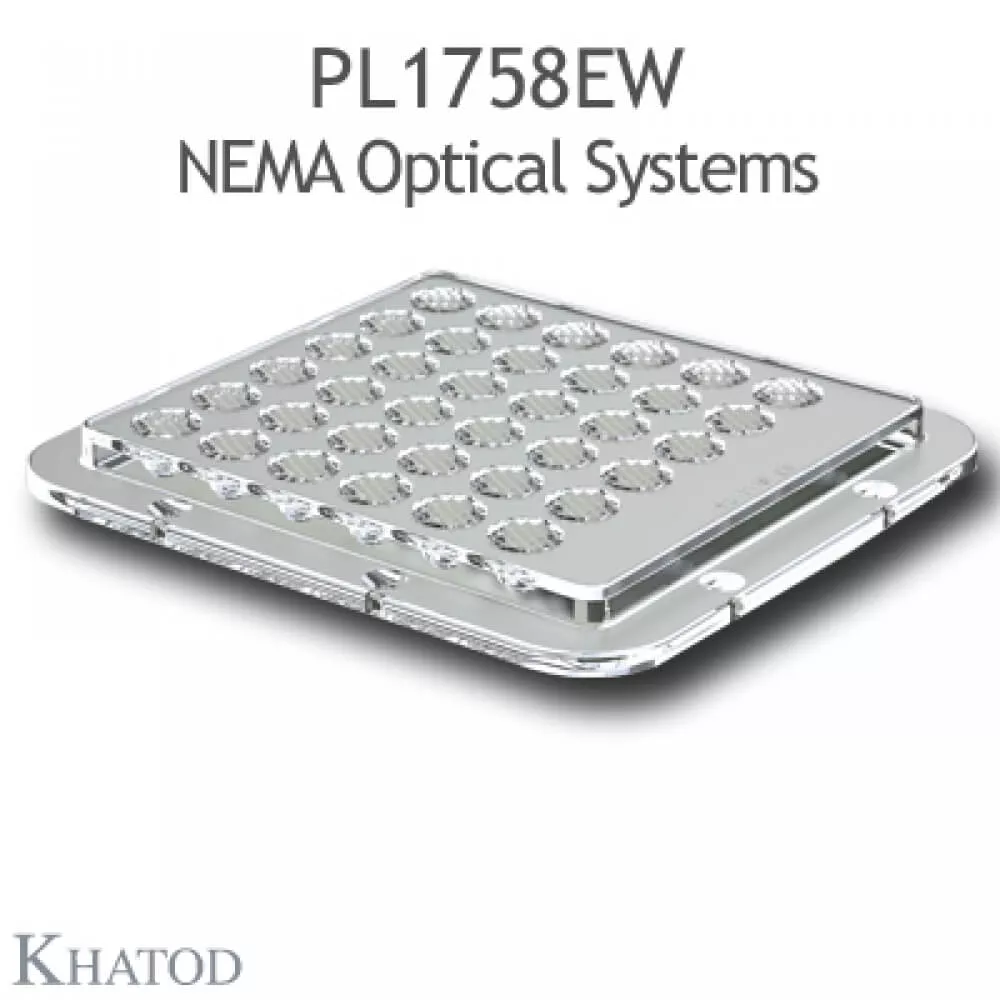

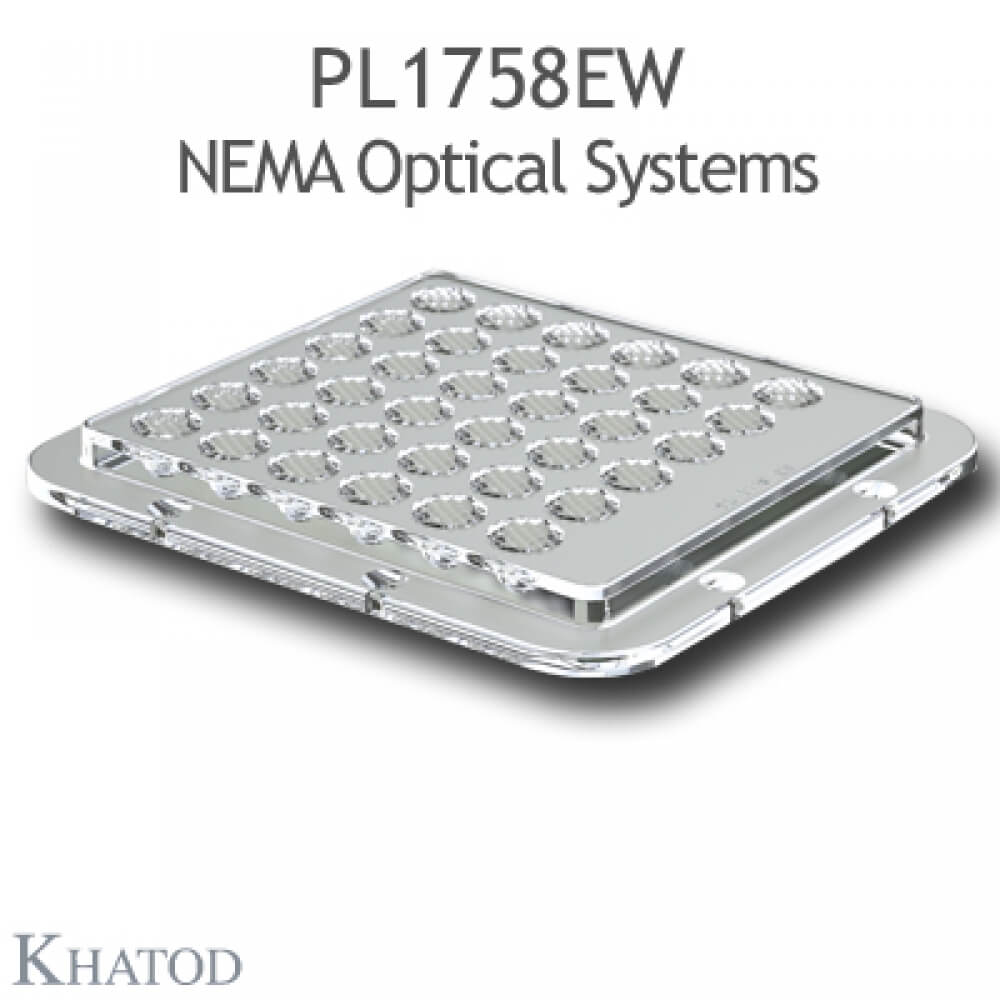

NEMA Optical Systems for Power LEDs; Module dimensions: 110mm x 120mm side, 9.51mm height – NEMA 3
NEMA Optical Systems for Power LEDs
Module dimensions: 110mm x 120mm side – 9.51mm height
NEMA Class: NEMA 3
• Material: PMMA HT121

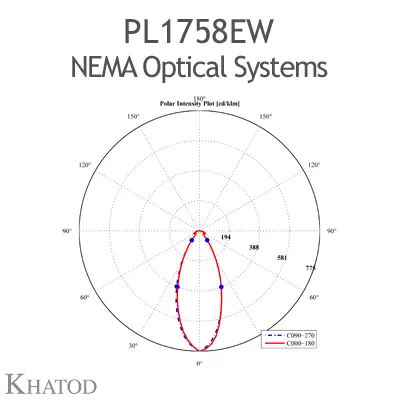

• Full angle at maximum 50%: ~ 18°
• Full angle at maximum 10%: ~ 35°

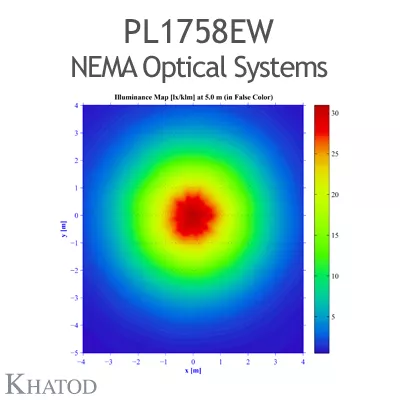

• The light spots shown here refer to tests carried out with 3mm domed, ~350mA @LED LEDs.
• It is recommended to use lenses with LEDs at 350mA and at a distance of less than 3 meters. The NEMA Class is defined depending on the type of LED used.
• Optional: Upon request, Silicone Gasket for IP protection will be supplied only under part number KGAS04 upon request.
• Optional: Optionally, PCBs and LEDs available only for optical tests
• Compliant with NEMA Standards, IK classified, IK compliant, UV protected
36 optical panels designed for the most popular Power LEDs.
New concept optical system, ready to use for the widest variety of Lighting applications, Indoors and Outdoors.
