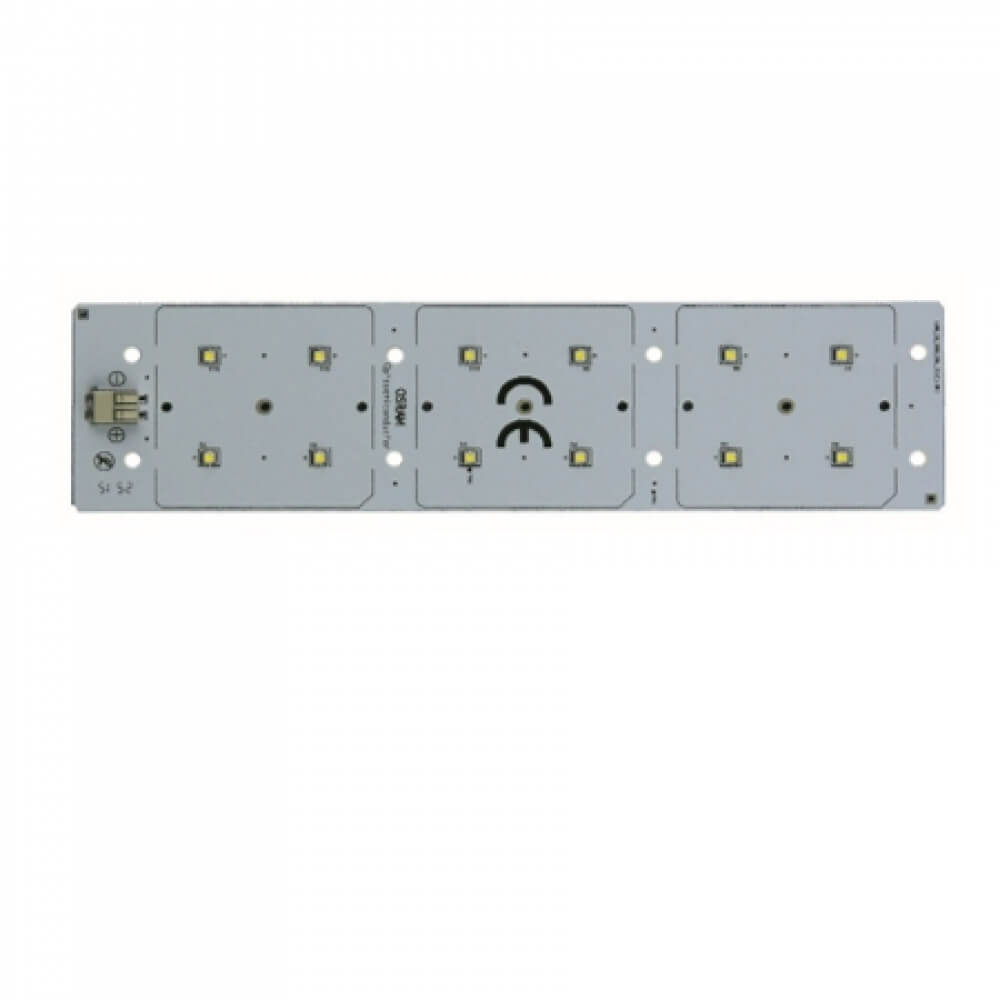

REC-AL1-200X52-SQRx12 Led Module
Manufacturer : Sarnikon
Category : Outdoor Lighting LED Modules
- Ideal LED module for park, garden, gas station, street and tunnel lighting
- Low energy consumption, high efficiency and long life
- Homogeneous lighting
- 3 years warranty
Product code | Color Temperature | Total number of LEDs | Number of Parallel Arms | Number of LEDs connected in series | Luminous flux @ ts = 85 °C (lm) | Drive Current (mA) | Min. Driving Voltage @ ts = 65 °C (V) | Max. Driving Voltage @ ts = 25 °C (V) | Max. Power (W) | Colour rendering index (CRI) | |
Operating mode at 350 mA | |||||||||||
REC-AL1-200X52-SQRx1230 | 3000K | 12 | 1 | 12ç | 2196ç | 2268 | 350 | 31,80 | 38,40 | 13,44 | ≥70 |
REC-AL1-200X52-SQRx12-40 | 4000K | 12 | 1 | 12 | 2196 | 2268 | 350 | 31,80 | 38,40 | 13,44 | ≥70 |
REC-AL1-200X52-SQRx12-65 | 6500K | 12 | 1 | 12 | 2196 | 2340 | 350 | 31,80 | 38,40 | 13,44 | ≥70 |
Operating mode at 500 mA | |||||||||||
REC-AL1-200X52-SQRx12-30 | 3000K | 12 | 1 | 12 | 2745 | 2835 | 500 | 31,80 | 38,40 | 19,20 | ≥70 |
REC-AL1-200X52-SQRx12-40 | 4000K | 12 | 1 | 12 | 2745 | 2835 | 500 | 31,80 | 38,40 | 19,20 | ≥70 |
REC-AL1-200X52-SQRx12-65 | 6500K | 12 | 1 | 12 | 2745 | 2925 | 500 | 31,80 | 38,40 | 19,20 | ≥70 |
Operating mode at 700 mA | |||||||||||
REC-AL1-200X52-SQRx12-30 | 3000K | 12 | 1 | 12 | 3660 | 3780 | 700 | 31,80 | 38,40 | 26,88 | ≥70 |
REC-AL1-200X52-SQRx12-40 | 4000K | 12 | 1 | 12 | 3660 | 3780 | 700 | 31,80 | 38,40 | 26,88 | ≥70 |
REC-AL1-200X52-SQRx12-65 | 6500K | 12 | 1 | 12 | 3660 | 3900 | 700 | 31,80 | 38,40 | 26,88 | ≥70 |
Operating mode at 1050 mA | |||||||||||
REC-AL1-200X52-SQRx12-30 | 3000K | 12 | 1 | 12 | 4758 | 4914 | 1050 | 31,80 | 38,40 | 40,32 | ≥70 |
REC-AL1-200X52-SQRx12-40 | 4000K | 12 | 1 | 12 | 4758 | 4914 | 1050 | 31,80 | 38,40 | 40,32 | ≥70 |
REC-AL1-200X52-SQRx12-65 | 6500K | 12 | 1 | 12 | 4758 | 5070 | 1050 | 31,80 | 38,40 | 40,32 | ≥70 |
