Ultra Clear Silicone Lenses for COB LEDs; 100.00mm x 111.00mm edge, 33.68mm height; Type II Ultra Clear Silicone Lenses for COB LEDs 100.00mm x 111.00mm side – 33.68mm height Type II

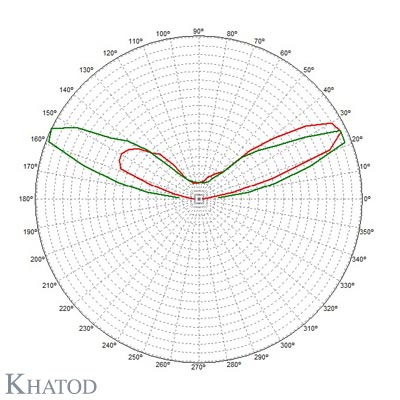

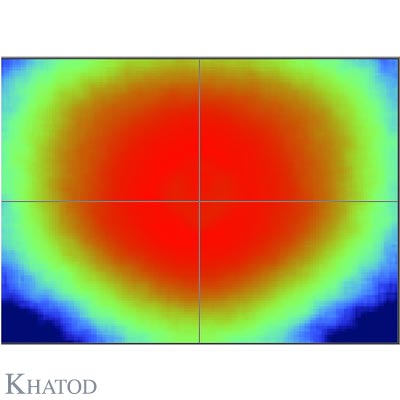

BENEFITS: – Lens material: Silicone – Ring Material: PC / Aluminium – Full angle at 50%: ~ 145° x 155° – Full angle at 10%: ~ 170° x 165° – The light spots shown here refer to tests carried out with CoBs with 23mm LES, ~ 5225lm. – Designed for any system using COB LEDs with LES ranging from 19mm to 23mm

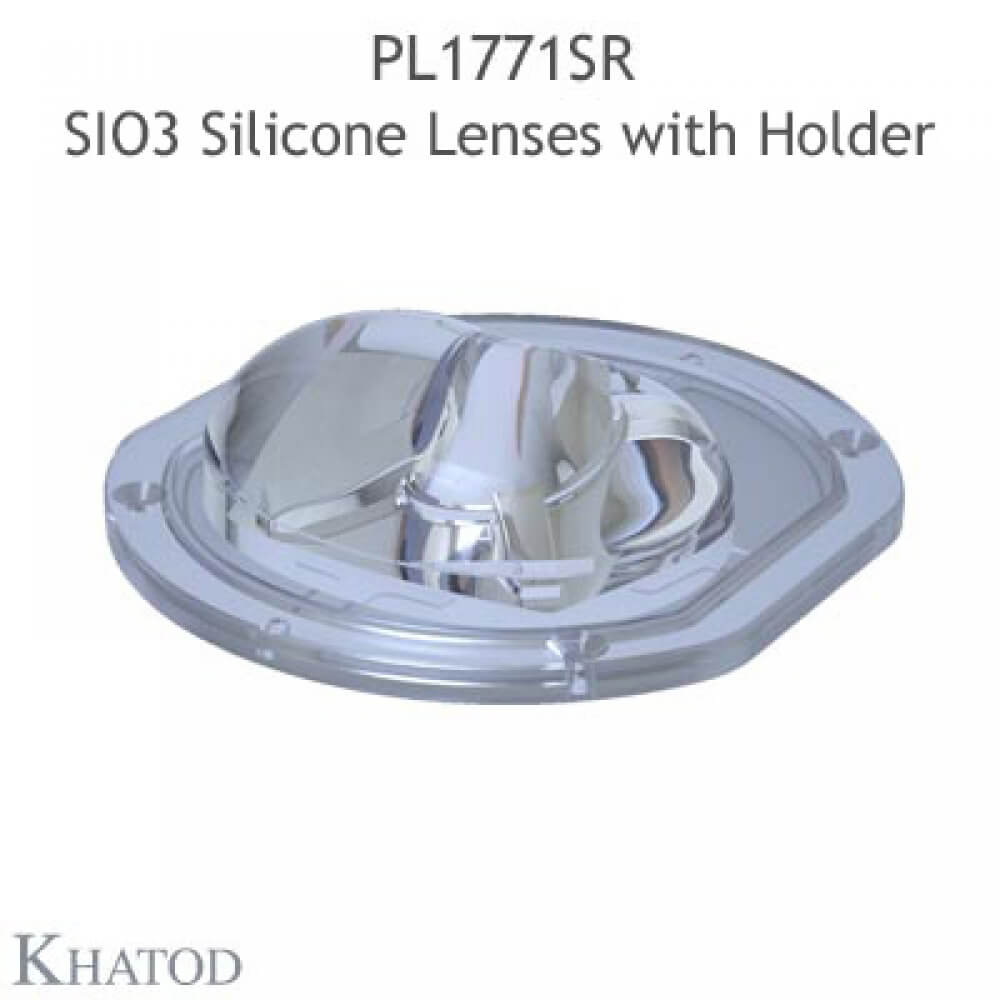

SIO3 Silicone Lens is supplied without holder. The holder is optional and will only be provided on request under part number KE177614 (Material: PC) or under part number KE177614ALU (Material: Aluminium). SIO3 Silicone Lens is supplied without holder with connector. The holder with connector by Bender-Wirth is optional and only available on request.
