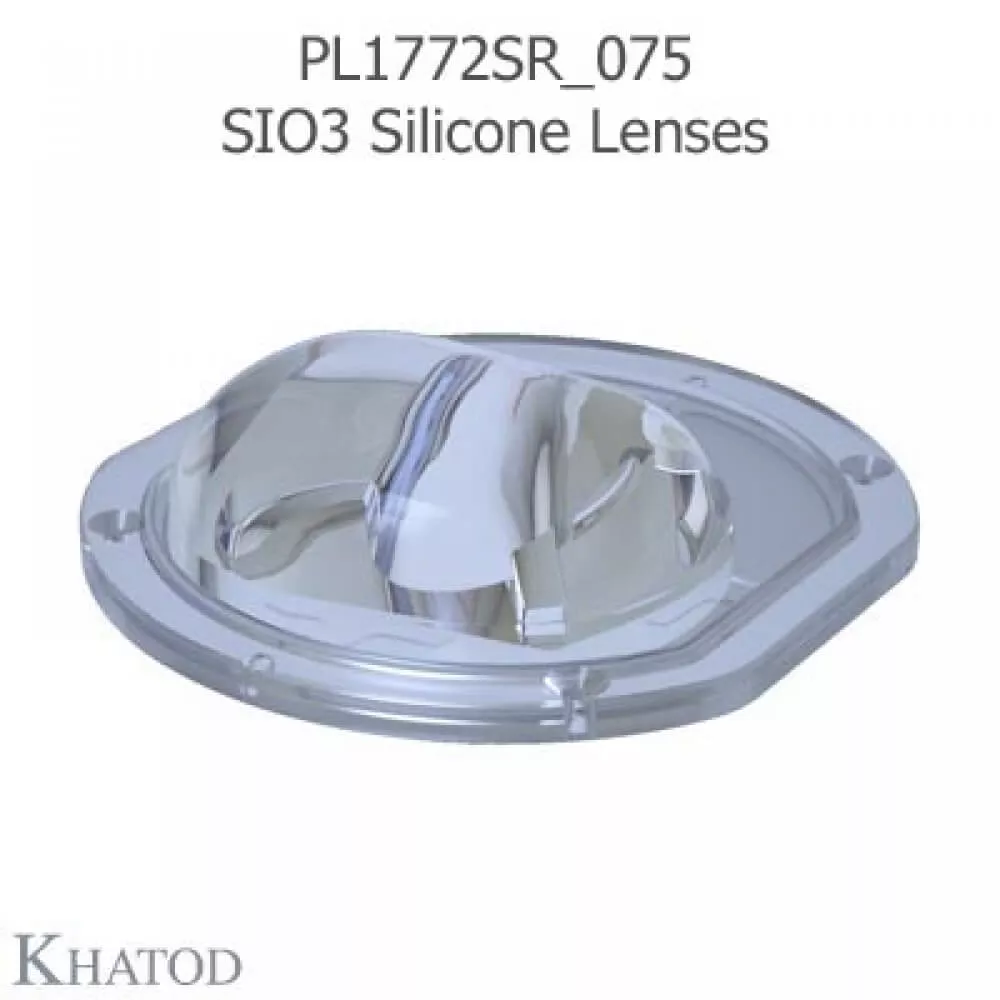

Ultra Clear Silicone Lenses for COB LEDs 100.00 mm x 111.00 mm side – 32.20 mm height Type V

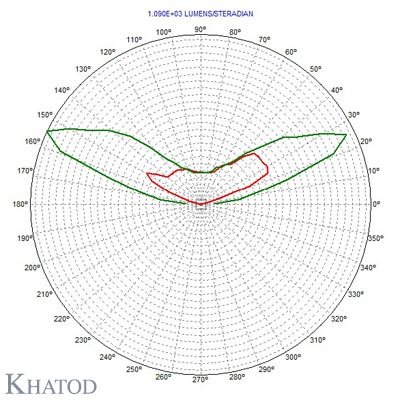

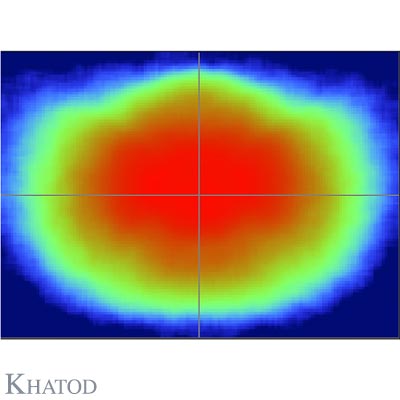

BENEFITS: – Lens material: Silicone – Ring material: PC / Aluminum - Full angle at 50%: ~ 155° x 155° - Full angle at 10%: ~ 165° x 165° – The light spots shown here refer to tests carried out with CoBs with 23 mm LES and ~ 5225 lm. – Designed for any system using COB LEDs with LES ranging between 19 mm and 23 mm

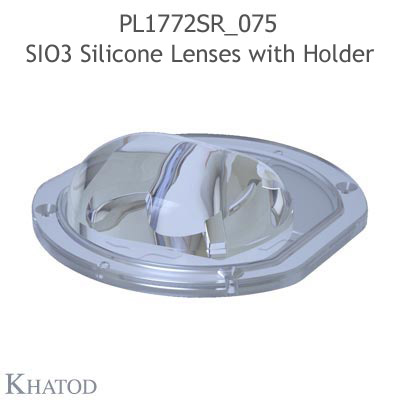

The SIO3 Silicone Lens is supplied without a holder. The holder is optional and will only be supplied on request under part number KE177614 (Material: PC) or under part number KE177614ALU (Material: Aluminum). The SIO3 Silicone Lens is supplied without a holder with connector. The holder with connector by Bender-Wirth is optional and only available on request.
