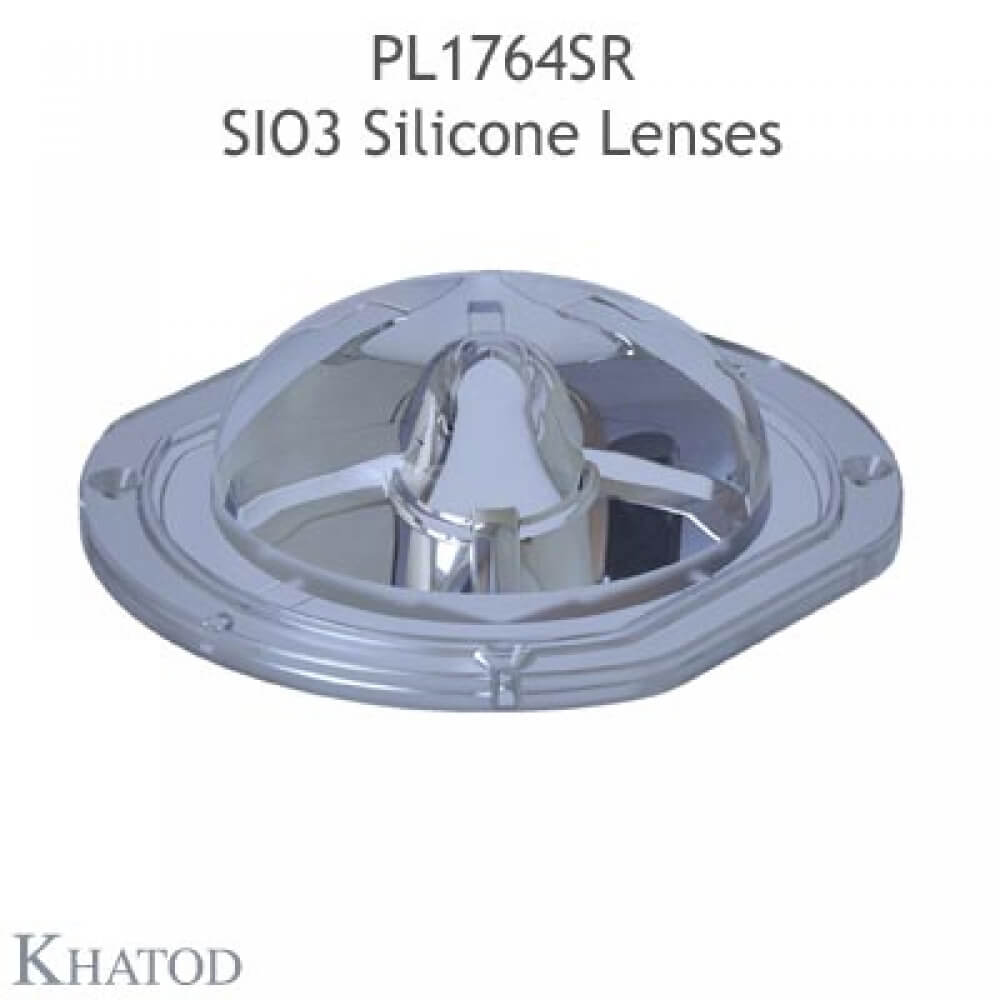

Ultra Clear Silicone Lenses for COB LEDs; 100.00mm x 111.00mm edge, 34.89mm height; Type III Ultra Clear Silicone Lenses for COB LEDs 100.00mm x 111.00mm side – 34.89mm height Type III

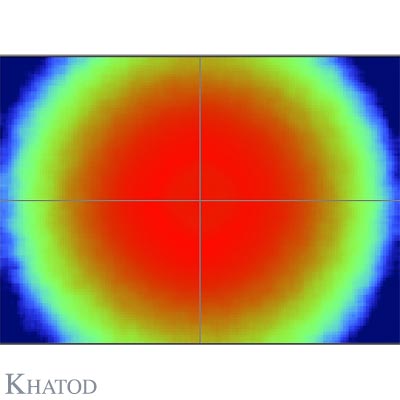

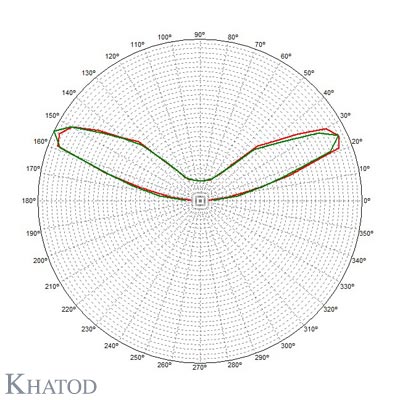

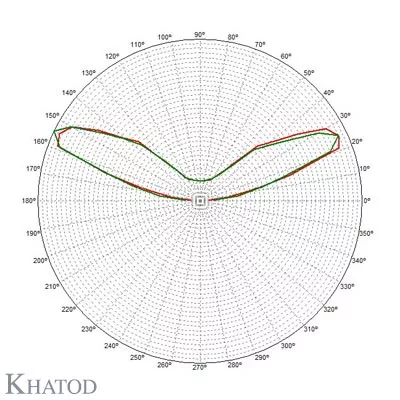

BENEFITS: – Lens material: Silicone – Ring material: PC – Full angle at 50%: ~ 140° x 155° – Full angle at 10%: ~ 150° x 165° – The light spots shown here refer to tests carried out with CoBs with 23mm LES, ~ 5225lm. – Designed for any system using COB LEDs with LES ranging from 19mm to 23mm

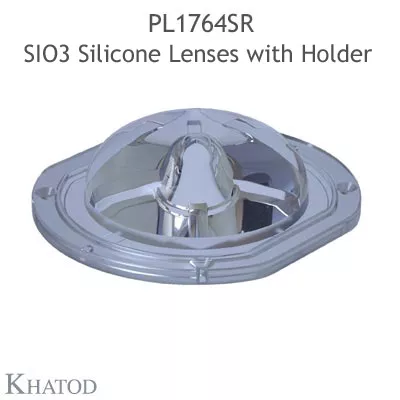

SIO3 Silicone Lens is supplied without holder. The holder is optional and will only be provided upon request under part number KE177614 (Material: PC) or under part number KE177614ALU (Material: Aluminum). SIO3 Silicone Lens is supplied without a connector holder. The connector holder by Bender-Wirth is optional and is only available upon request.
