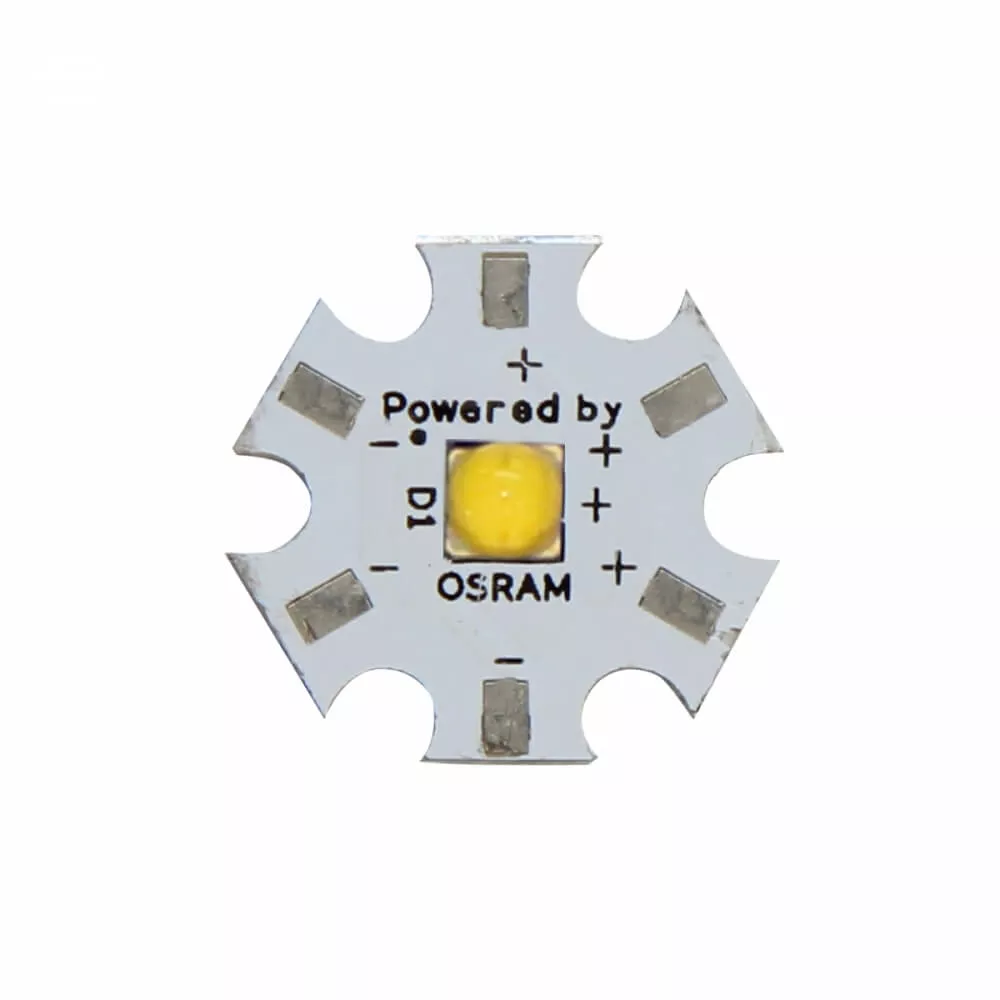

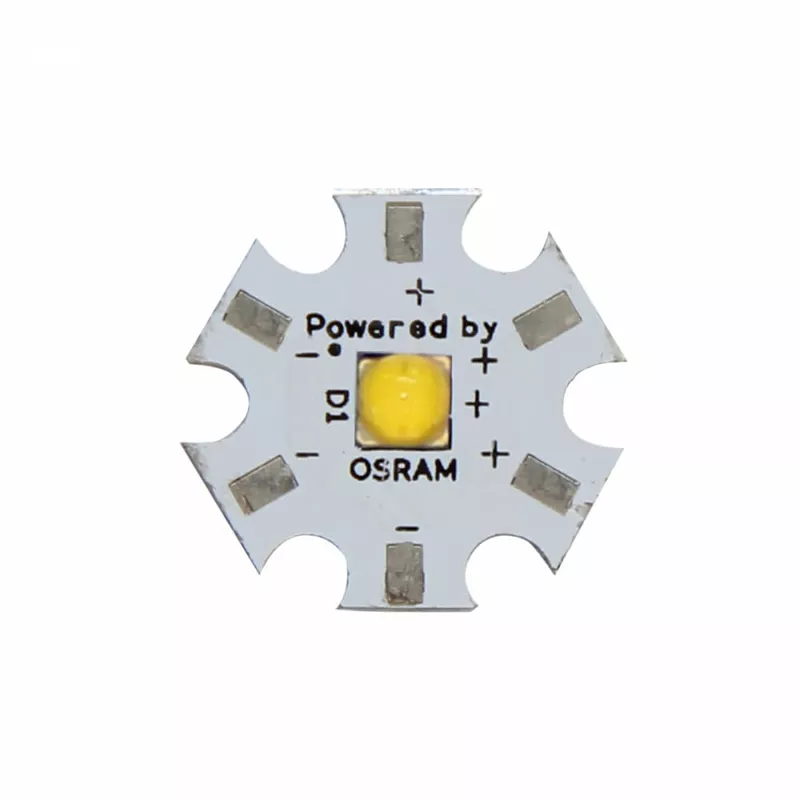

STR-AL1-17X1.6-SQRX01 Led Module
Manufacturer : Sarnikon
Category : Indoor Lighting LED Modules
Category : Indoor Lighting LED Modules
- Ideal for spot lighting and downlights
- Low energy consumption, high efficiency and long life
- homogeneous lighting
- 3 years warranty
-
| Product code | Color Temperature | Total number of LEDs | Number of Parallel Arms | Number of LEDs connected in series | Luminous flux @ ts = 85 °C (lm) | Driving Current (mA) | min. Driving Voltage @ ts = 65 °C (V) | Max. Driving Voltage @ ts = 25 °C (V) | Max. Power (W) | Colour rendering index (CRI) | |
| Operating mode at 350 mA | |||||||||||
| SR-A1-17-SQRX01-30-30 | 3000K | 1 | 1 | 1 | 183 | 189 | 350 | 2,65 | 3,20 | 1,12 | ≥70 |
| SR-A1-17-SQRX01-30-40 | 4000K | 1 | 1 | 1 | 183 | 189 | 350 | 2,65 | 3,20 | 1,12 | ≥70 |
| SR-A1-17-SQRX01-30-65 | 6500K | 1 | 1 | 1 | 183 | 189 | 350 | 2,65 | 3,20 | 1,12 | ≥70 |
| Operating mode at 500 mA | |||||||||||
| SR-A1-17-SQRX01-30-30 | 3000K | 1 | 1 | 1 | 229 | 236 | 500 | 2,65 | 3,20 | 1,60 | ≥70 |
| SR-A1-17-SQRX01-30-40 | 4000K | 1 | 1 | 1 | 229 | 236 | 500 | 2,65 | 3,20 | 1,60 | ≥70 |
| SR-A1-17-SQRX01-30-65 | 6500K | 1 | 1 | 1 | 229 | 236 | 500 | 2,65 | 3,20 | 1,60 | ≥70 |
| Operating mode at 700 mA | |||||||||||
| SR-A1-17-SQRX01-30-30 | 3000K | 1 | 1 | 1 | 305 | 315 | 700 | 2,65 | 3,20 | 2,24 | ≥70 |
| SR-A1-17-SQRX01-30-40 | 4000K | 1 | 1 | 1 | 305 | 315 | 700 | 2,65 | 3,20 | 2,24 | ≥70 |
| SR-A1-17-SQRX01-30-65 | 6500K | 1 | 1 | 1 | 305 | 315 | 700 | 2,65 | 3,20 | 2,24 | ≥70 |
| Operating mode at 1050 mA | |||||||||||
| SR-A1-17-SQRX01-30-30 | 3000K | 1 | 1 | 1 | 397 | 410 | 1050 | 2,65 | 3,20 | 3,36 | ≥70 |
| SR-A1-17-SQRX01-30-40 | 4000K | 1 | 1 | 1 | 397 | 410 | 1050 | 2,65 | 3,20 | 3,36 | ≥70 |
| SR-A1-17-SQRX01-30-65 | 6500K | 1 | 1 | 1 | 397 | 410 | 1050 | 2,65 | 3,20 | 3,36 | ≥70 |
