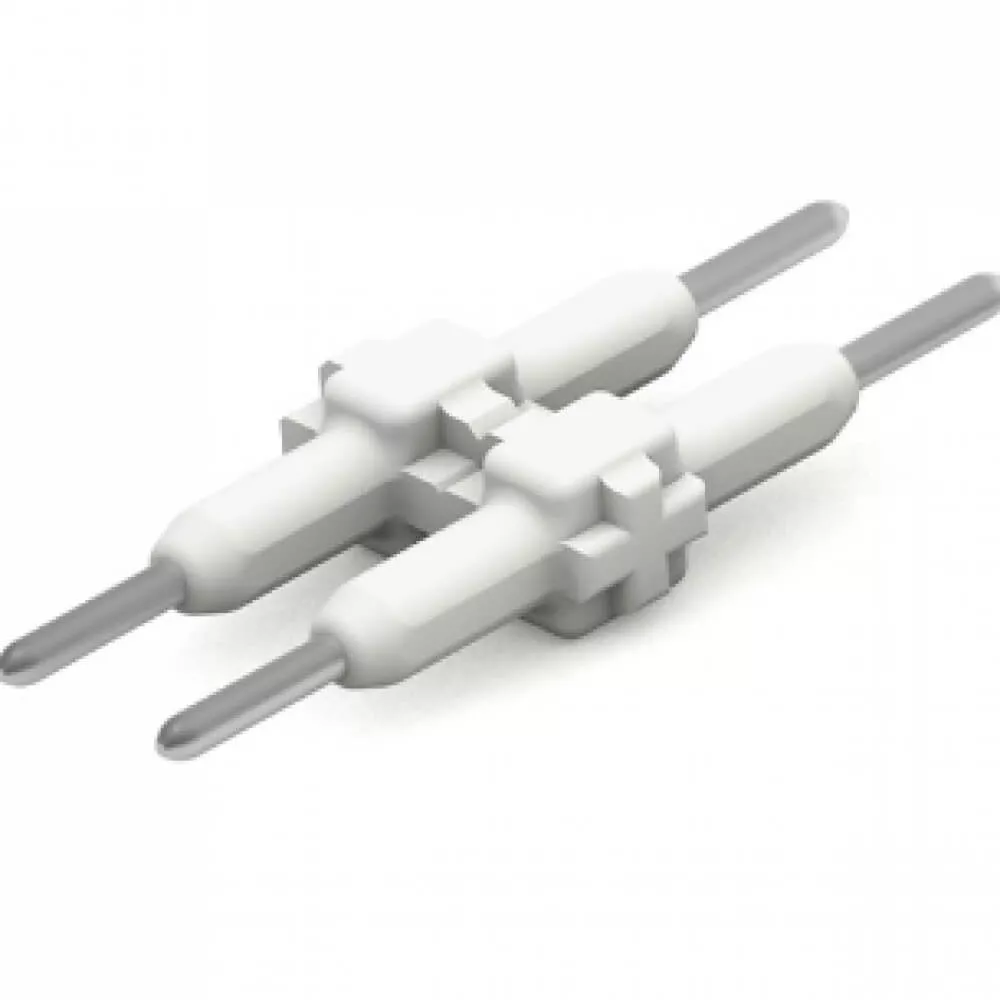

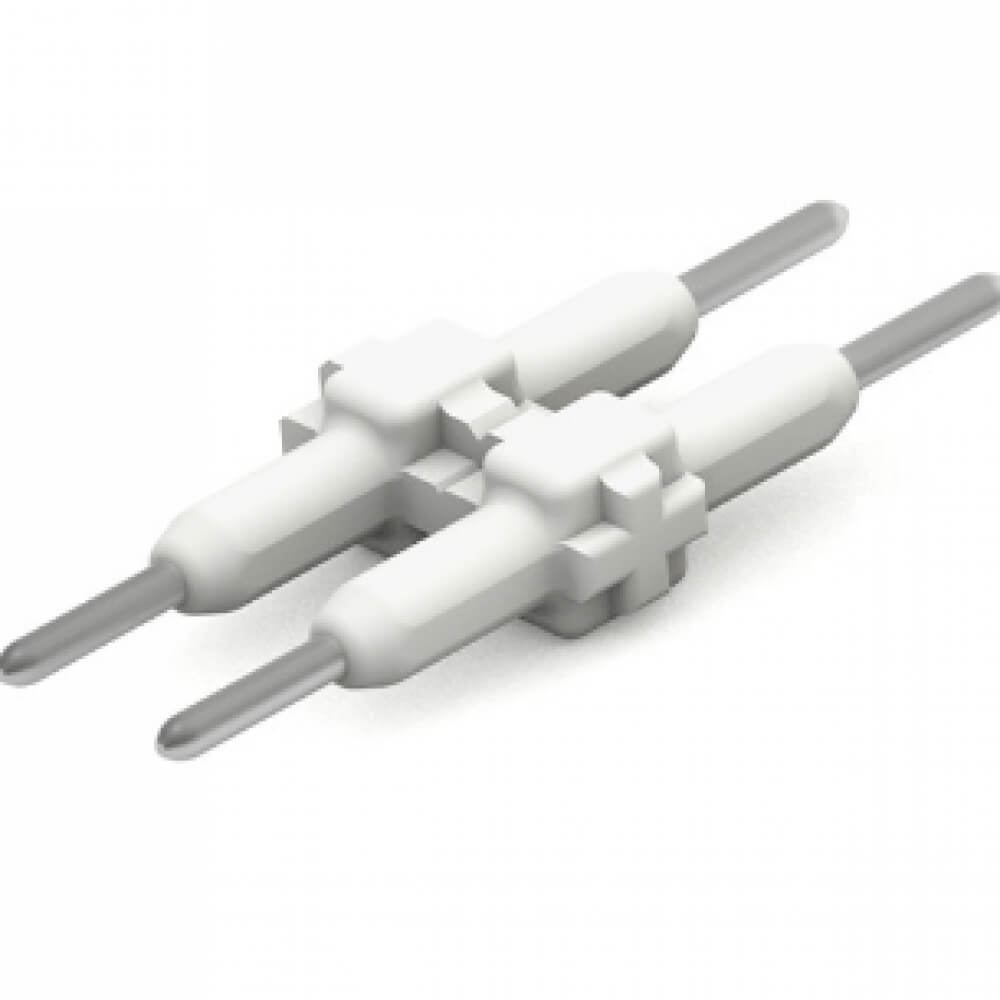

2 Pole Coupling Apparatus
Description Board of Directors Link; Pin pitch 3mm; 2-pole; Length: 15.3mm
Product Description:

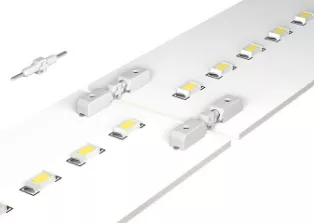

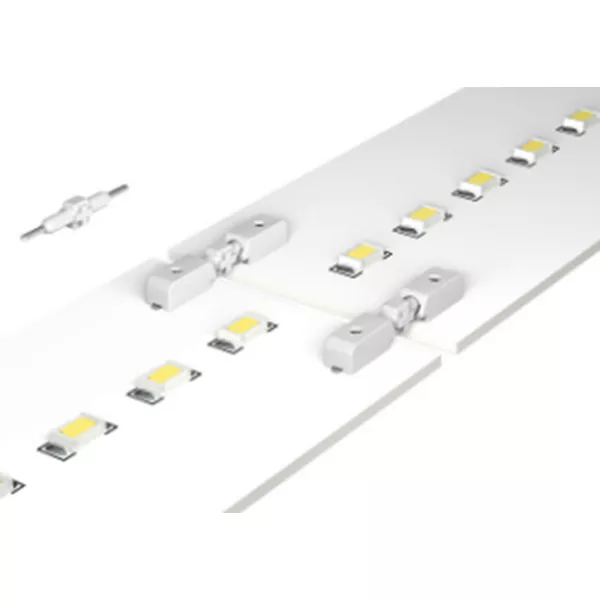

Simplifies LED module assembly from board to connections
Easy push connection and disconnection
Technical details
| Name | Value | Unit |
| No. of poles | 2 | |
| Total number of potentials | 2 | |
| Pin spacing | 3 mm (0.118 in) | |
| Width | 5.7 mm / 0.224 in | |
| Height | 2.5 mm / 0.098 in | |
| Depth | 15.3 mm / 0.602 in | |
| Color | white | |
| Material group | I | |
| Insulating material | Polyamide 66 (PA 66) | |
| Flammability class per UL94 | V0 | |
| Contact material | Copper alloy | |
| Contact plating | silver-plated | |
| Fire load [MJ] | 0.001 | MJ |
| Weight [g] | 0.127 | g |
| Limit temperature range | -60 … 105 °C | |
| Packaging type | BOX | |
| [mm] | 5.7 | mm |
| Pin spacing from [in] | 0.118 | in |
| Pin spacing from [mm] | 3 | mm |
| Main product function | Board-to-Board Link | |
| Product type | Accessories | |
| Suitable | for SMD PCB terminal blocks with push-buttons |
