LED PCB Klemensleri
SMD PCB terminal; Press the button; 0.75mm²; Pin pitch 4mm; 3-pole; Push-in CAGE CLAMP®; in-band packaging
Product Description:

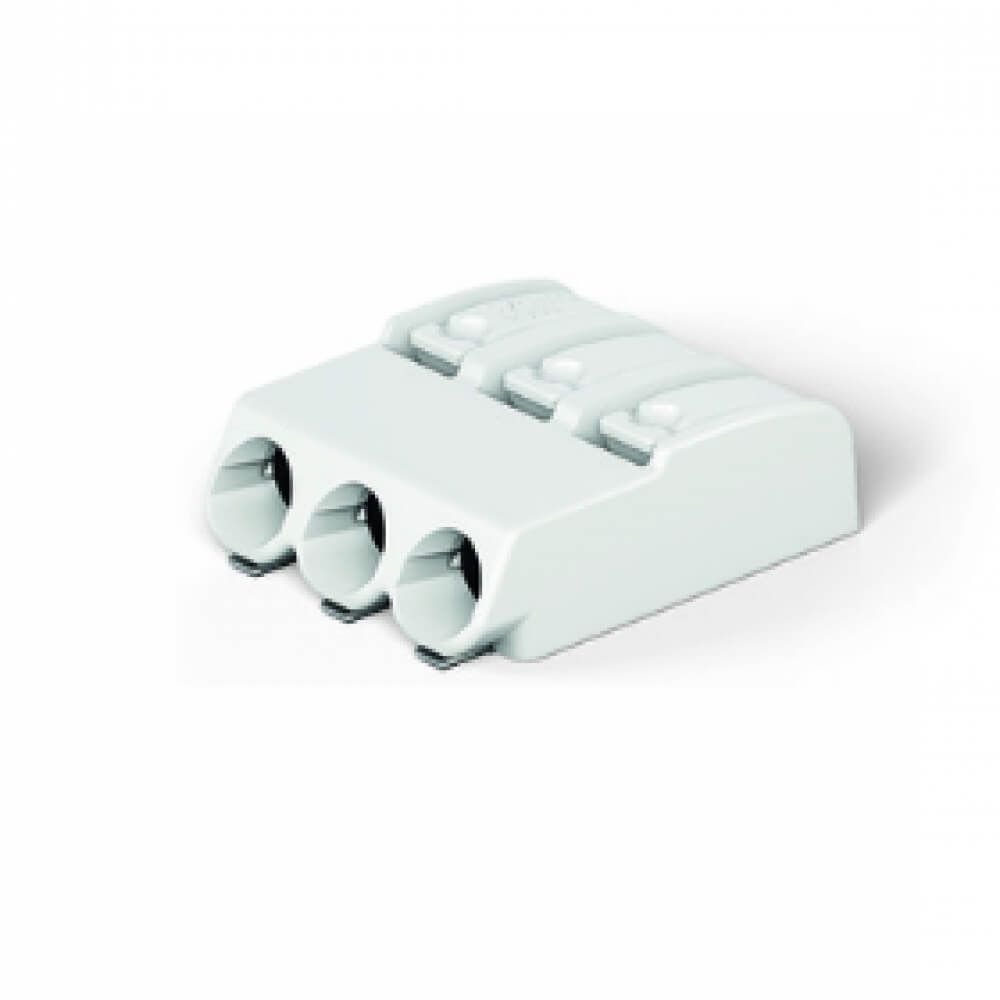

SMD PCB terminal blocks with push-in CAGE CLAMP® connection and buttons
Only 4.5mm height minimizes onboard LED shading

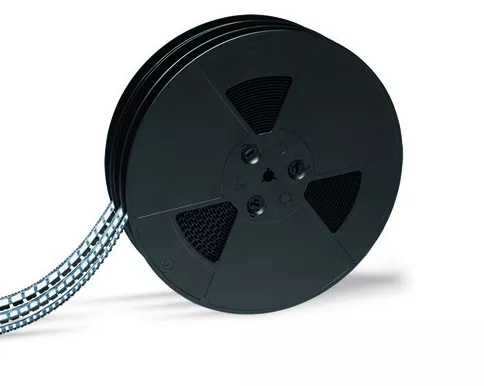

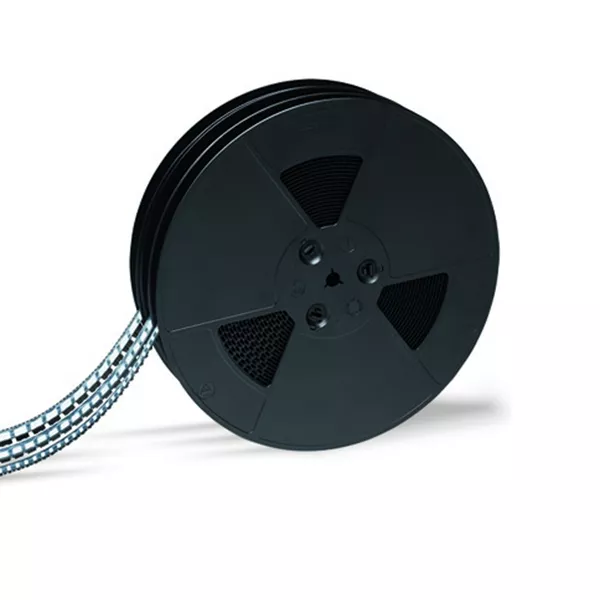

Available in tape and reel packaging for automatic assemblya
Technical details
| Name | Value | Unit |
| Connection technology | Push-in CAGE CLAMP® | |
| Actuation type | Push-button | |
| Solid conductor | 0.2 … 0.75 mm² / 24 … 18 AWG | |
| Fine-stranded conductor | 0.2 … 0.75 mm² / 24 … 18 AWG | |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 0.34 mm² | |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 0.34 mm² | |
| Strip length | 7 … 9 mm / 0.28 … 0.35 Inch | |
| No. of poles | 3 | |
| Total number of connection points | 3 | |
| Total number of potentials | 3 | |
| Number of connection types | 1 | |
| Number of levels | 1 | |
| Pin spacing | 4 mm (0.157 in) | |
| Width | 11.9 mm / 0.469 in | |
| Height | 4.5 mm / 0.177 in | |
| Depth | 13.1 mm / 0.516 in | |
| Reel diameter of tape-and-reel packaging [mm] | 330 | mm |
| Tape width [mm] | 24 | mm |
| PCB contact | SMD | |
| Color | white | |
| Material group | I | |
| Insulating material | Polyphtalamide (PPA GF) | |
| Flammability class per UL94 | V0 | |
| Contact material | Copper alloy | |
| Contact plating | tin-plated | |
| Weight [g] | 1.111 | g |
| Limit temperature range | -60 … 105 °C | |
| Packaging type | BOX | |
| [mm] | 11.9 | mm |
| Pin spacing from [in] | 0.157 | in |
| Pin spacing from [mm] | 4 | mm |
| Main product function | PCB terminal block | |
| Product type | PCB terminal blocks |
