LED PCB Klemensleri

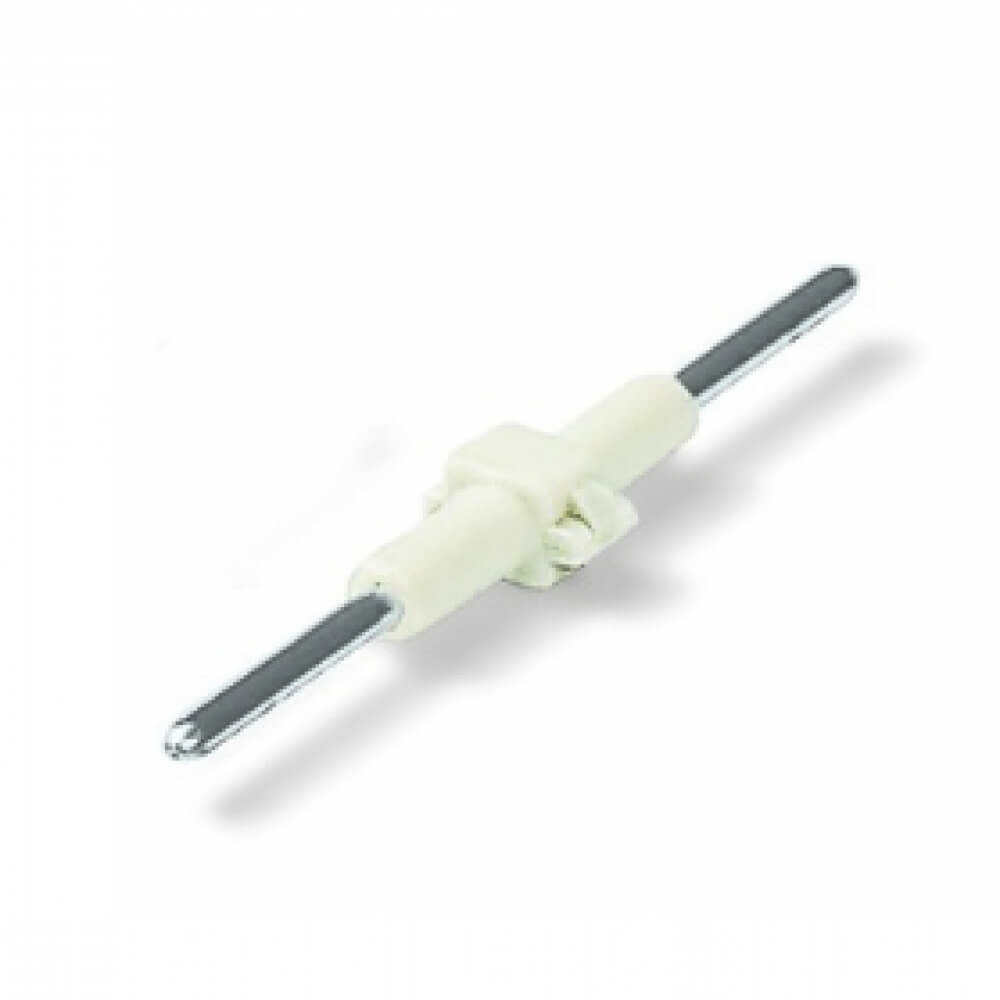

Board Connection; Pin pitch 4mm; 1 pole; Length: 28mm
Product Description:

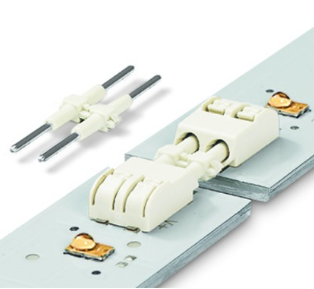

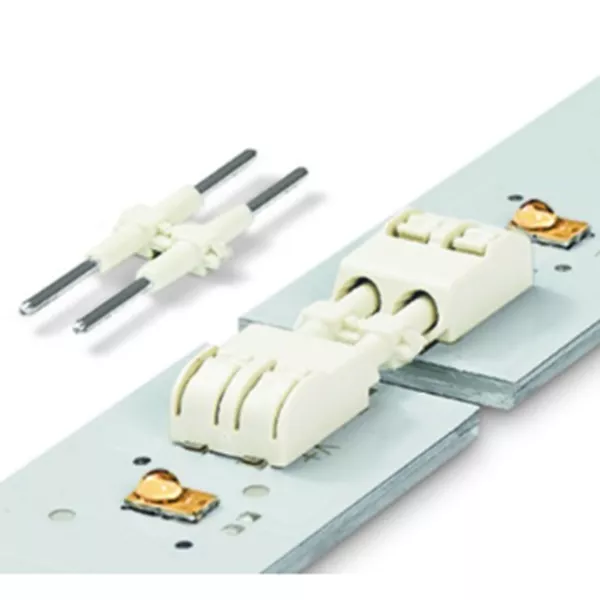

Board connection simplifies in-line mounting of LED modules
Easy push termination and disconnection without push-button operation
Technical details
| Name | Value | Unit |
| No. of poles | 1 | |
| Total number of potentials | 1 | |
| Pin spacing | 4 mm (0.157 in) | |
| Width | 3.4 mm / 0.134 in | |
| Height | 2.6 mm / 0.102 in | |
| Depth | 28 mm / 1.102 in | |
| Color | white | |
| Material group | I | |
| Insulating material | Polyamide 66 (PA 66) | |
| Flammability class per UL94 | V0 | |
| Contact material | Copper alloy | |
| Contact plating | silver-plated | |
| Fire load [MJ] | 0.001 | MJ |
| Weight [g] | 0.23 | g |
| Limit temperature range | -60 … 105 °C | |
| Packaging type | Box | |
| [mm] | 3.4 | mm |
| Pin spacing from [in] | 0.157 | in |
| Pin spacing from [mm] | 4 | mm |
| Main product function | Board-to-Board Link | |
| Product type | Accessories | |
| Suitable | for SMD PCB terminal blocks with push-buttons |
