Single Led PCB Terminals

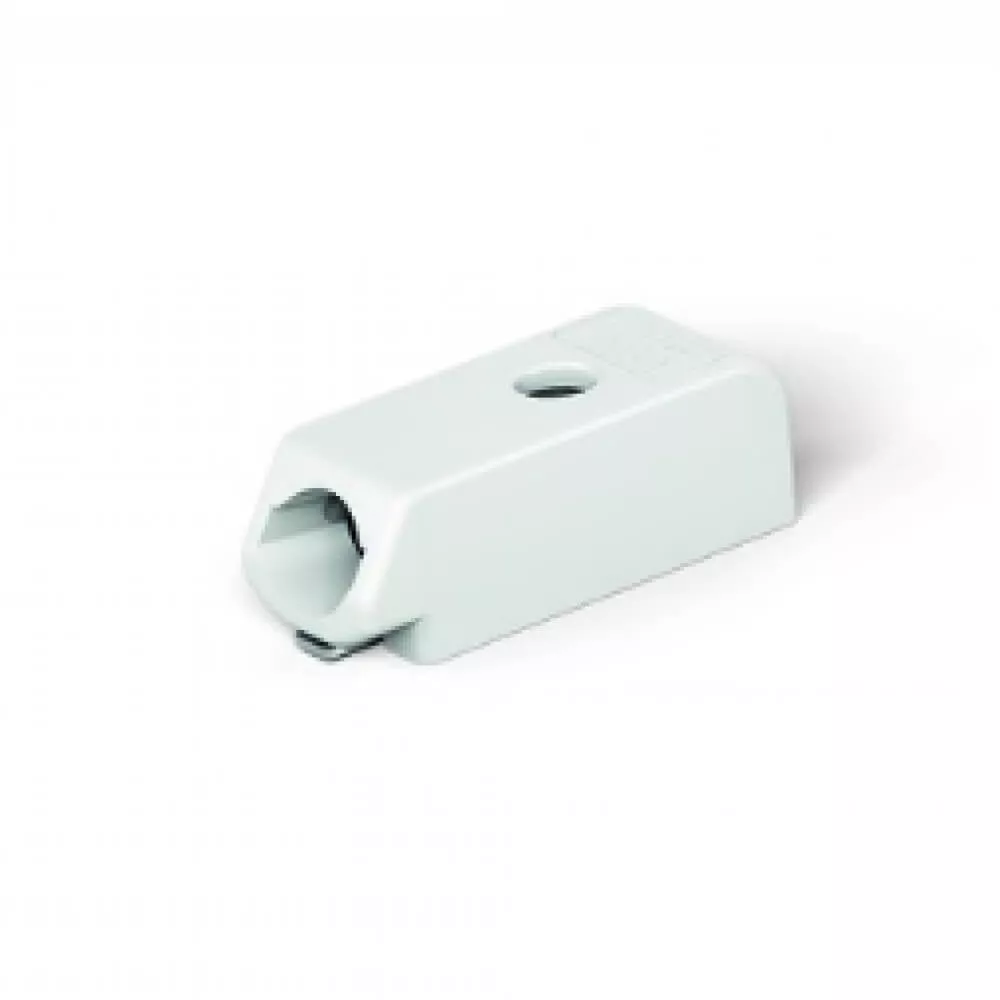

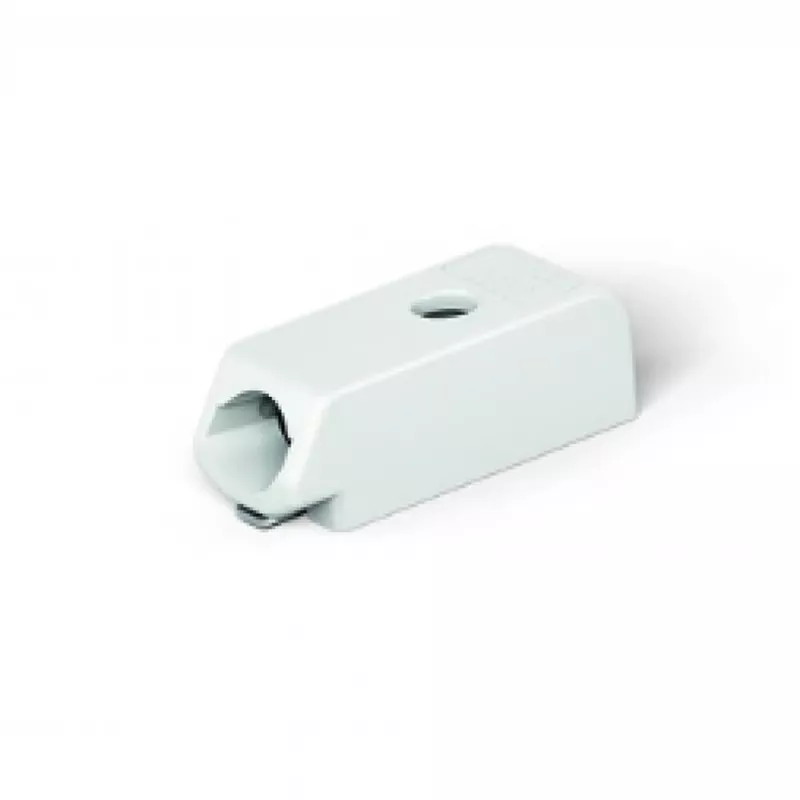

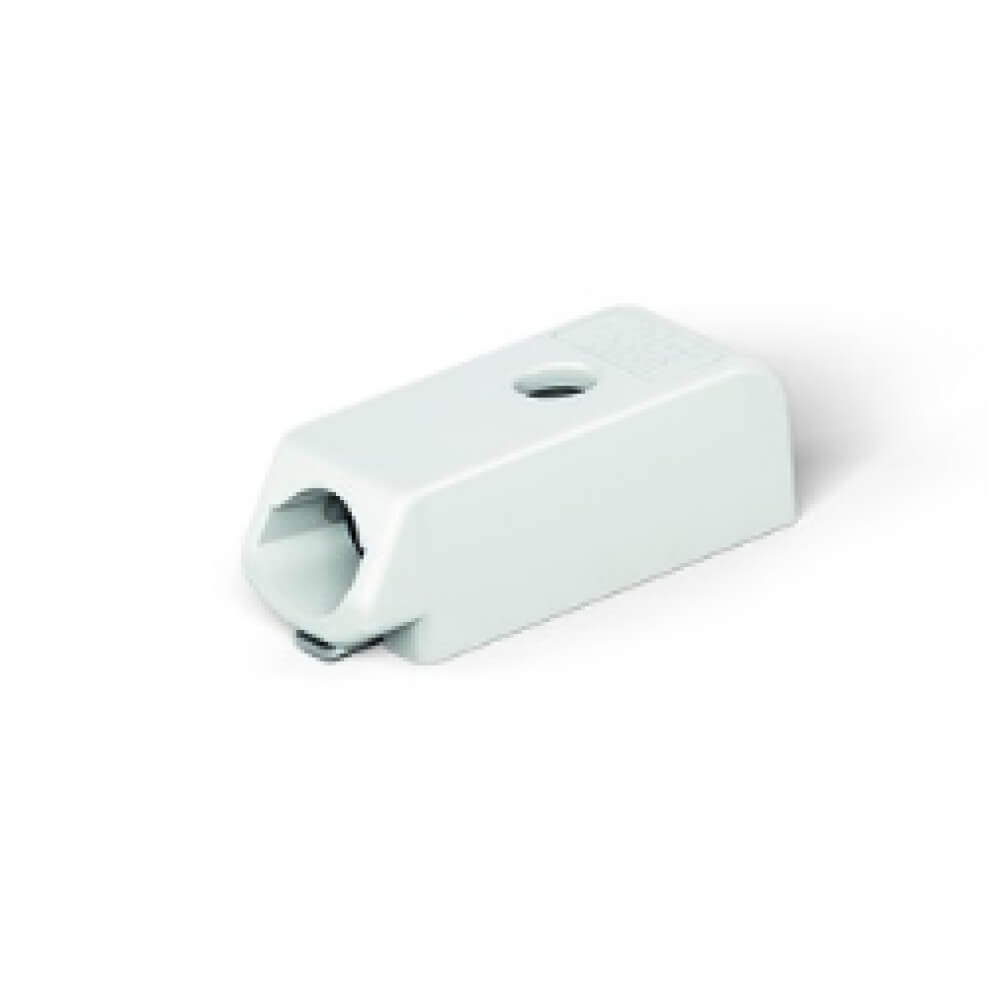

SMD PCB terminal; 0.5mm²; Pin pitch 3mm; 1 pole; PUSH WIRE®; in-band packaging
Product Description:

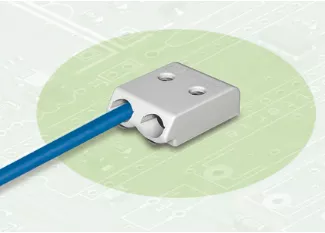

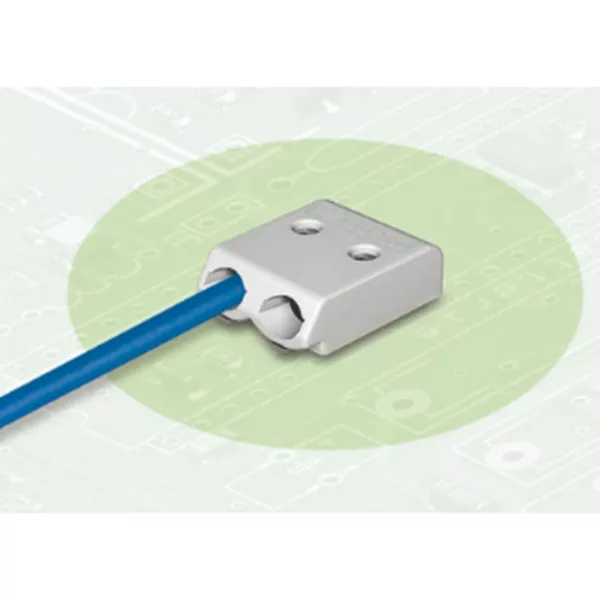

SMD terminal blocks with PUSH WIRE® connection technology
Push termination of solid wires
For example, easy conductor removal with the operating tool
Only 2.7mm high
Group editing can be done without losing any poles

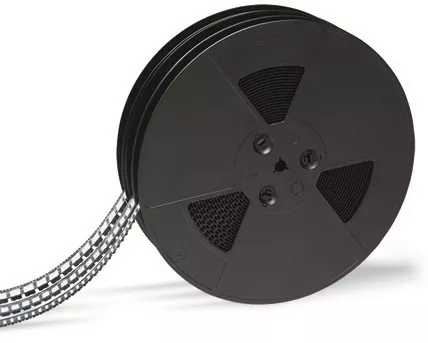

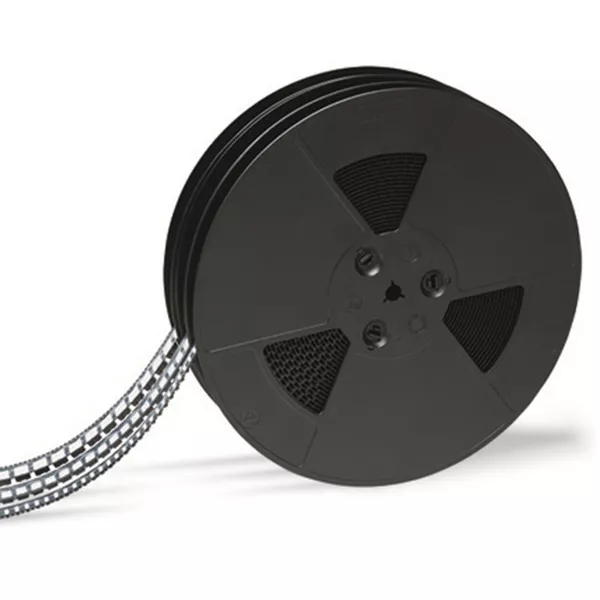

Available in tape and reel packaging for automatic assembly
Technical details
| Name | Value | Unit |
| Connection technology | PUSH WIRE® | |
| Actuation type | Operating tool | |
| Solid conductor | 0.14 … 0.34 mm² / 26 … 22 AWG | |
| Strip length | 4 … 5.5 mm / 0.16 … 0.22 Inch | |
| Solid conductor (2) | 0.5 mm² / 20 AWG | |
| Strip length (2) | 6 … 7.5 mm / 0.24 … 0.3 Inch | |
| No. of poles | 1 | |
| Total number of connection points | 1 | |
| Total number of potentials | 1 | |
| Number of connection types | 1 | |
| Number of levels | 1 | |
| Pin spacing | 3 mm (0.118 in) | |
| Width | 2.9 mm / 0.114 in | |
| Height | 2.7 mm / 0.106 in | |
| Depth | 7.9 mm / 0.311 in | |
| Reel diameter of tape-and-reel packaging [mm] | 330 | mm |
| Tape width [mm] | 16 | mm |
| PCB contact | SMD | |
| Color | white | |
| Material group | I | |
| Insulating material | Polyphtalamide (PPA GF) | |
| Flammability class per UL94 | V0 | |
| Contact material | Copper alloy | |
| Contact plating | tin-plated | |
| Weight [g] | 0.079 | g |
| Limit temperature range | -60 … 105 °C | |
| Packaging type | BOX | |
| [mm] | 2.9 | mm |
| Pin spacing from [in] | 0.118 | in |
| Pin spacing from [mm] | 3 | mm |
| Main product function | PCB terminal block | |
| Product type | PCB terminal blocks |
