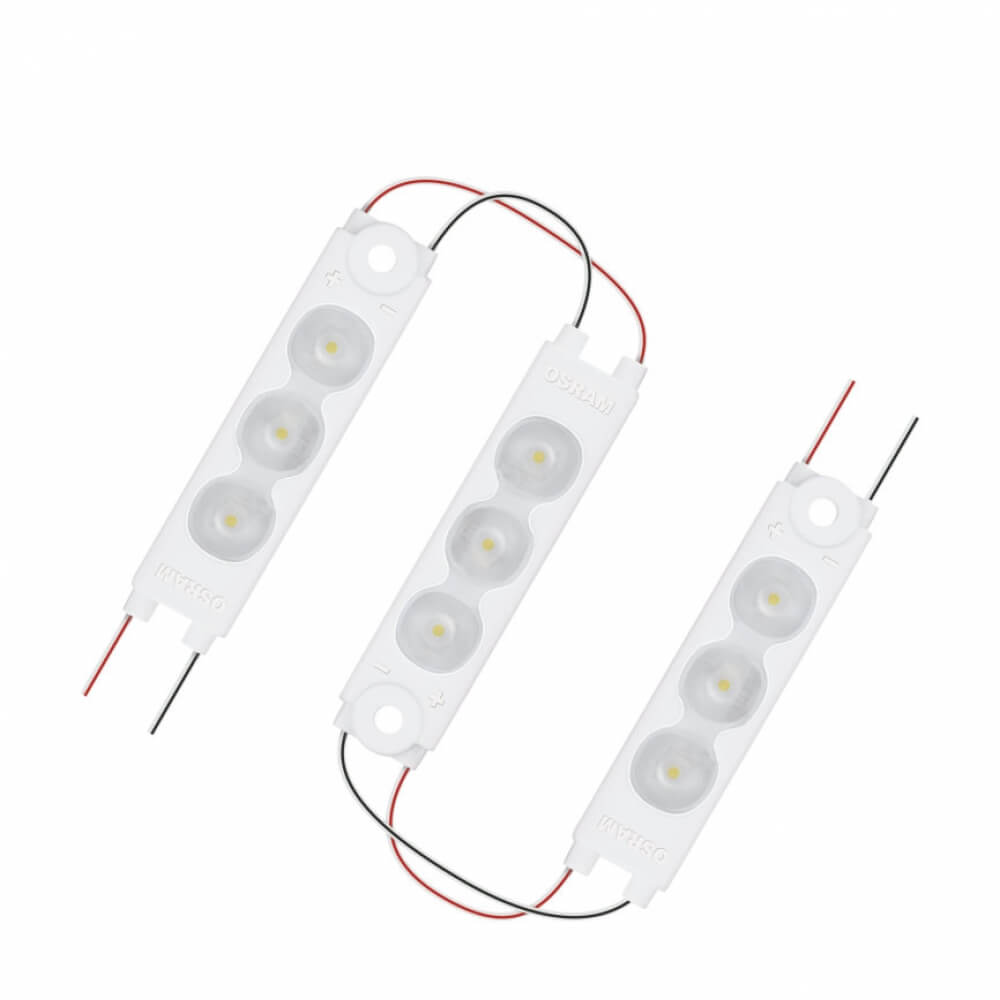

BackLED
Manufacturer : OSRAM DS
Category : Advertising Modules
– Connected by flexible cable
– 36 LED modules available in one chain set
– With IP66 protection
– CRI >80
– CE, ENEC, UL certified
– Working life(L70/B50): 50,000 hours
5 Years Warranty
Product features
| Product code | Voltage | Watts per Chain Set (W) | Watts (W) per LED module | Input Voltage Range (V) | Current Type | Color Temperature | CRI | Beam Angle | Light Color | Lumen per chain set | LED Lumen per Module | Usefulness | Number of LED modules per chain set | Length (mm) | Genişlik (mm) | Yükseklik (mm) |
| BA-L-PL 830 G3 | 1 | 46 | 1,31 | 12…13 | DC | 3000K | >80 | 155° | Warm white | 5400 lm | 150 lm | 115 lm/W | 36 | 76 | 17,6 | 7,8 |
| BA-L-PL 840 G3 | 12 | 46 | 1,31 | 12…13 | DC | 4000K | >80 | 155° | Neutral white | 5400 lm | 150 lm | 119 lm/W | 36 | 76 | 17,6 | 7,8 |
| BA-L-PL 865 G3 | 12 | 46 | 1,31 | 12…13 | DC | 6500K | >80 | 155° | Cool white | 5400 lm | 150 lm | 115 lm/W | 36 | 76 | 17,6 | 7,8 |
