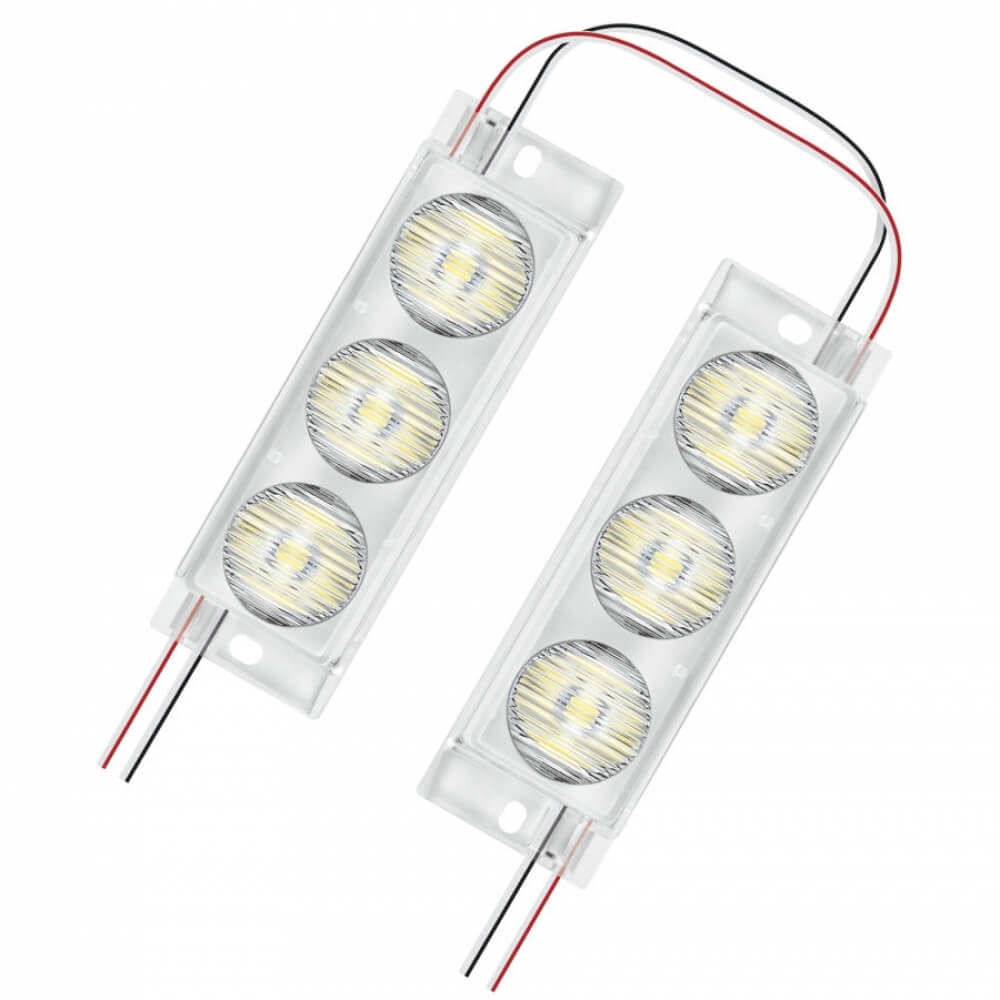

BoxLED
Manufacturer : OSRAM DS
Category : Advertising Modules
– Connected by flexible cable
– There are 32 LED modules in one chain set.
– With IP66 protection
– Even illumination with optimized elliptical lenses
– Usage Area: Signage and illuminated advertising, lighting of single and double sided light boxes
– Guaranteed for 5 Years.
Product Features
| Product code | Voltage | Watts per Chain Set (W) | Watts (W) per LED module | Input Voltage Range (V) | Current Type | Color Temperature | CRI | Beam Angle | Light Color | Lumen per chain set | LED Lumen per Module | -Usefulness | Number of LED modules per chain set | Length (mm) | Width (mm) | Height (mm) |
| BX-ECO-M-PL 830 | 24 | 99,8 | 3,1 | 23…25 | DC | 3000K | 12° x 60° | Warm white | 10474 lm | 327 lm | 105 lm/W | 32 | 110 | 35 | 25 | |
| BX-ECO-M-PL 840 | 24 | 99,8 | 3,1 | 23…25 | DC | 4000K | 12° x 60° | Neutral white | 10474 lm | 327 lm | 105 lm/W | 32 | 110 | 35 | 25 | |
| BX-ECO-M-PL 865 | 24 | 99,8 | 3,1 | 23…25 | DC | 6500K | 12° x 60° | Cool white | 10094 lm | 315 lm | 101 lm/W | 32 | 110 | 35 | 25 |
