OT 1-10V DIM IP 24V
Manufacturer : OSRAM DS
Category : Constant Voltage/Outdoor/Dimmable
Constant voltage 24V driver with 1-10V dimming and IP66-67 protection.
It is guaranteed for 5 years.
Product features
| Product code | Name of the product | Output Power | Output Voltage Range | Power Factor | Productivity | THD | Ripple | IP Protection | Length mm | Width mm | Height mm |
| 4052899545809 | OT 20/220-240/24 DIM P | 2 – 20 | 24 | 0,95 | 83 | <15 | <10 | IP 66 | 178 | 43 | 25 |

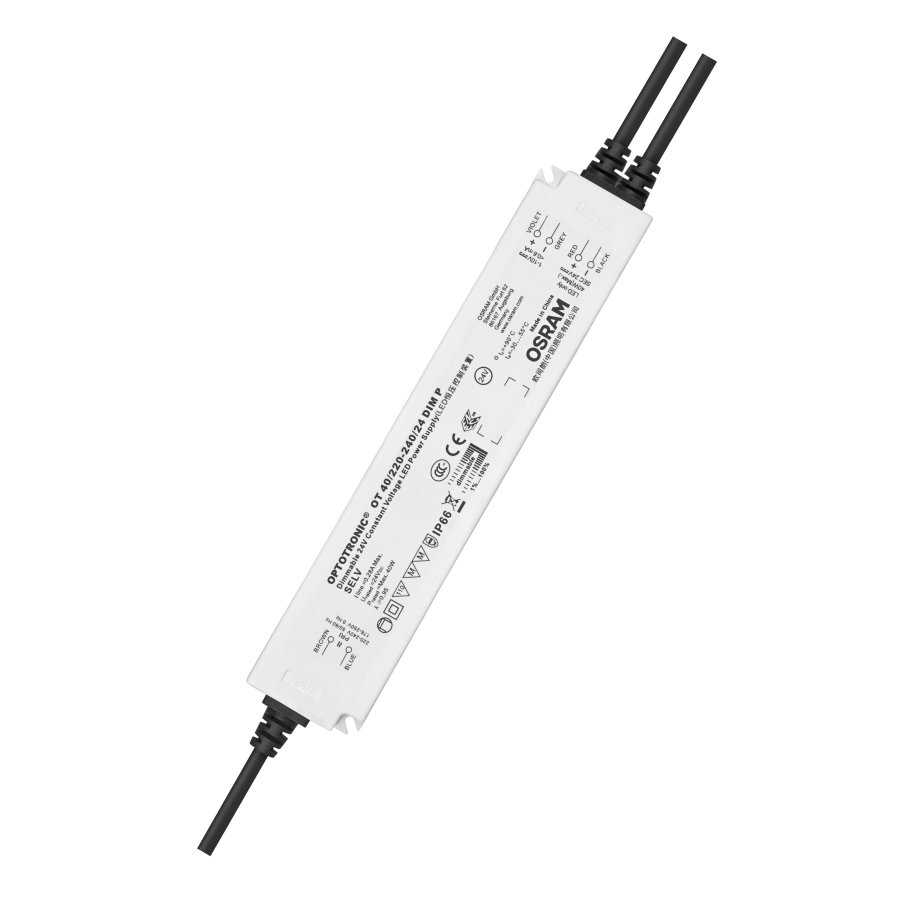

| 4052899545823 | OT 40/220-240/24 DIM P | 20 – 40 | 24 | 0,95 | 85 | <15 | <10 | IP 66 | 208 | 43 | 26 |
| 4052899545847 | OT 60/220-240/24 DIM P | 30 – 60 | 24 | 0,95 | 87 | <15 | <10 | IP 66 | 208 | 43 | 26 |

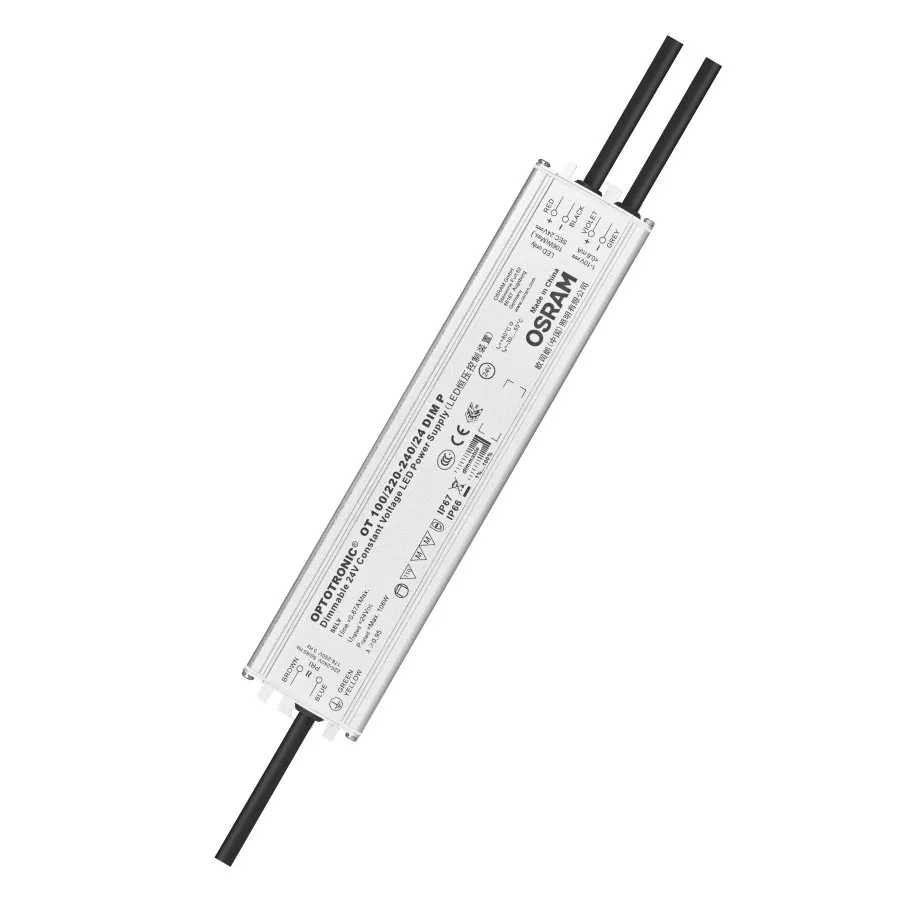

| 4052899545861 | OT 100/220-240/24 DIM P | 55 – 106 | 24 | 0,95 | 90 | <15 | <1,5 | IP 67 | 240 | 50 | 34 |

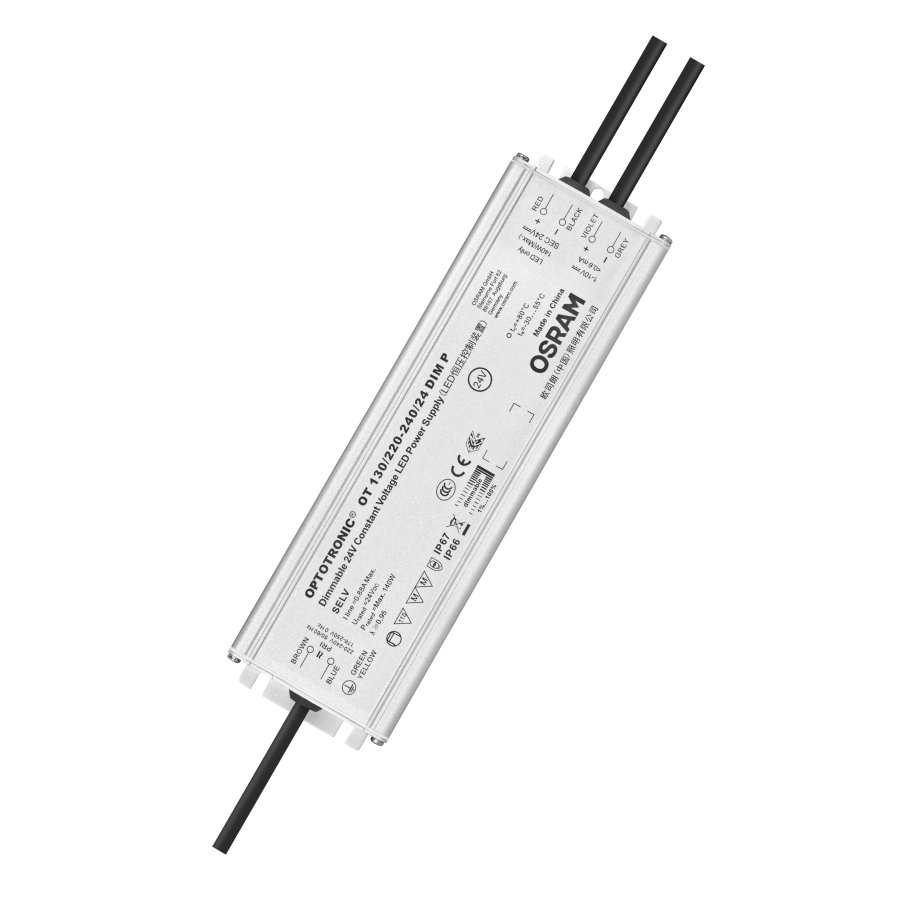

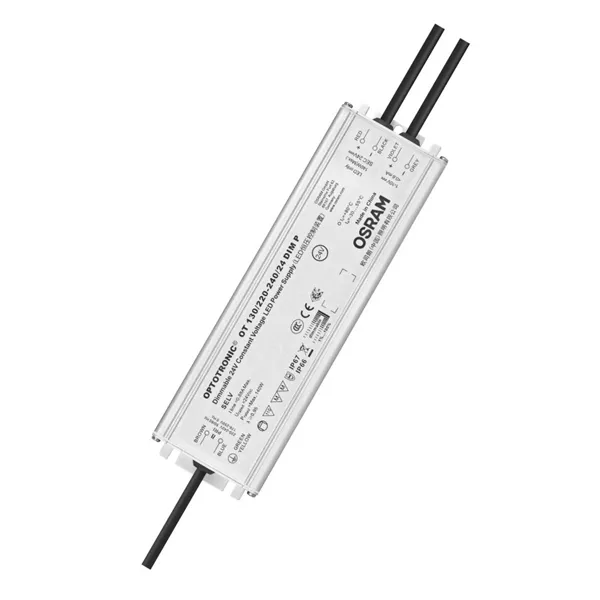

| 4052899545885 | OT 130/220-240/24 DIM P | 70 – 140 | 24 | 0,95 | 90,5 | <15 | <1,5 | IP 67 | 220 | 63 | 37 |

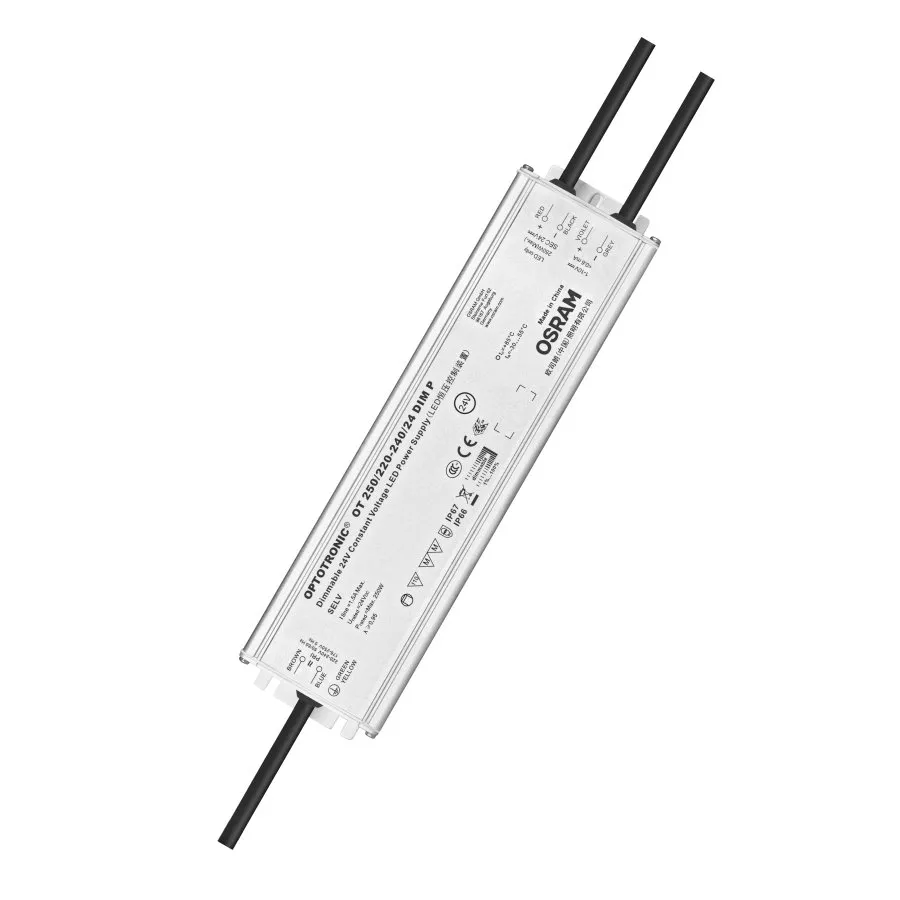

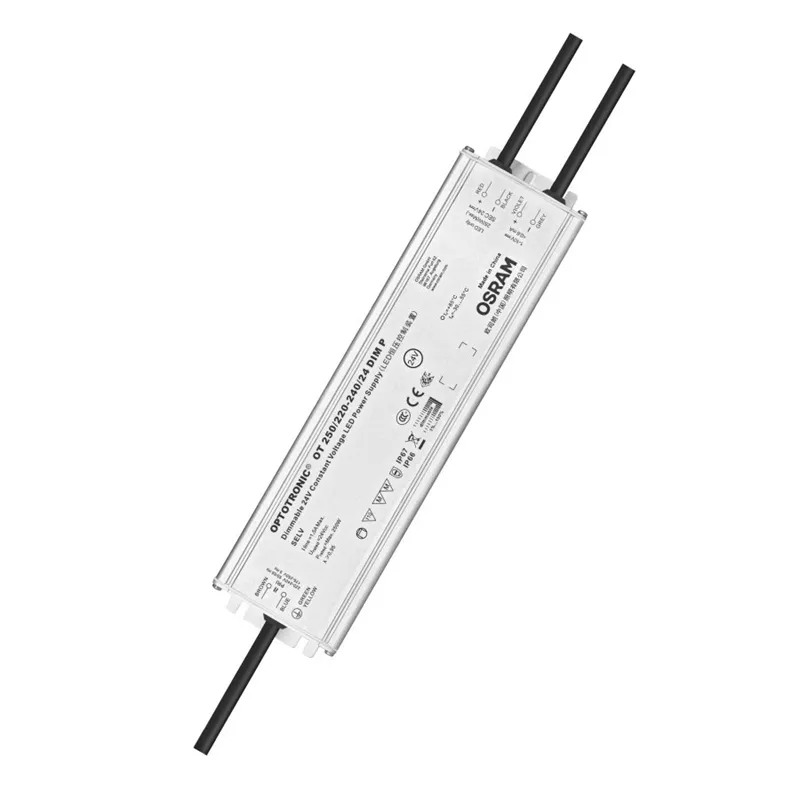

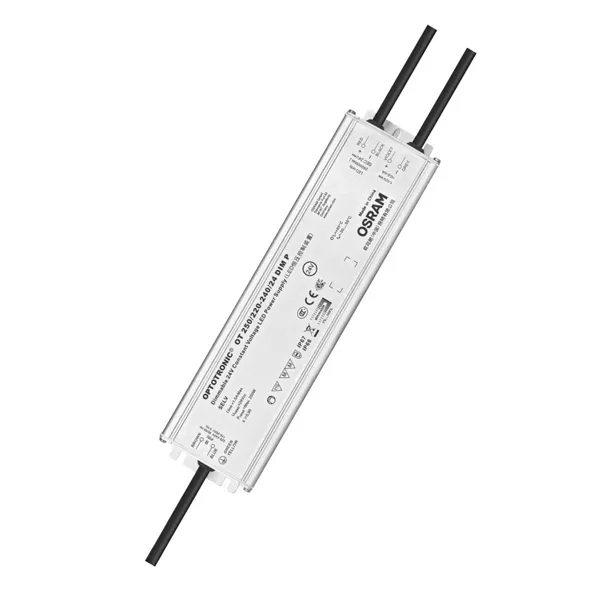

| 4052899545908 | OT 250/220-240/24 DIM P | 125 – 250 | 24 | 0,95 | 92 | <15 | <1,5 | IP 67 | 265 | 68 | 39,5 |
