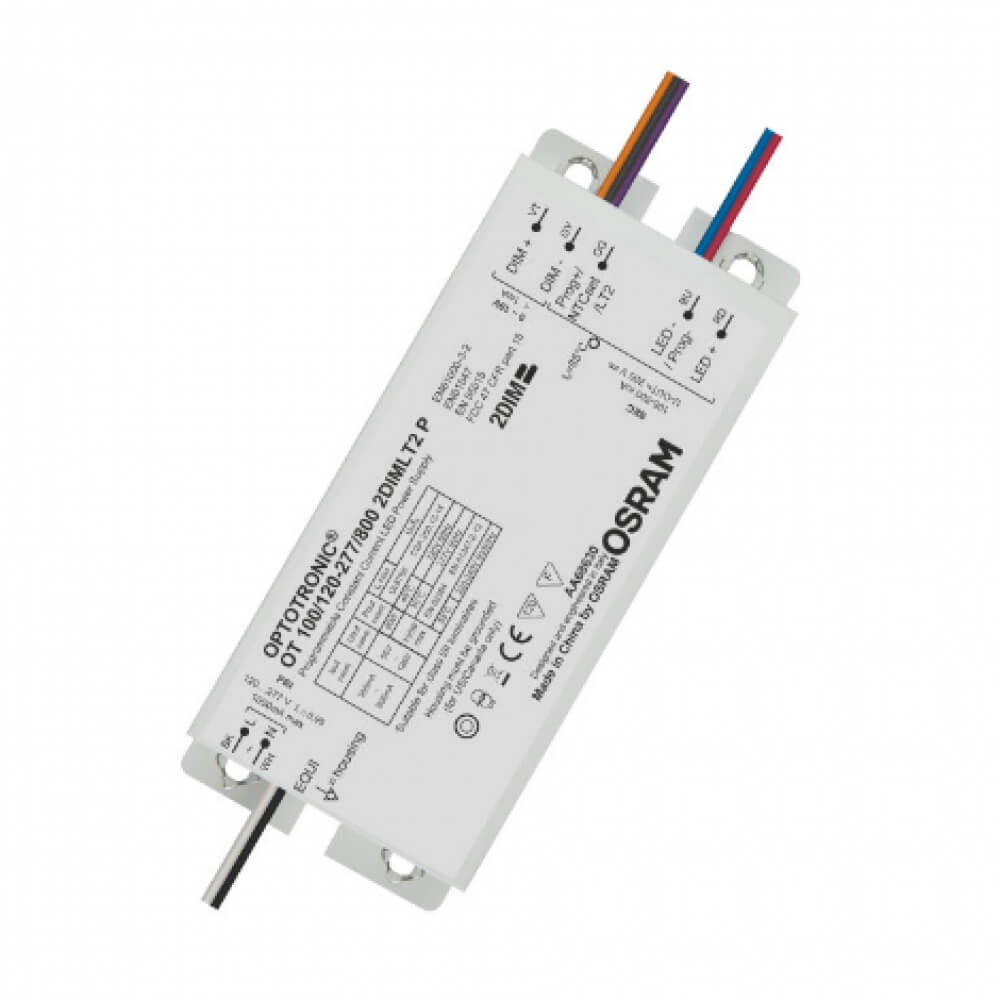

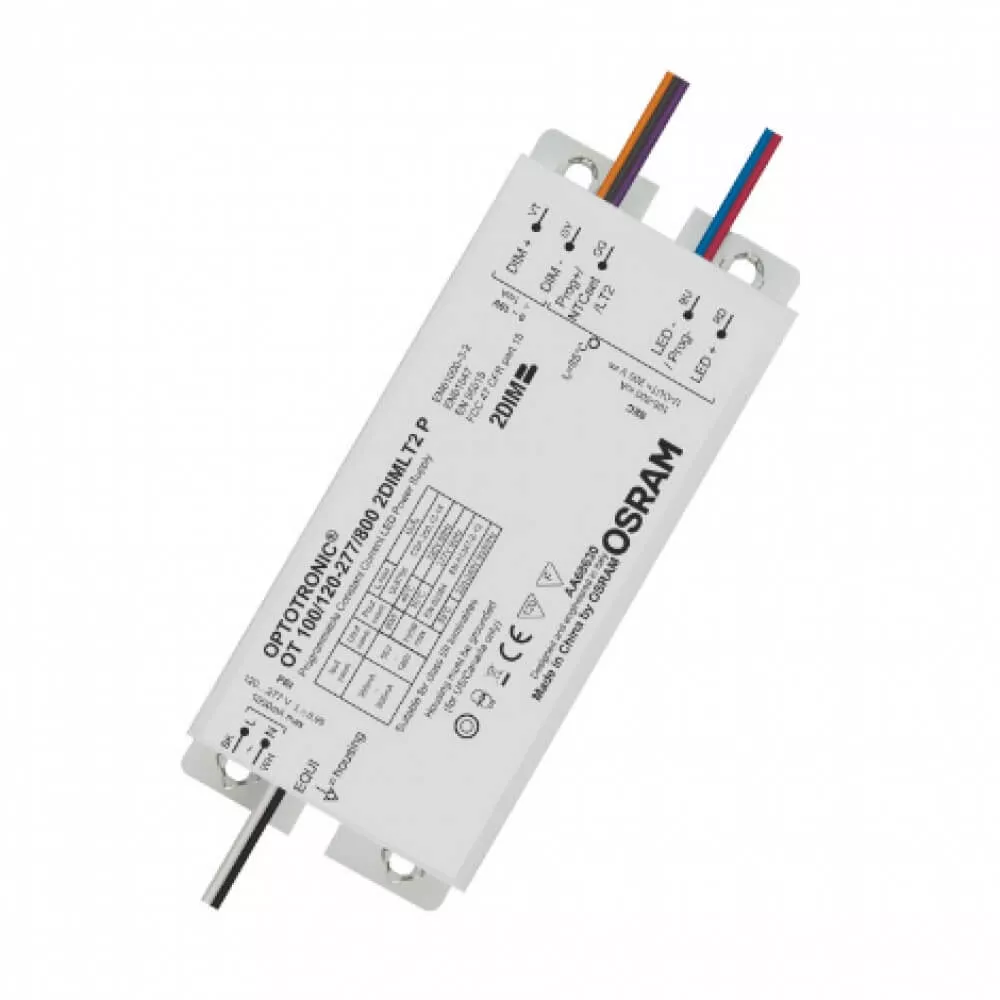

OT 100/120…277/800 2DIMLT2 P
Manufacturer : OSRAM DS
Category : Constant Current/Outdoor/Dimmable
Category : Constant Current/Outdoor/Dimmable
-
It is suitable for outdoor use, has 2 different dimming features in a single device (Astro Dim, 0-10V Dim), has 6kV high lightning protection and adjustable current between 350mA-800mA.
Click for detailed information about Astro Dim and 0-10V Dim Features.
It is suitable for mounting inside Class I or II luminaires.
It is guaranteed for 5 years.
Output Current: The current can be adjusted between 350mA-800mA.
Output Voltage: 50-186Vdc
Power Factor: >0,95Efficiency:> 90THD: <15Ripple: 25
Protection Class: IP64
Dimensions:
L:168mm | W:68mm | H:38mm |
