OT 24V IP Driver

Manufacturer : OSRAM DS
Category : Constant Voltage/Outdoor/Non-Dimmable

Product Specs

Constant voltage 24V drivers with IP66-67 protection.
It is guaranteed for 5 years.

Product code	Name of the product	Output Power	Output Voltage Range	Power Factor	Productivity	THD	Ripple	IP Protection	Length mm	Width mm	Height mm
4052899545922	OT 20/220-240/24 P	2 – 20	24	0,95	83	<15	<10	IP 66	178	43	25

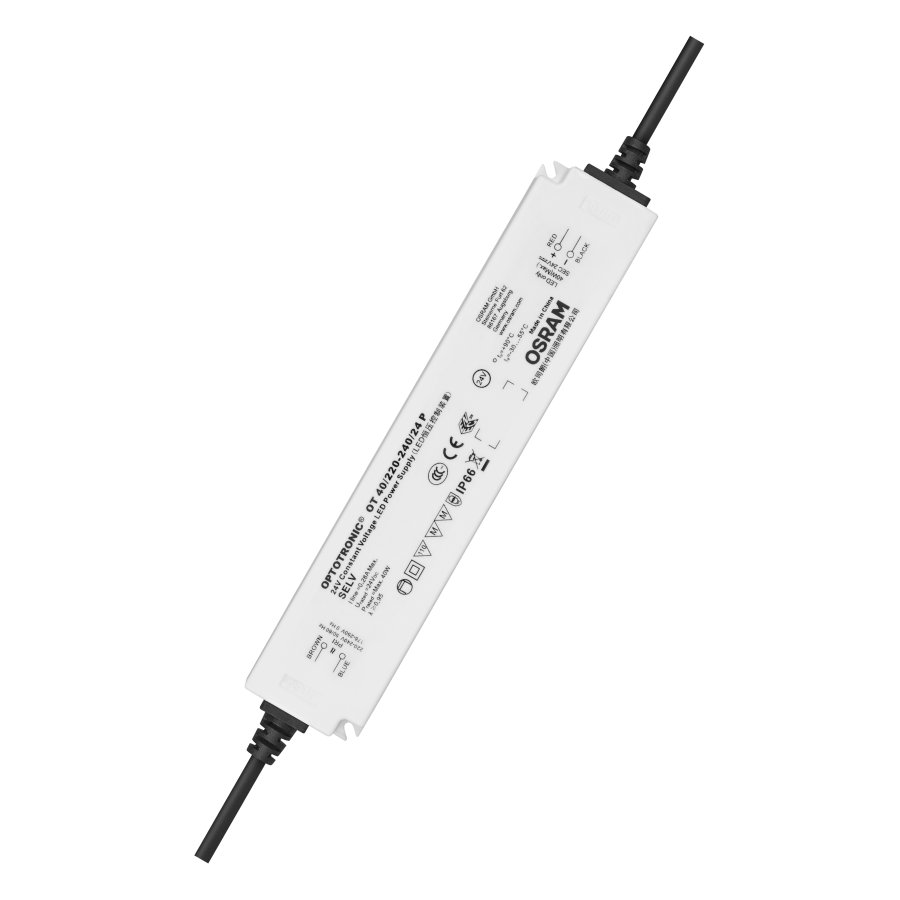

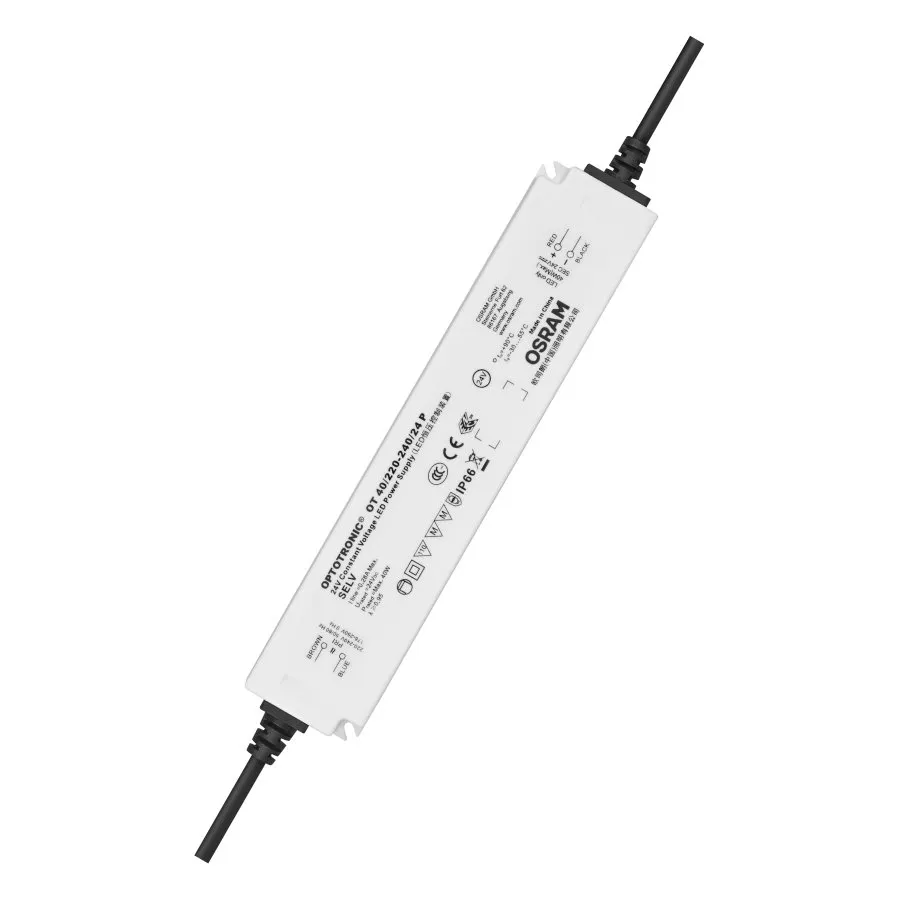

4052899545946	OT 40/220-240/24 P	20 – 40	24	0,95	85	<15	<10	IP 66	208	43	26

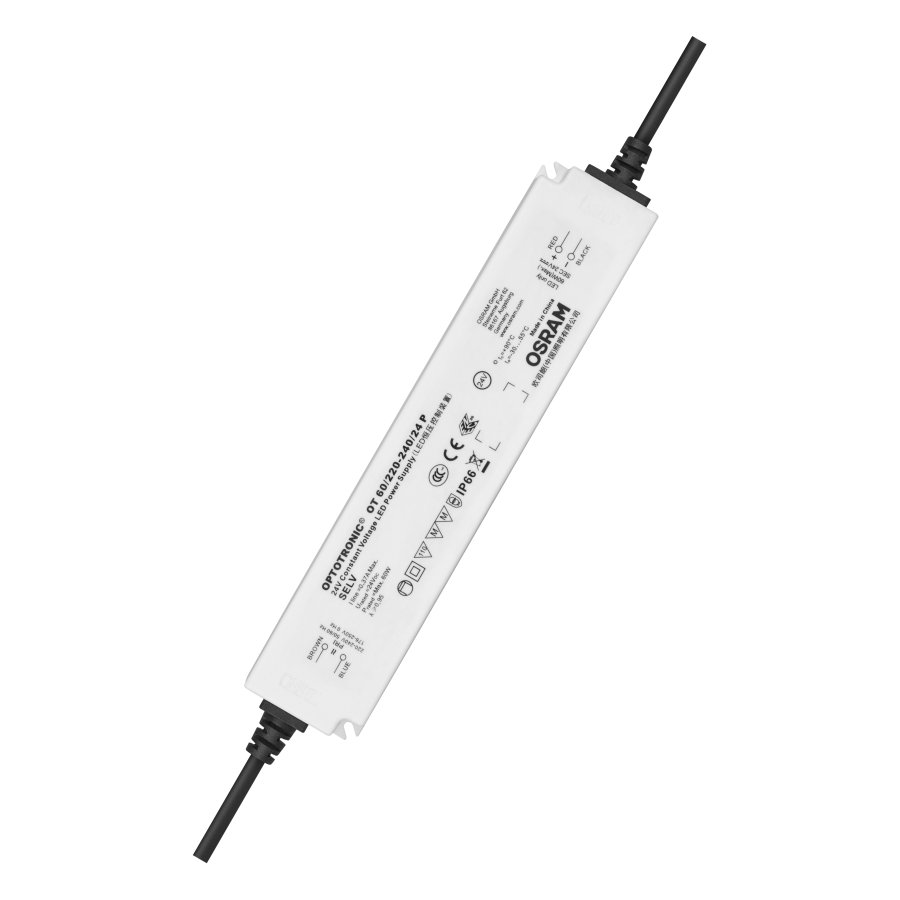

4052899545960	OT 60/220-240/24 P	30 – 60	24	0,95	87	<15	<10	IP 66	208	43	26
4052899545984	OT 100/220-240/24 P	55 – 106	24	0,95	90	<15	<1,5	IP 67	240	50	34

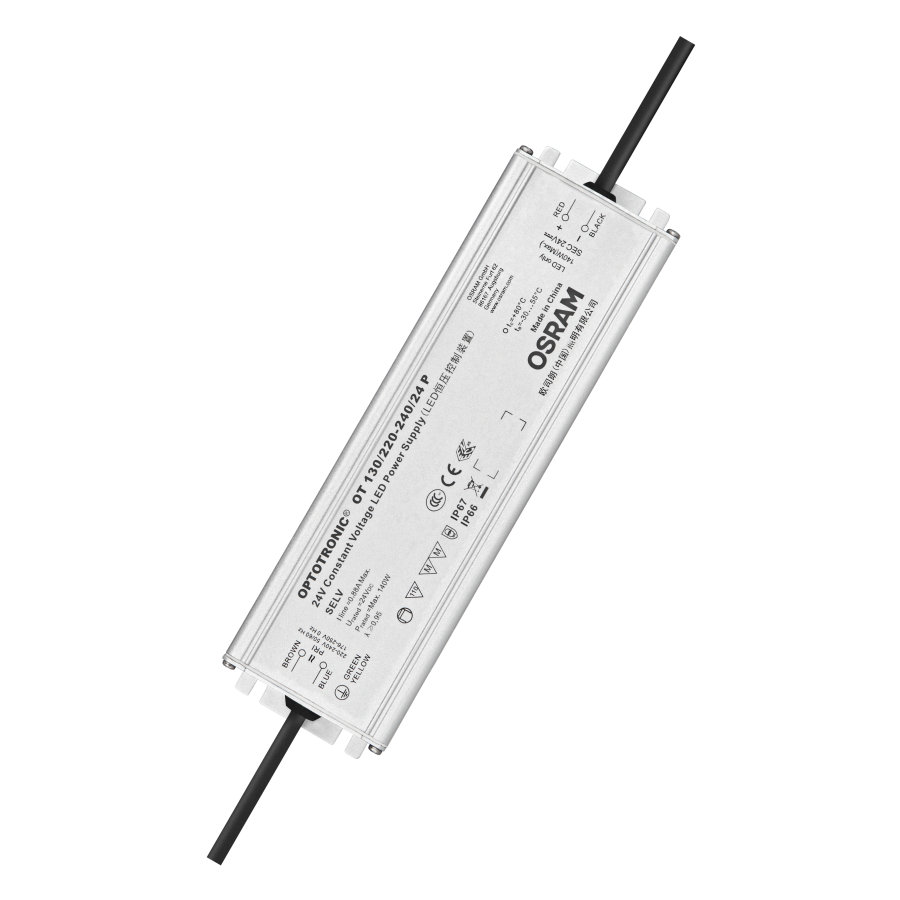

4052899546004	OT 130/220-240/24 P	70 – 140	24	0,95	90,5	<15	<1,5	IP 67	220	63	37

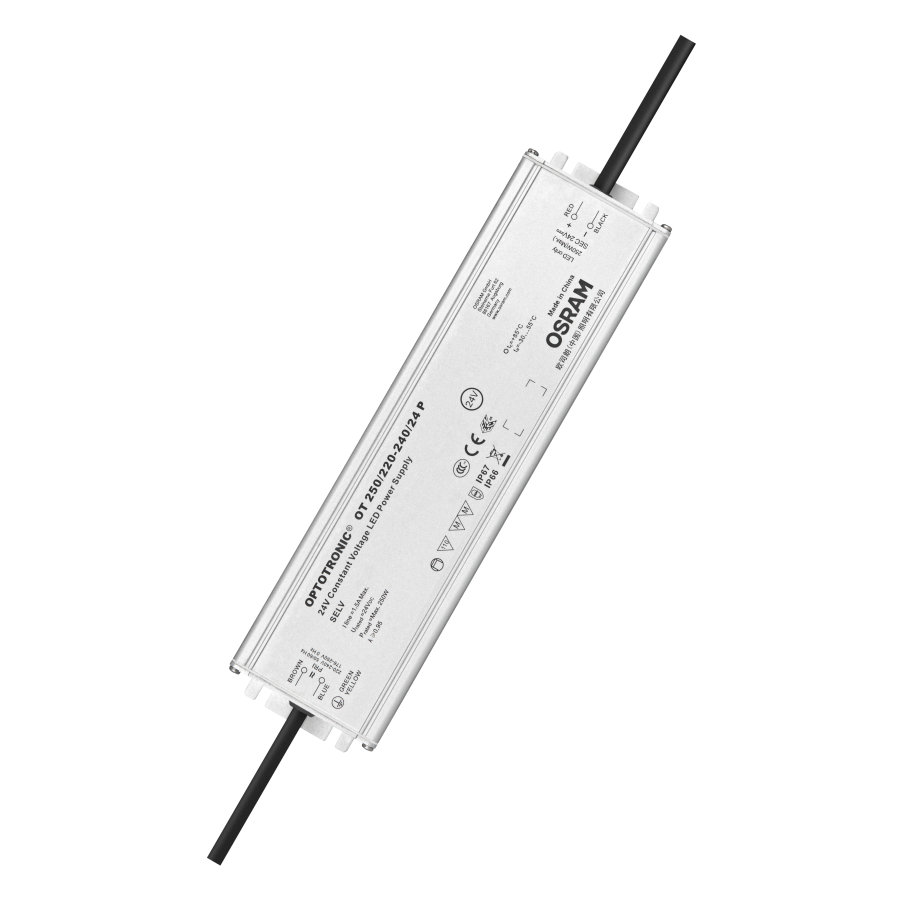

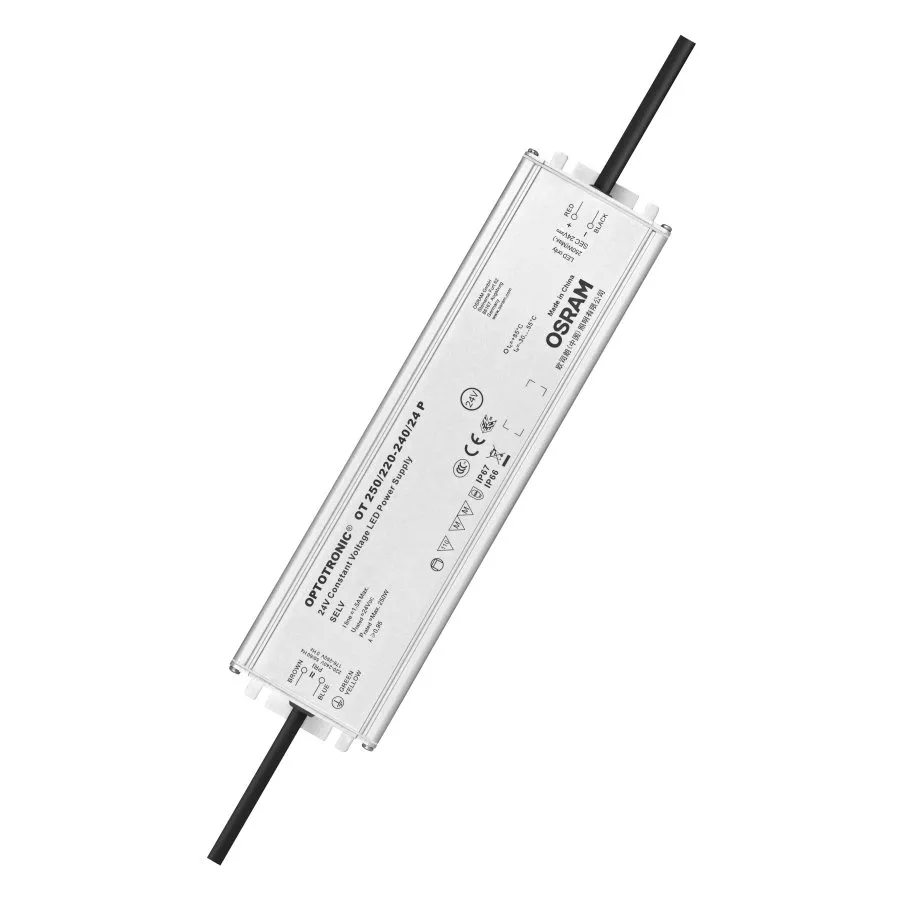

4052899546028	OT 250/220-240/24 P	125 – 250	24	0,95	92	<15	<1,5	IP 67	265	68	39,5
