OT 4DIM G2 Outdoor - NFC
Manufacturer : OSRAM DS
Category : Constant Current/Outdoor/Dimmable
IP54 and above, suitable for street, park & garden lighting, incorporating 4 different dim features in a single device (Astro Dim, Step Dim, Phase Dim, Dali Dim), high lightning protection (up to 10kV (1pulse) / 6kV) and 200mA – Drivers with adjustable current between 1050mA. It has the feature of programming with NFC.
Suitable for Class I or II luminaires.
It is guaranteed for 5 years.
Product features
| Product code | Name of the product | Output Power | Output Current Range | Output Voltage Range | Power Factor | Productivity | THD | Ripple | IP Protection | Length mm | Width mm | Height mm |

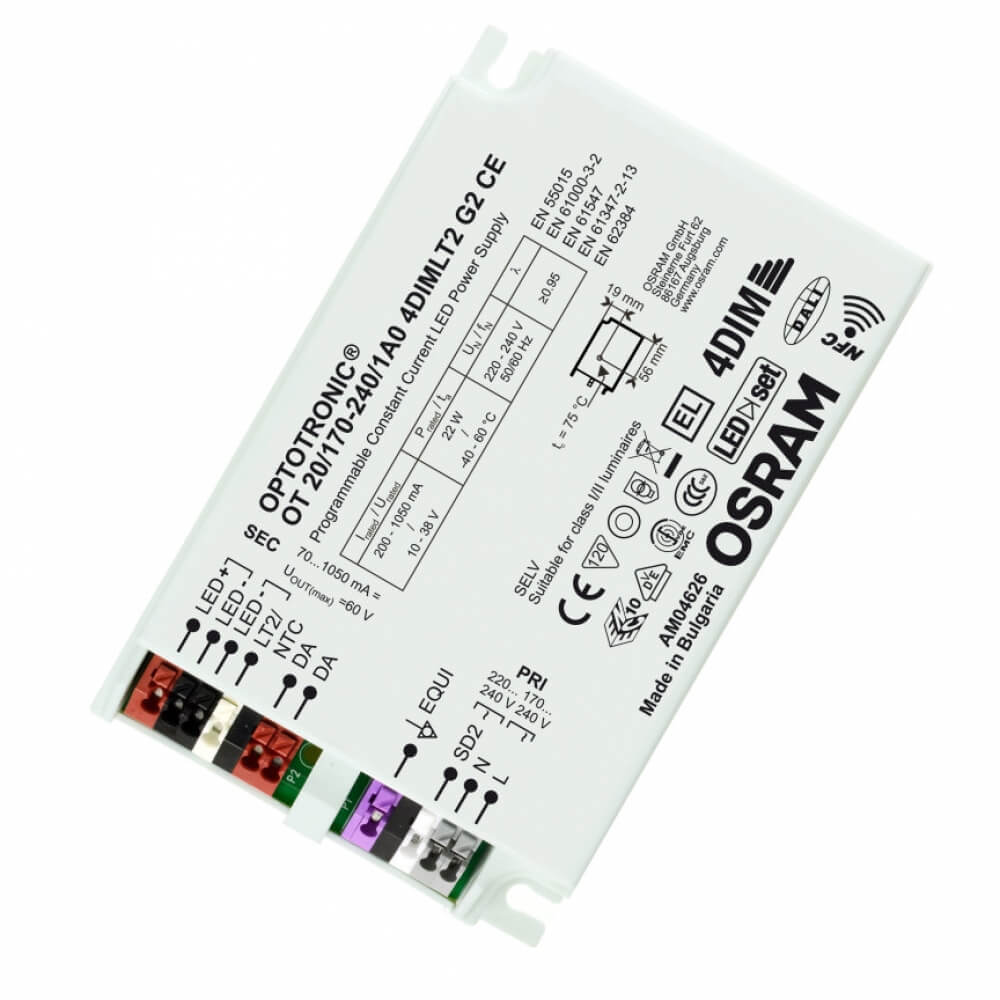

| 4052899981928 | OT 20/170-240/1A0 4DIMLT2 G2 CE | 2…100 | 200…1050 | 10…38 | >0,95 | 87 | <10 | <5 | IP 20 | 123 | 79 | 33 |

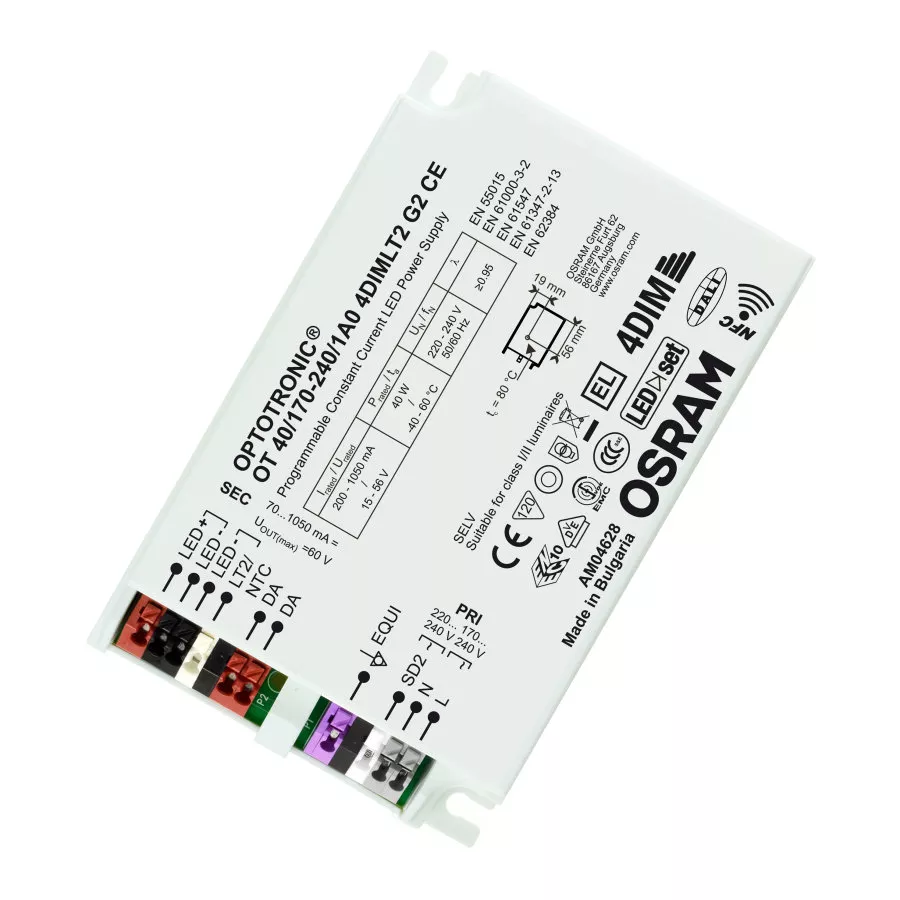

| 4052899981935 | OT 40/170-240/1A0 4DIMLT2 G2 CE | 3…100 | 200…1050 | 15…56 | >0,95 | 90 | <10 | <5 | IP 20 | 123 | 79 | 33 |

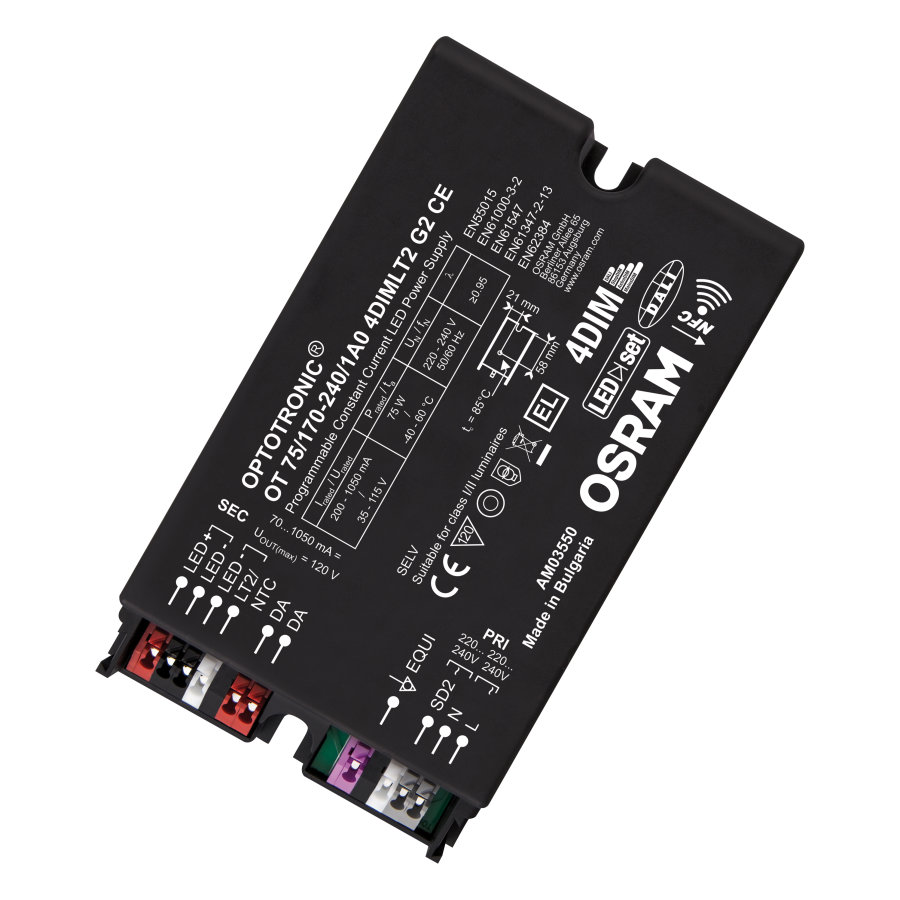

| 4052899981942 | OT 75/170-240/1A0 4DIMLT2 G2 CE | 7…100 | 200…1050 | 35…115 | >0,98 | 93 | <5 | <6 | IP 20 | 133 | 77 | 40 |

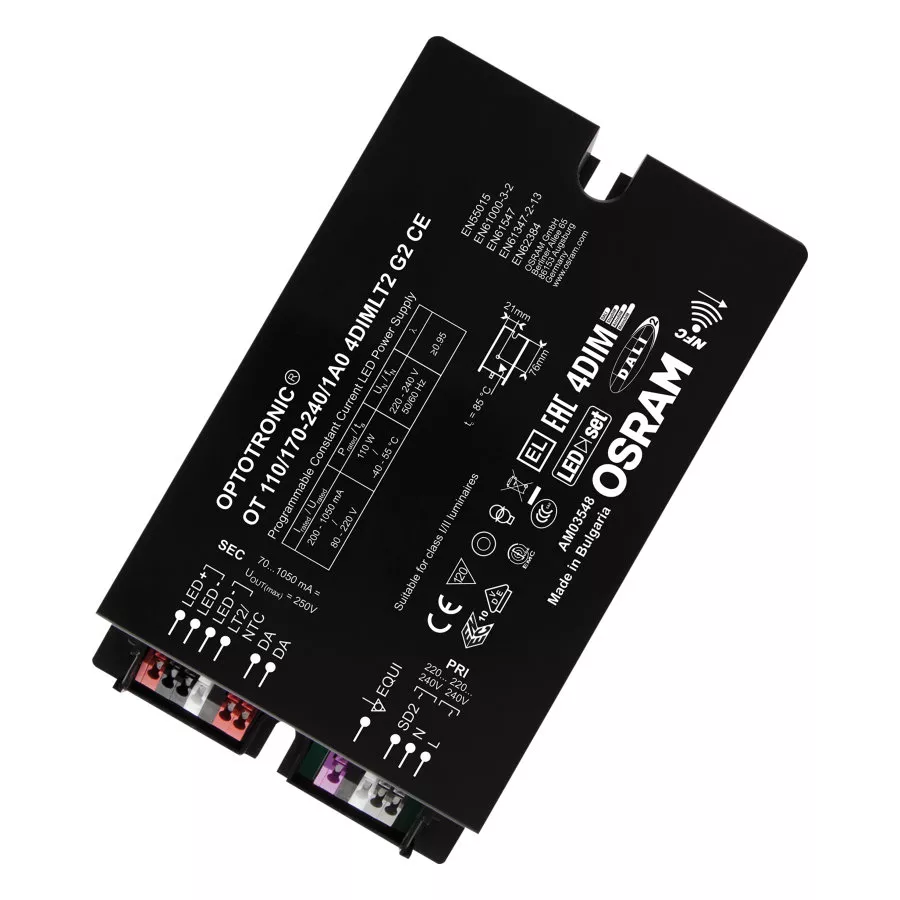

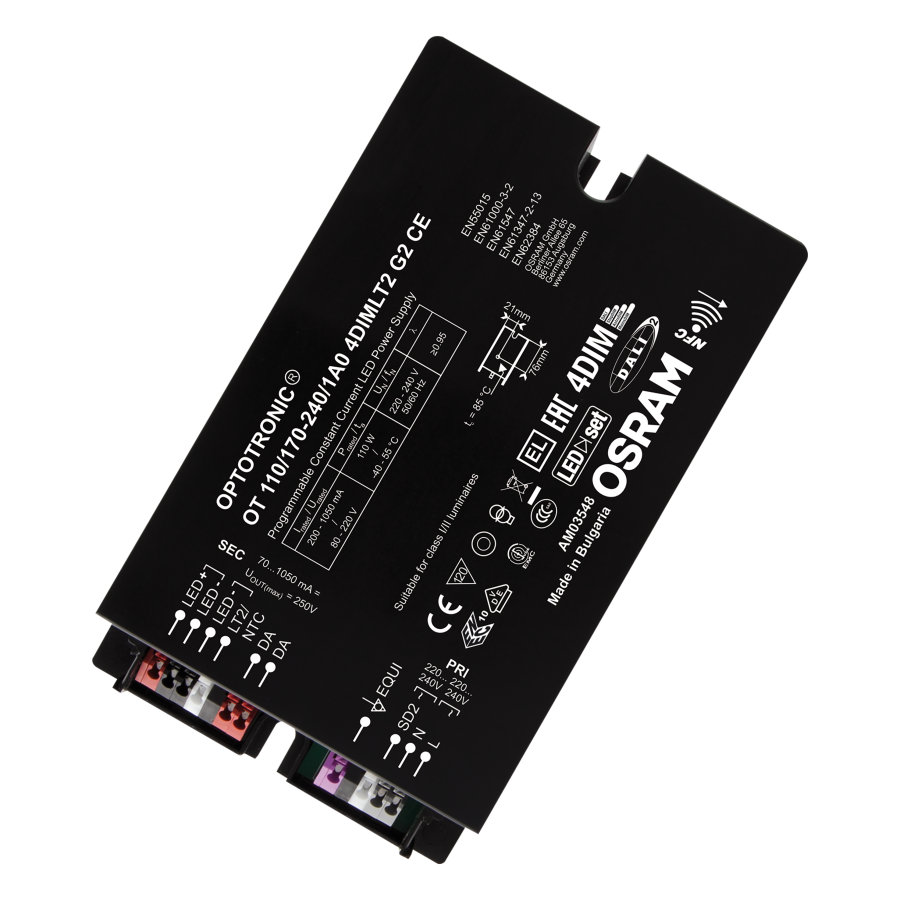

| 4052899981959 | OT 110/170-240/1A0 4DIMLT2 G2 CE | 16…100 | 200…1050 | 80…220 | >0,98 | 93 | <10 | <5 | IP 20 | 150 | 90 | 40 |
