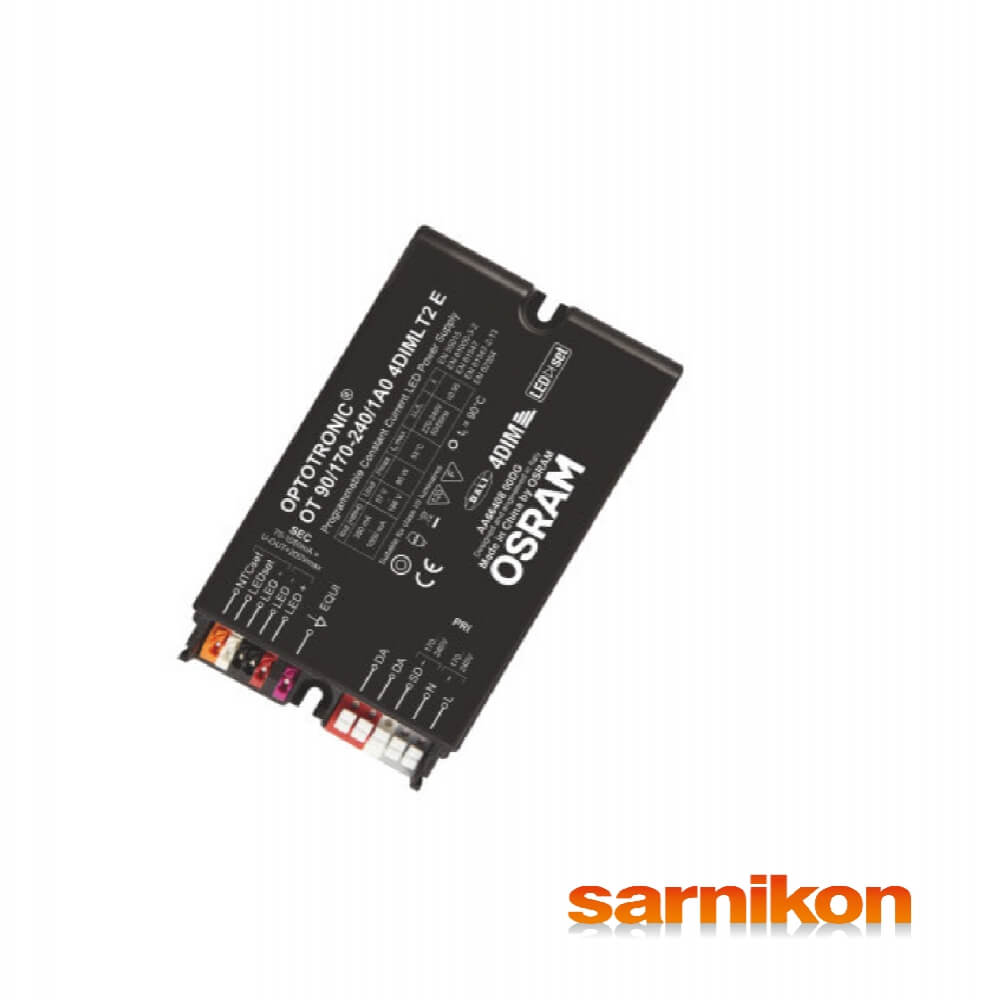

OT 90/170…240/1A0 4DIMLT2 E

IP54 and above, suitable for street, park & ​​garden lighting, incorporating 4 different dim features in a single device (Astro Dim, Step Dim, Phase Dim, Dali Dim), high lightning protection (up to 10kV (1pulse) / 8kV and 350mA- It has adjustable current features between 1050mA.

Click for detailed information about Astro Dim and Other 4DIM Features.

It is suitable for mounting inside Class I or II luminaires.

It is guaranteed for 5 years.

Output Current: The current can be adjusted between 350mA-1050mA.

Output Voltage: 57-186Vdc

Power Factor: >0,95Efficiency: 91,5THD: <10Ripple: 25

Protection Class: IP20

Dimensions:
