OT DEXAL Outdoor- 2020 NEW SERIES
Manufacturer : OSRAM DS
Category : Constant Current/Outdoor/Dimmable
Suitable for outdoor lighting applications with DEXAL feature.
– High Voltage Protection: Up to 10kV (Conforms to Class I and II protection classes.)
– Zhaga Book18 compatible and D4i certified (Parts 25x + AUX)
– Fixed Lumen Output (CLO) Feature
– Featuring DEXAL, AstroDIM, StepDIM
It is guaranteed for 5 years.
Ürün Özellikleri
| Product code | Name of the product | Output Power | Output Current Range | Output Voltage Range | Power Factor | Productivity | THD | Ripple | IP Protection | Length mm | Width mm | Height mm |

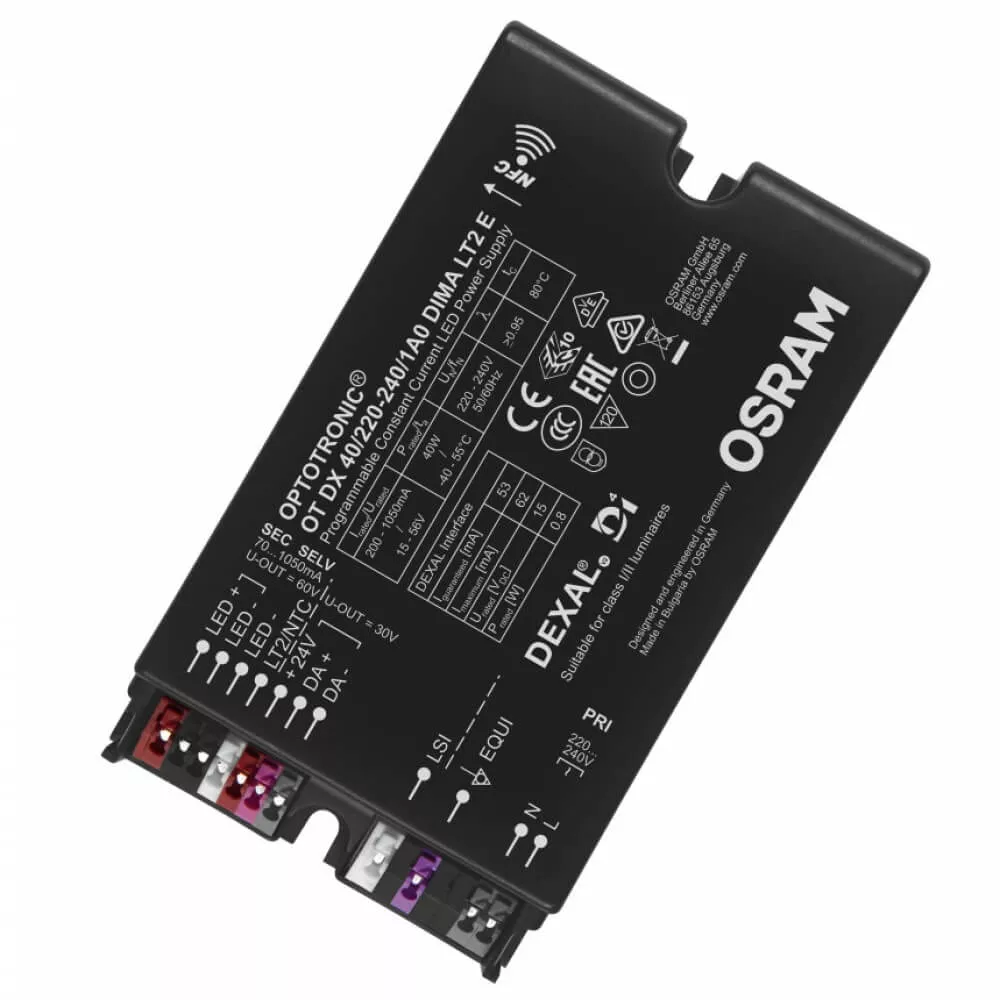

| 4052899999664 | OT DX 40/220-240/1A0 DIMA LT2 E | 3 – 40W | 200 mA – 1050 mA | 15 – 56Vdc | 0,95 | 89 | <10 | 10 | IP 20 | 133 | 77 | 40 |
| 4052899999671 | OT DX 75/220-240/1A0 DIMA LT2 E | 7 – 75W | 200 mA – 1050 mA | 35 – 115Vdc | 0,95 | 93 | <10 | 10 | IP 20 | 150 | 90 | 40 |

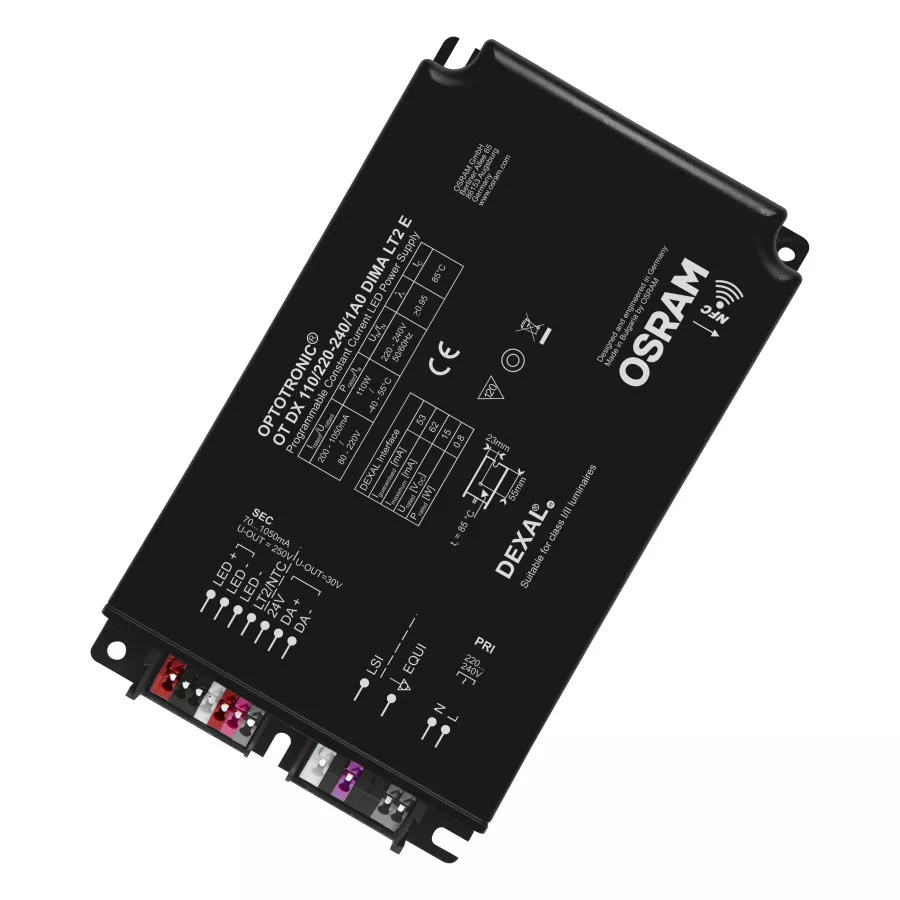

| 4052899999688 | OT DX 110/220-240/1A0 DIMA LT2 E | 16 – 110W | 200 mA – 1050 mA | 80 – 220Vdc | 0,95 | 93 | <10 | 10 | IP 20 | 170 | 100 | 40 |
| 4052899999695 | OT DX 165/220-240/1A0 DIMA LT2 E | 26 – 165W | 200 mA – 1050 mA | 130 – 260Vdc | 0,95 | 94 | <10 | 10 | IP 20 | 170 | 100 | 40 |
