OTI DALI 24V Driver
Manufacturer : OSRAM DS
Category : Constant Voltage/Indoor/Dimmable
Linear type constant voltage drivers with DALI feature, 2 and 4 channel models. Ideal for lighting applications such as concealed lighting, hallway lighting and wallwashers.
It can be dimmed in the range of -0…100%.
– Suitable for Class I and II luminaires.
It is guaranteed for 5 years.
Product code | Name of the product | Output Power | Output Voltage Range | Power Factor | Productivity | THD | Ripple | IP Protection | Length mm | Width mm | height mm |
4052899452916 | OTi DALI 50/220-240/24 1-4CH | 0 – 50 | 24 | 0,98 | 92 | <5 | <5 | IP 20 | 345 | 32 | 22 |

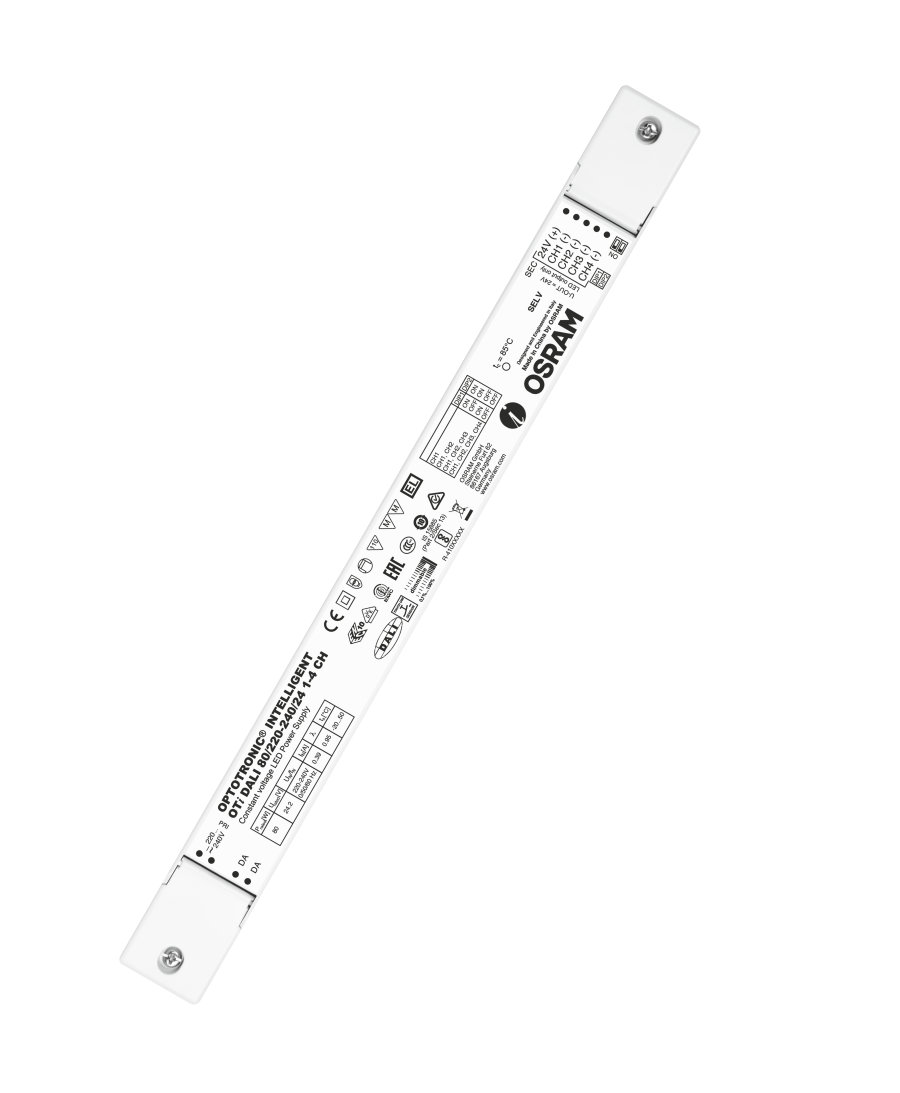

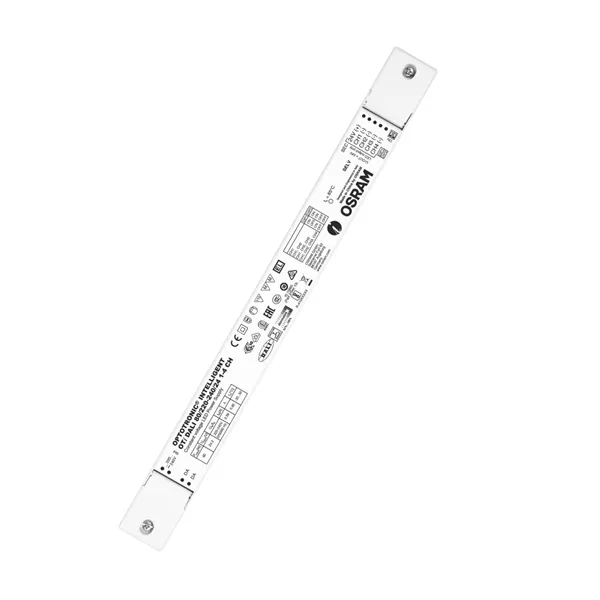

4052899452893 | OTi DALI 80/220-240/24 1-4CH | 0 – 80 | 24 | 0,98 | 93 | <5 | <5 | IP 20 | 345 | 32 | 22 |

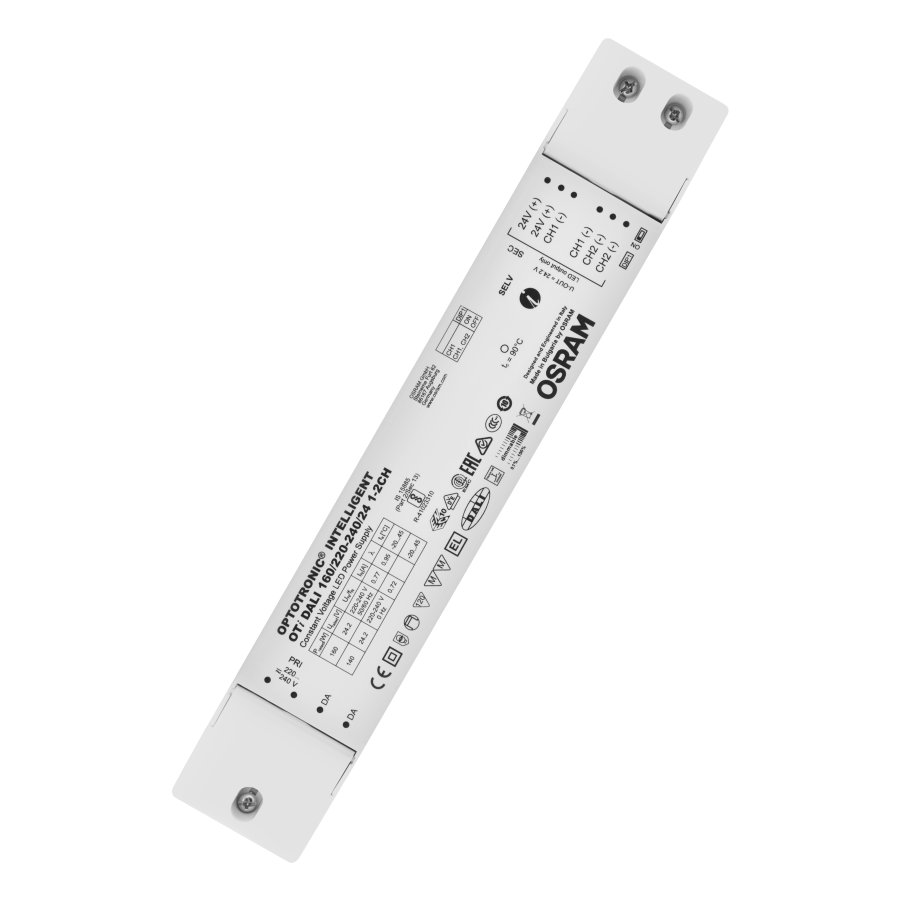

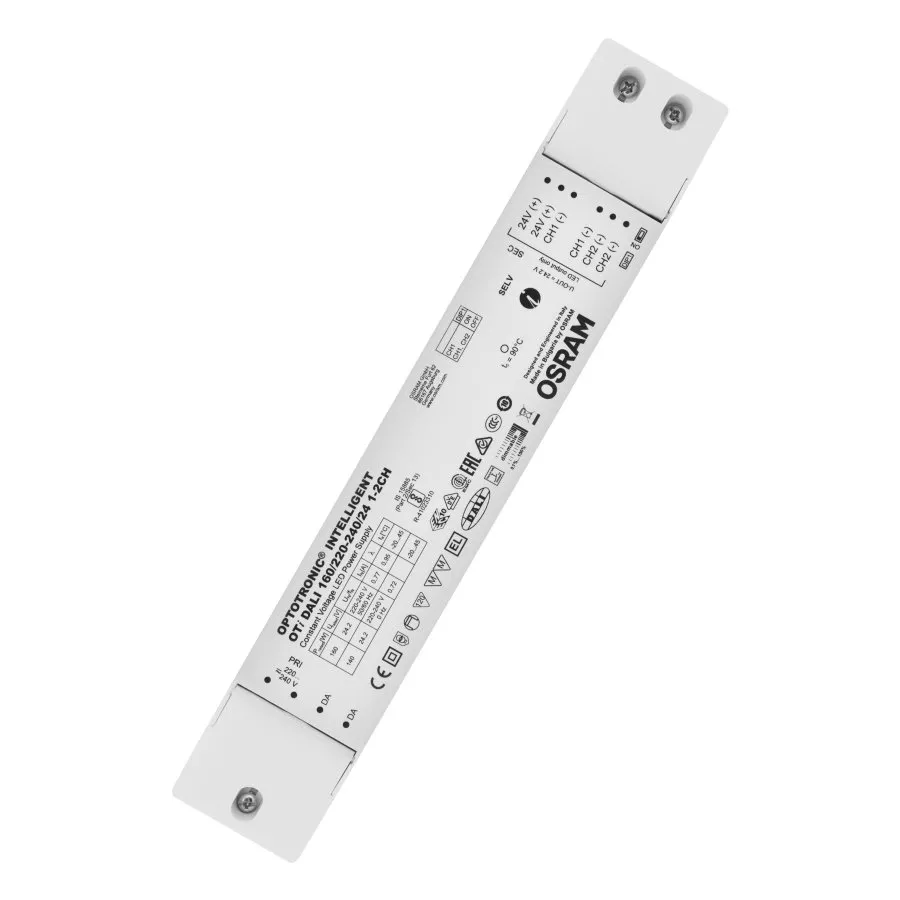

4052899986305 | OTi DALI 160/220-240/24 1-2CH | 0 – 160 | 24 | 0,99 | 93 | <5 | <5 | IP 20 | 300 | 50 | 35 |

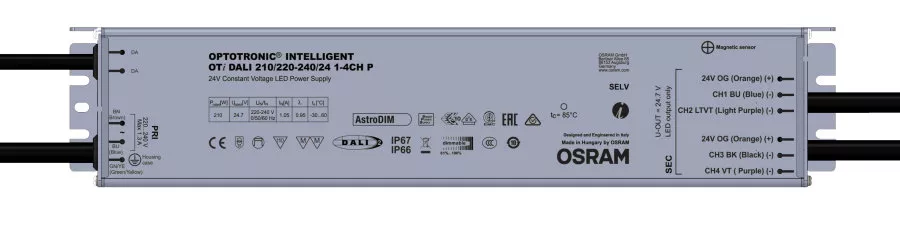

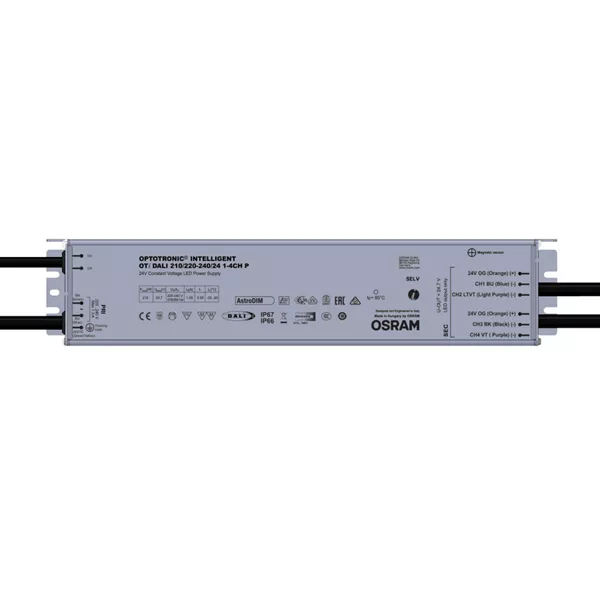

4062172032087 | OTi DALI 210/220-240/24 1-4CH | 0 – 210 | 24 | >0,95 | 93 | <5 | <5 | IP 66/IP 67 | 330 | 69 | 37 |
