OTi DALI Linear (non-isolated)
Manufacturer : OSRAM DS
Category : Constant Current Linear/Indoor/Dimmable
A family of linear drivers with DALI feature, current adjustable with resistor. It is suitable for all interior lighting applications such as office lighting, shop lighting, warehouse lighting.
-Fully programmable by software (DALI Interface)
– Suitable for Class I luminaires and emergency lighting systems.
It is guaranteed for 5 years.
Product features
| Item Code | Product Name | Output Power | Output Current Range | Output Voltage Range | Power Factor | Efficiency | THD | Ripple | IP Protection | Length mm | Width mm | Height mm |
| 4052899494220 | OTi DALI 35/220-240/400 D LT2 L | 4…38 | 75…400 | 54…240 | >0,95 | 92 | <10 | <1 | IP 20 | 280 | 30 | 21 |

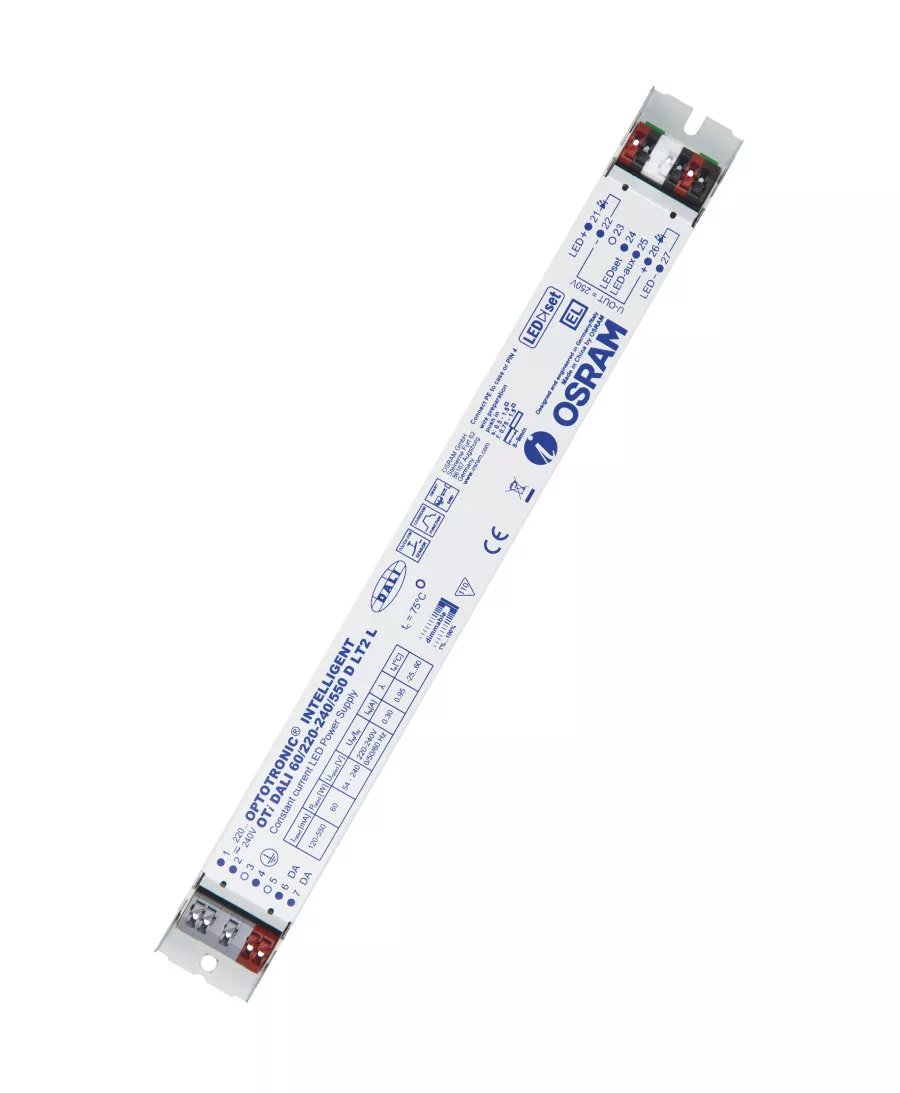

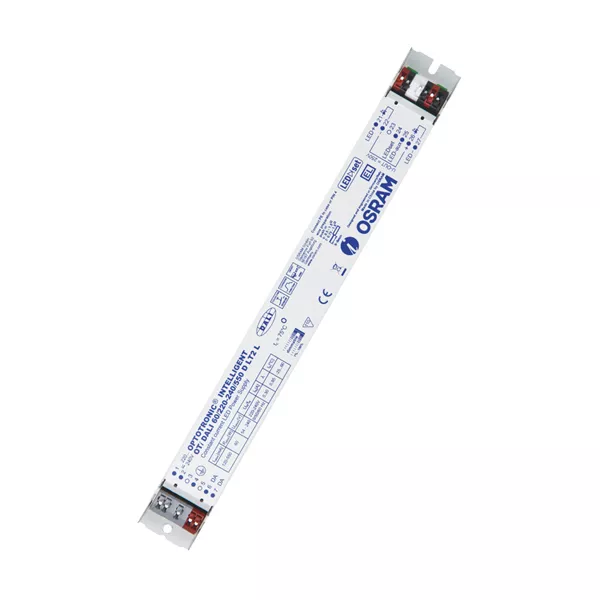

| 4052899494206 | OTi DALI 60/220-240/550 D LT2 L | 6,4…60 | 120…550 | 54…240 | >0,95 | 93 | <10 | <1 | IP 20 | 280 | 30 | 21 |
| 4052899494244 | OTI DALI 90/220-240/700 D LT2 L | 13,5…90 | 250…700 | 54…240 | >0,95 | 93 | <10 | <1 | IP 20 | 280 | 30 | 21 |

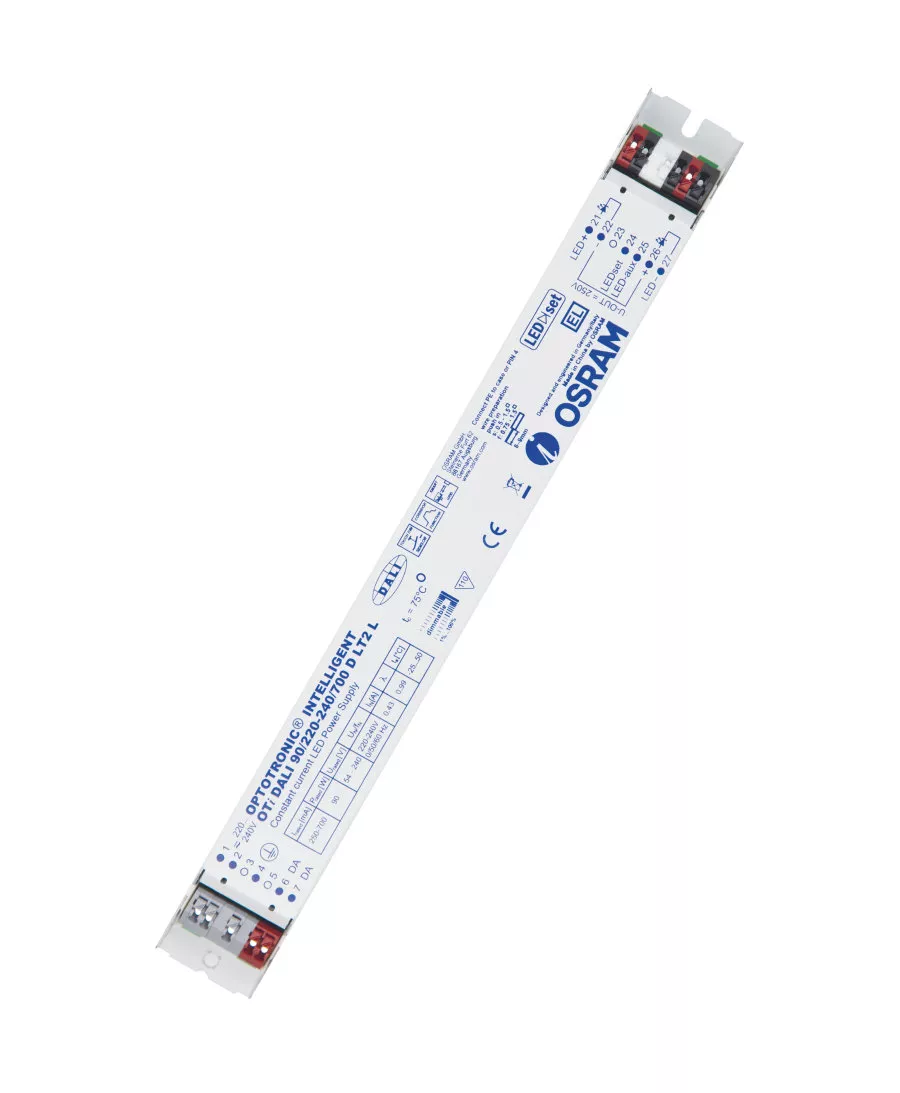

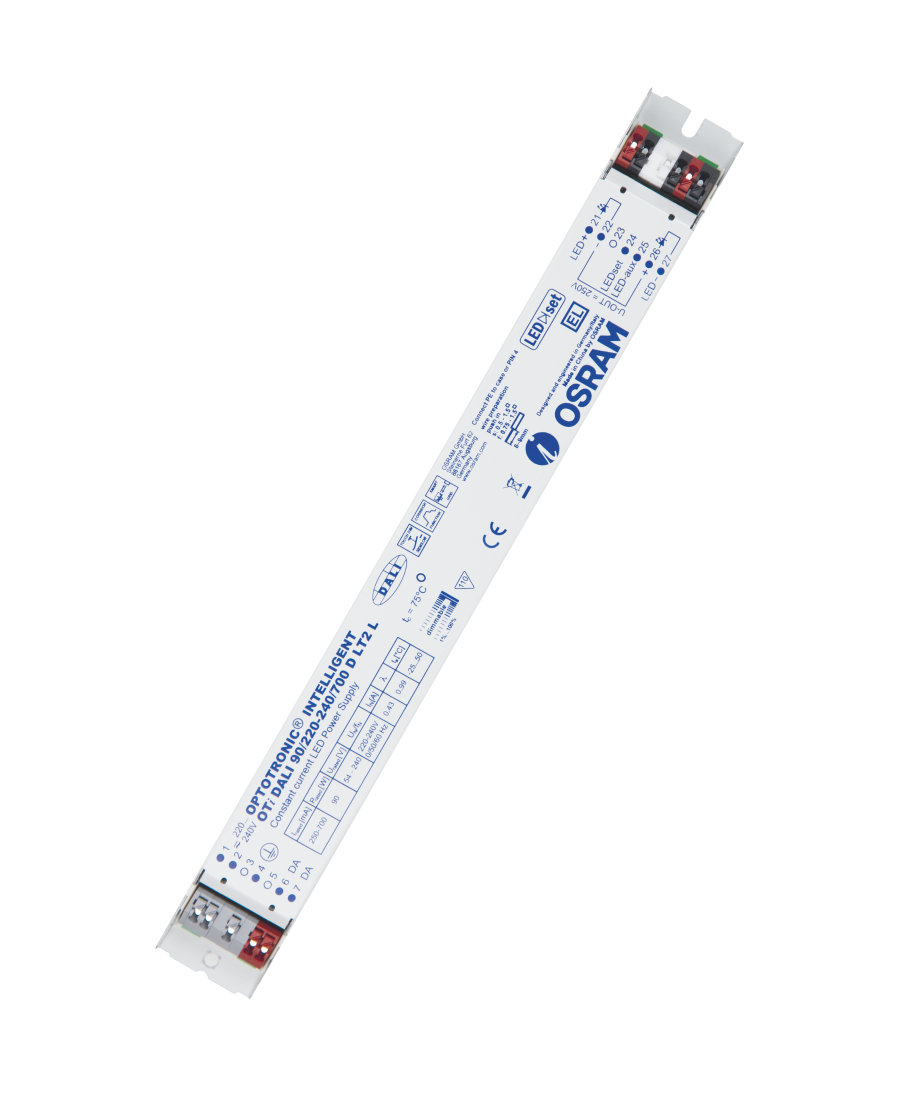

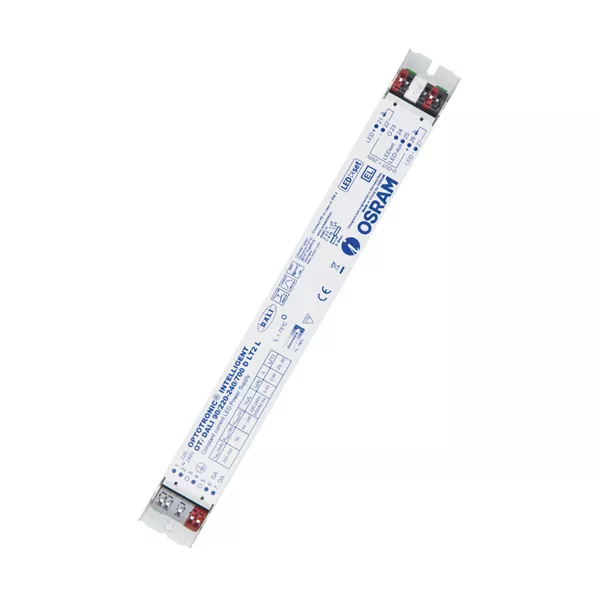

| 4052899494268 | OTi DALI 90/220-240/1A0 LT2 L | 13,5…90 | 250…1000 | 54…240 | >0,95 | 94 | <10 | <1 | IP 20 | 280 | 30 | 21 |
