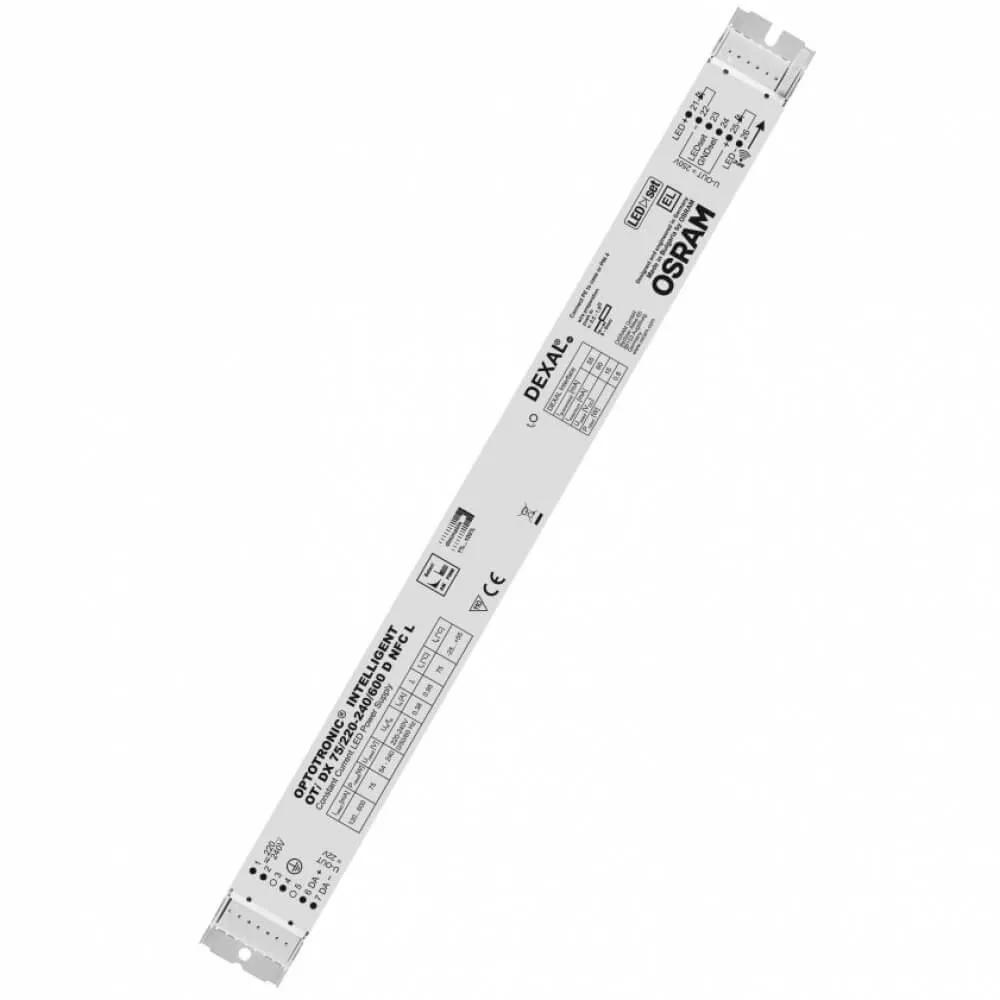

OTi DEXAL Linear (non-isolated)- 2020 NEW SERIES
Manufacturer : OSRAM DS
Category : Constant Current Linear/Indoor/Dimmable
Linear driver with DEXAL feature. It is suitable for all interior lighting applications such as office lighting, shop lighting, warehouse lighting.
-Fully programmable with T4T software (NFC, DALI Interface)
– Prepared for Diia specification -250, -251, -252 and -253.
-Simplified luminaire design for wireless lighting control system and sensors
-Advanced armature/driver data analytics (power, energy, runtime…)
-4 kV burst and 1.5 kV surge (L-N) voltage protection
– Suitable for Class I luminaires
-5 Years Warranty.
Product features
| Item Code | Product Name | Output Power | Output Current Range | Output Voltage Range | Power Factor | Efficiency | THD | Ripple | IP Protection | Length mm | Width mm | Height mm |
| 4052899590380 | OTI DX 35/220-240/400 D NFC L | 4 – 38W | 75 mA – 400 mA | 54 – 240Vdc | >0,95 | 90 | <10 | 4 | IP 20 | 360 | 30 | 21 |
| 4052899590403 | OTI DX 75/220-240/600 D NFC L | 6,5 – 75W | 120 mA – 600 mA | 54 – 240Vdc | >0,95 | 93 | <10 | 4 | IP 20 | 360 | 30 | 21 |
