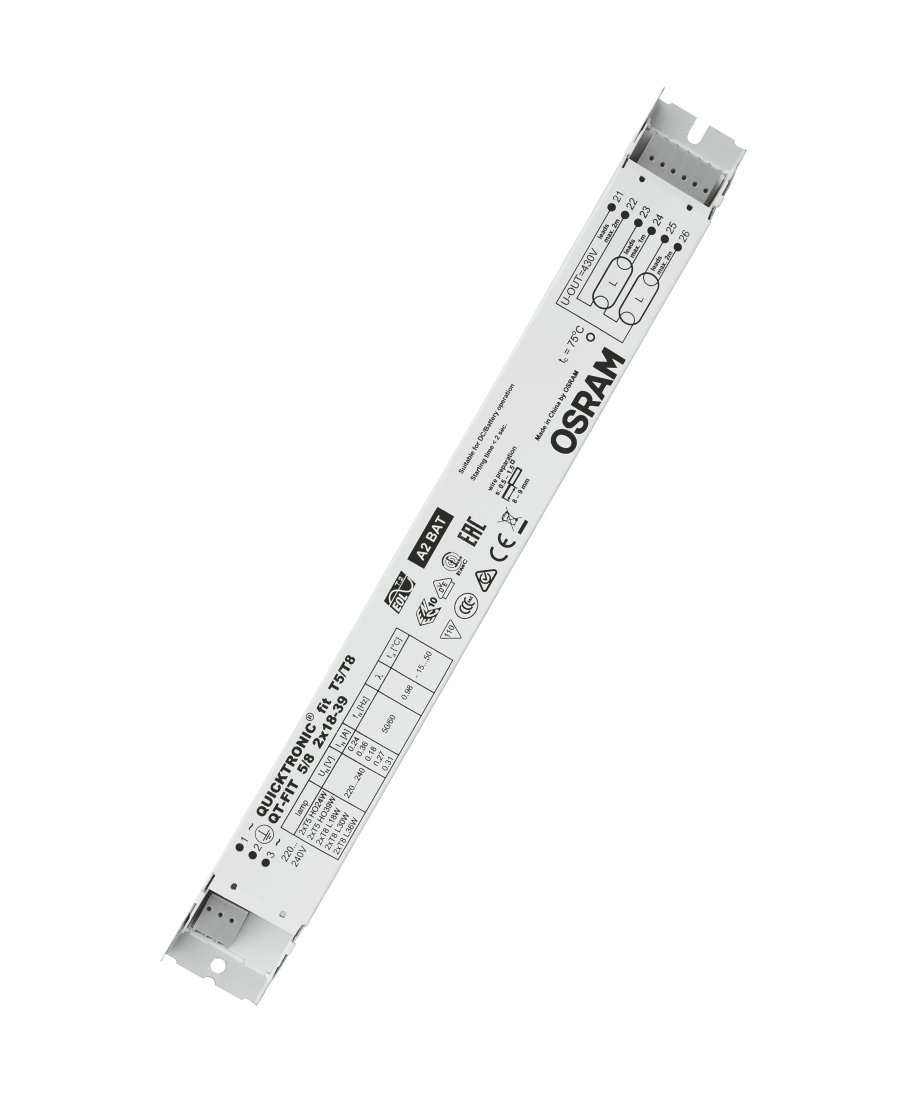

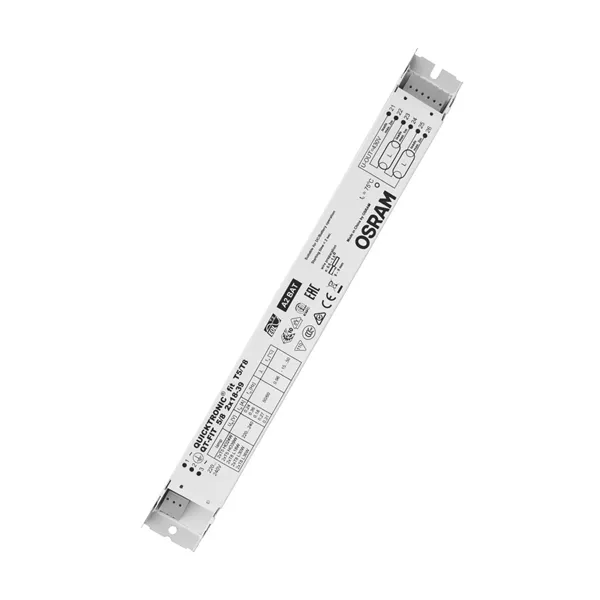

QUICKTRONIC FIT 5/8
Manufacturer : OSRAM DS
Category : Not Dimmable (On/Off)
– Long bulb life
– No negative effects of on/off switching
– Automatic restart after bulb replacement
– Quick launch for motion sensor apps
– VDE/VDE EMC certification system
– Very high energy efficiency thanks to cut-off technology
Product features
| MODEL | Input Voltage AC | Rated Voltage | Frequency | Input Voltage DC | Start Time | Suitable for lamp power (1 lamp) | Suitable for lamp power (2 lamp) | Length( mm ) | Width( mm ) | Height( mm ) |
| QT-FIT 5/8 1X18…39 | 198…264V | 220…240V | 50…60 Hz | 185…264V | 2,0s. | 18…39W | 280 | 30 | 21 | |
| QT-FIT 5/8 1X54…58 | 198…264V | 220…240V | 50…60 Hz | 185…264V | 2,0s. | 54…58W | 280 | 30 | 21 | |
| QT-FIT 5/8 2X18…39 | 198…264V | 220…240V | 50…60 Hz | 185…264V | 2,0s. | 18…39W | 280 | 30 | 21 | |
| QT-FIT 5/8 2X54…58 | 198…264V | 220…240V | 50…60 Hz | 185…264V | 2,0s. | 54…58W | 280 | 30 | 21 |
