Product features

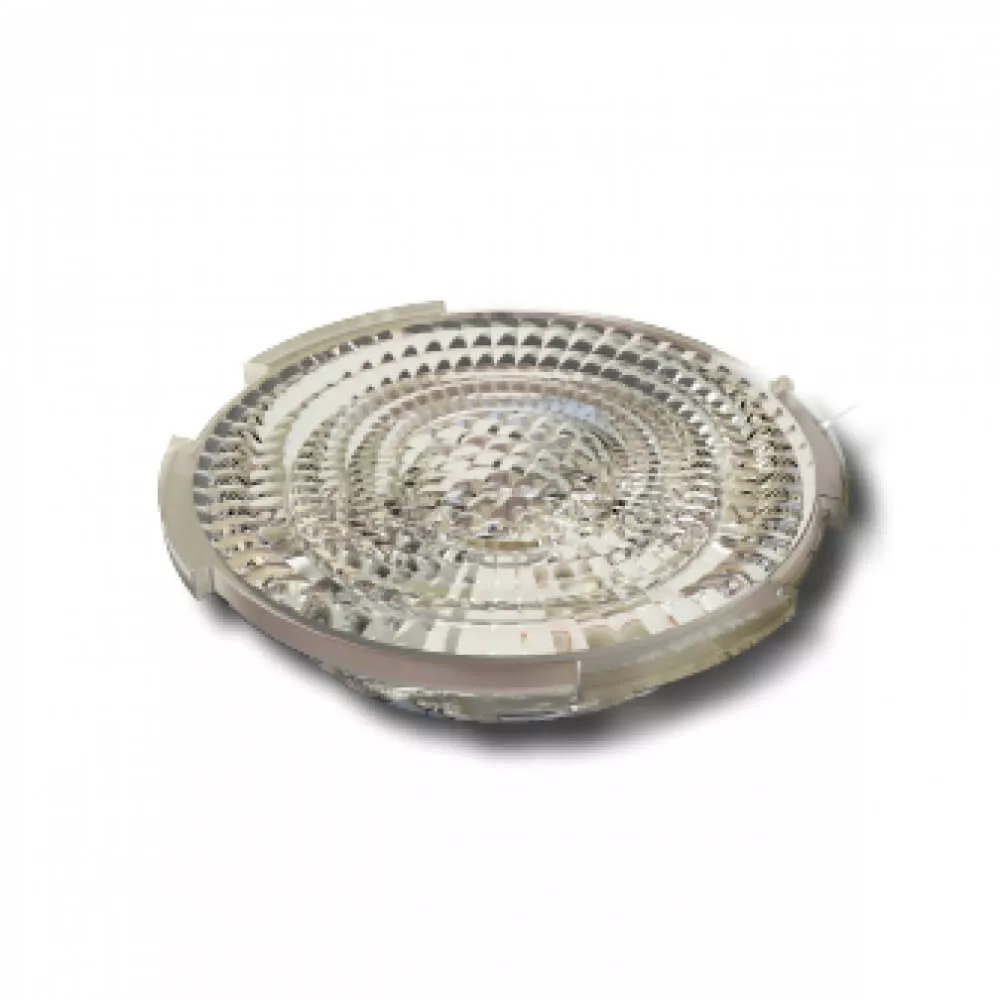

Lenses for COB LEDs – 49.98mm diameter, 10.34mm height – 25° FWHM Medium Beam
“COSMO Lenses for COB LEDs”
Lens Material: PMMA 8N: Top -40° … 90°C

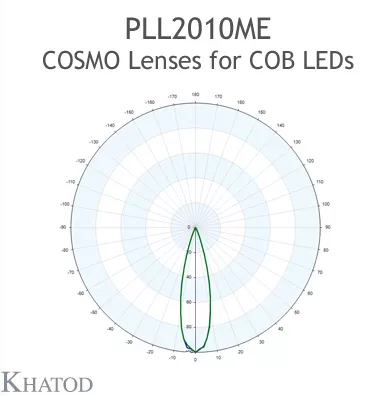

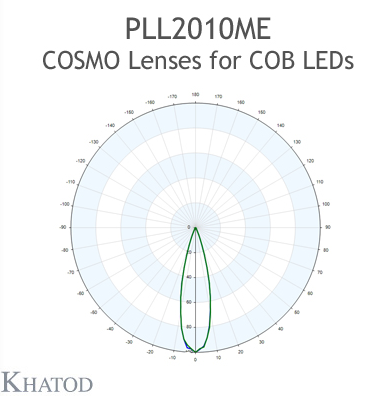

Full angle from 50% max: ~ 25°
Characterized on 6mm LES, works on all COBs with LES from 6mm to 10mm

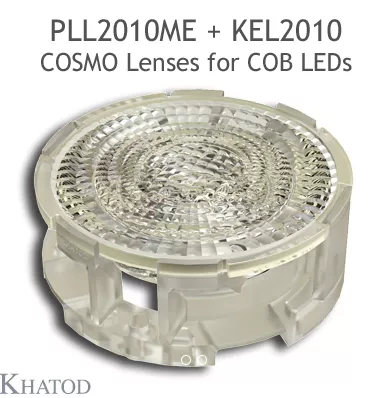

The PLL2010ME is supplied without a holder. The holder is optional and will only be available on request under part number KEL2010 (Clear Clear) or part number KEL2010 / 01 (Black).
Scope of application:
Indoor, Interior architecture and general lighting, Indoor ceiling fixtures, Indoor fixtures, Rail Spot
