Nactus Smile 2x2

Manufacturer : KHATOD
Category : Nactus 2×2 Series

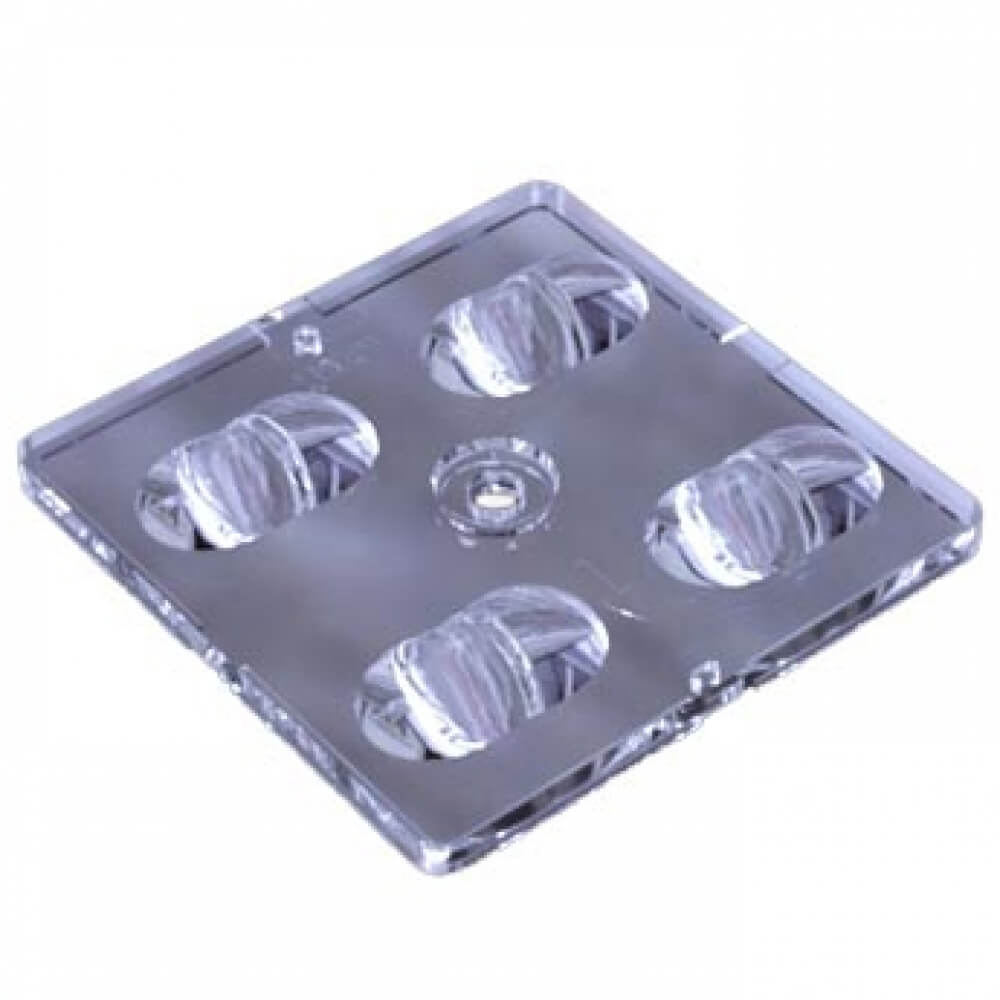

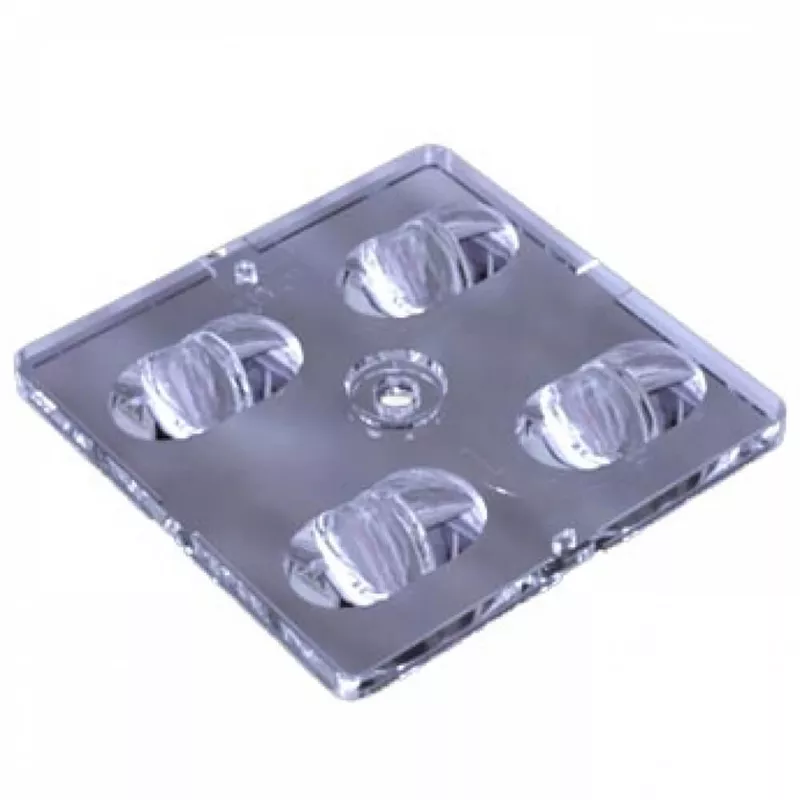

4-Lens Nactus SMALL Optical System – Module dimensions: 50.00mm x 50.00mm – Lens spacing: 25.40 mm –
Material: Clear PMMA 8N, Non-yellowing, 10-year warranty**

NACTUS Optical System Patented.
**The Nactus Small Optical System is made of material used to manufacture PLEXIGLAS® Solar, which guarantees it will not turn yellow for 10 years.
According to the testing standards for the Arizona/Florida exposure test, the Yellowness Index (YI):
– YI 6 under hot/dry conditions
– YI 8 under hot/wet conditions

Ürün Özellikleri
Ürün Kodu / Product CodeIşın Açısı / Beam Angle
KNAC0401ASM135°x100° Asymmetric
KNAC0403ASM105°x145° Asymmetric Type I
KNAC0404ASM130°x130° Symmetric Type VS Short
KNAC0405ASM150°x110° Type I
KNAC0406ASM160°x110° Type II Medium ME3a
KNAC0407ASM90° Type V
KNAC0412ASM160°x130° Type III
KNAC0413ASM160°x120° Type IV
KNAC0420ASM50° Type V
KNAC0424ASM150°x160° Type II/III
KNAC0425ASM145°x55° Type II
KNAC0426ASM150°x110° Type III
KNAC0428ASM80°x145° Type II Medium Cut off
KNAC0429ASM125°x60° Type II/III
KNAC0430ASM150°x80° Type II/III
KNAC0431ASM100°x110° Crosswalks
KNAC0432ASM115°x155° Type I
KNAC0433ASM108°x120° Tunnel Entrance
KNAC0434ASM140°x150° Type IV Tunnel Entrance
KNAC0435ASM70°x160° Type II Medium ME3
