Gaıa Lens
Manufacturer : KHATOD
Category : Gaia 1×3 Series
GAIA Optical Systems for Multichip LEDs
Module dimensions: 195.74 mm x 50.82 mm – 15.00 mm high
IESNA Type
• Material: PMMA HT

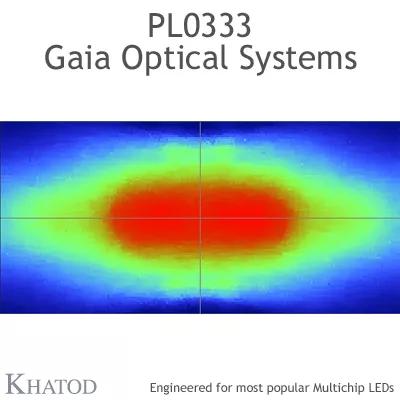

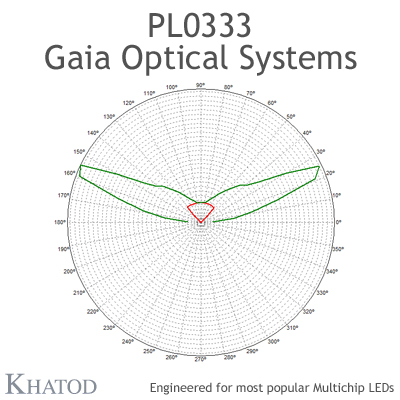

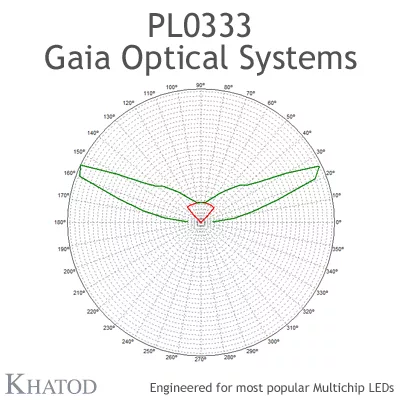

• Full angle from 50% max: ~ 150° x 90°
• Optional: On request, Silicone Gasket for IP protection available only on request under part number KGAS07.

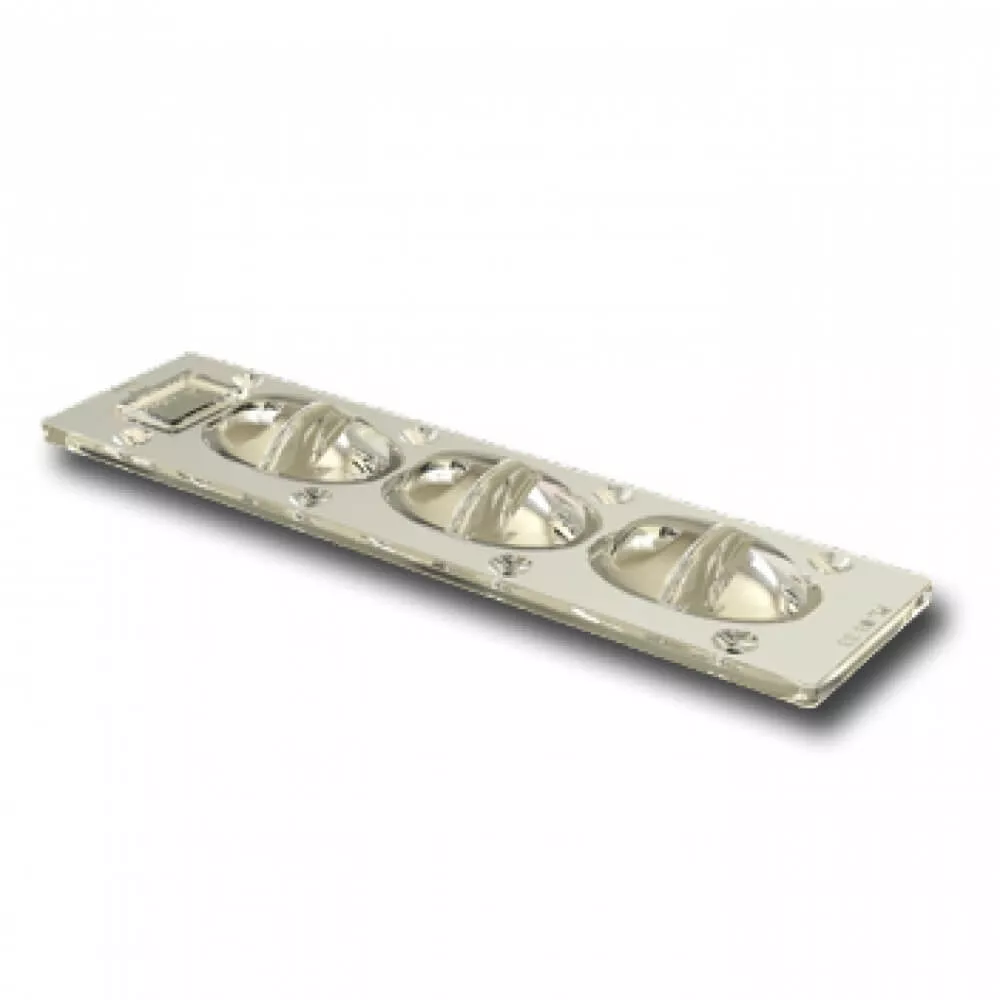

GAIA is a linear lens array made of 3 Free Form Optics that works as a true single lens.
