Product Features
NEMA Optical Systems for Power LEDs; Module dimensions: 110mm x 120mm edge, 9.51mm height – 15° x 40° FWHM
NEMA Optical Systems for Power LEDs
Module dimensions: 110mm x 120mm side – 9.51mm height
15° x 40° FWHM
• Material: PMMA HT121

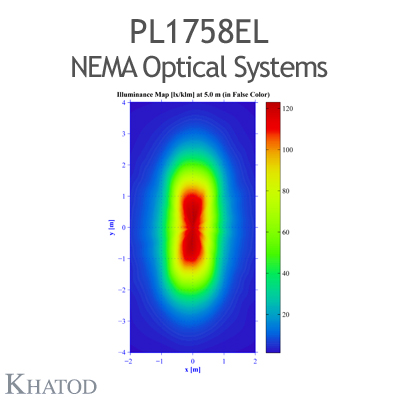

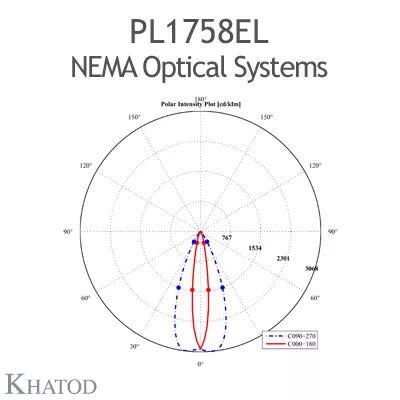

• Full angle from 50% max: ~ 15° x 40°
• Full angle with max 10%: ~ 40° x 65°
• The light points shown here refer to testing with 3mm domed, ~350mA @LED LEDs.
• It is recommended to use lenses with LEDs at 350mA and at a distance of less than 3 meters. The NEMA Class is defined depending on the type of LED used.
• Optional: On request, Silicone Gasket for IP protection will be available on request only under part number KGAS04.
• Optional: PCB and LEDs available for optical testing only, optionally
• Compliant with NEMA Standards, IK classified, IK compliant, UV protected

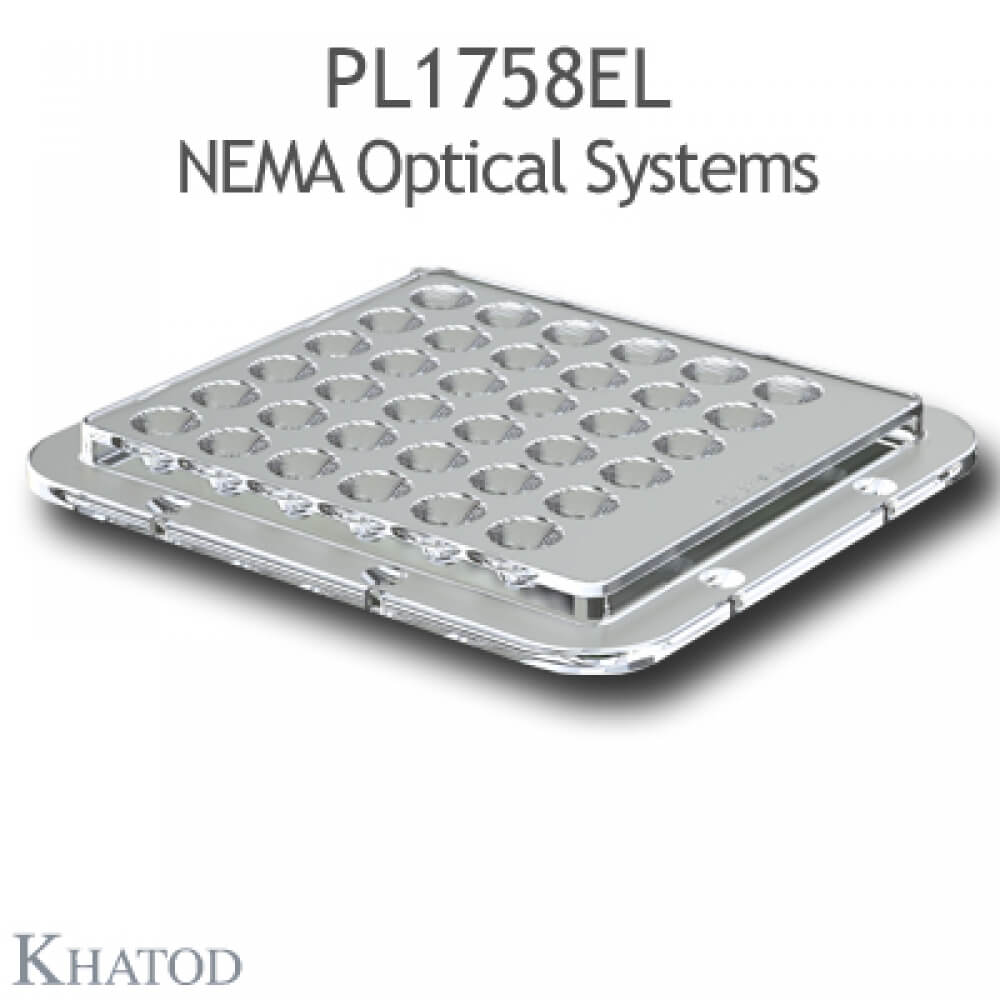

36 optical optical panels designed for the most popular Power LEDs.
The new concept optical system is ready for use for the widest variety of Lighting applications, Indoors and Outdoors.
