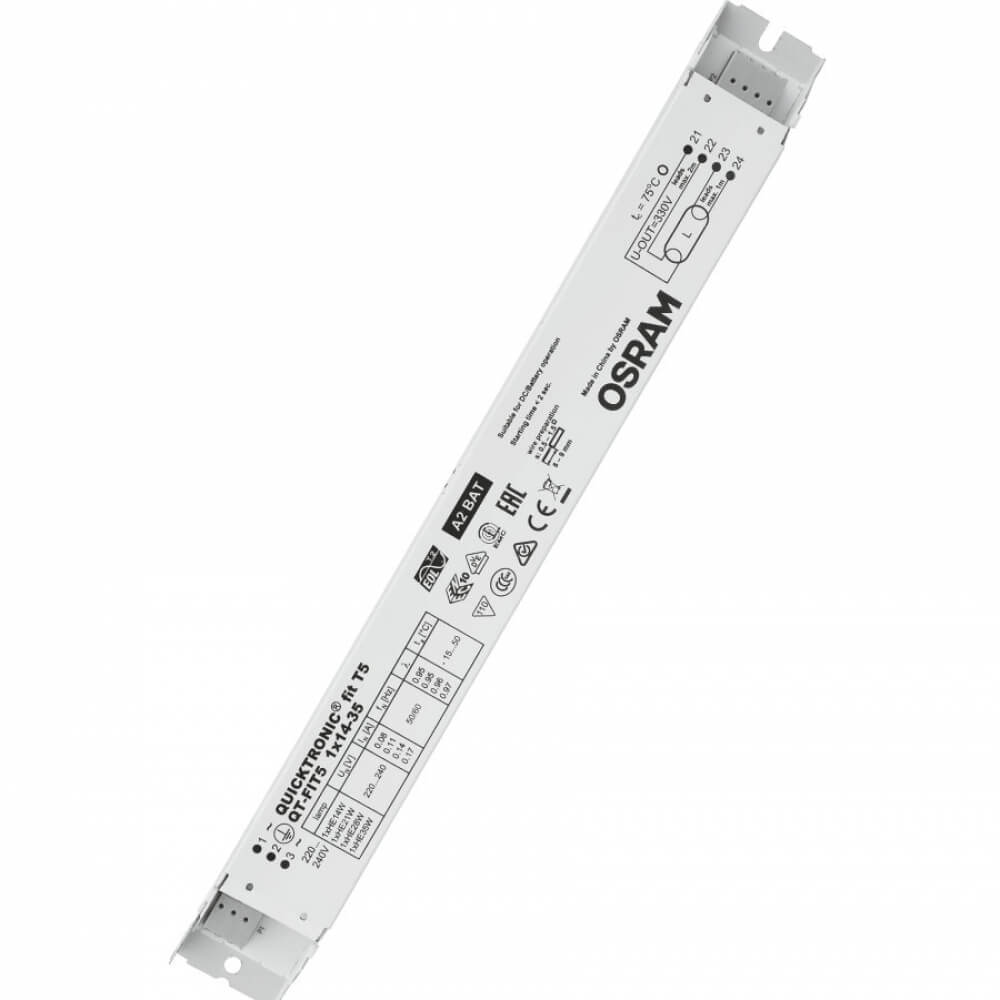

QUICKTRONIC FIT 5, ECG for FL 16 mm
Manufacturer : OSRAM DS
Category : Not Dimmable (On/Off)
– Long bulb life
– No negative effects of on/off switching
– Automatic restart after bulb replacement
– Quick launch for motion sensor apps
– VDE/VDE EMC certification system
– Very high energy efficiency thanks to cut-off technology
Product features
| MODEL | Input Voltage AC | Rated Voltage | Frequency | Input Voltage DC | Start Time | Suitable for lamp power (1 lamp) | Suitable for lamp power (2 lamp) | Suitable for lamp power (3 lamp) | Suitable for lamp power (4 lamp) | Length( mm ) | Width( mm ) | Height( mm ) |
| QT-FIT5 1×14-35/220-240 | 198…264V | 220…240V | 50…60 Hz | 185…264V | 2,0s | 14…35W | 280 | 30 | 21 | |||
| QT-FIT5 2×14-35/220-240 | 198…264V | 220…240V | 50…60 Hz | 198…264V | 2,0s | 14…35W | 280 | 30 | 21 | |||
| QT-FIT5 3X14,4X14/220-240 | 198…264V | 220…240V | 50…60 Hz | 185…264V | 2,0s | 14W | 14W | 280 | 40 | 21 | ||
| QT-FIT5 1×49/220-240 | 198…264V | 220…240V | 50…60 Hz | 186…276V | 2,0s | 49W | 280 | 30 | 21 | |||
| QT-FIT5 2×49/220-240 | 198…264V | 220…240V | 50…60 Hz | 185…264V | 2,0s | 49W | 280 | 30 | 21 |
