Product features

PL1672UN

Single Lenses for Power LEDs; Ultra Narrow Punch Beam Lens
Single Lenses for Power LEDs

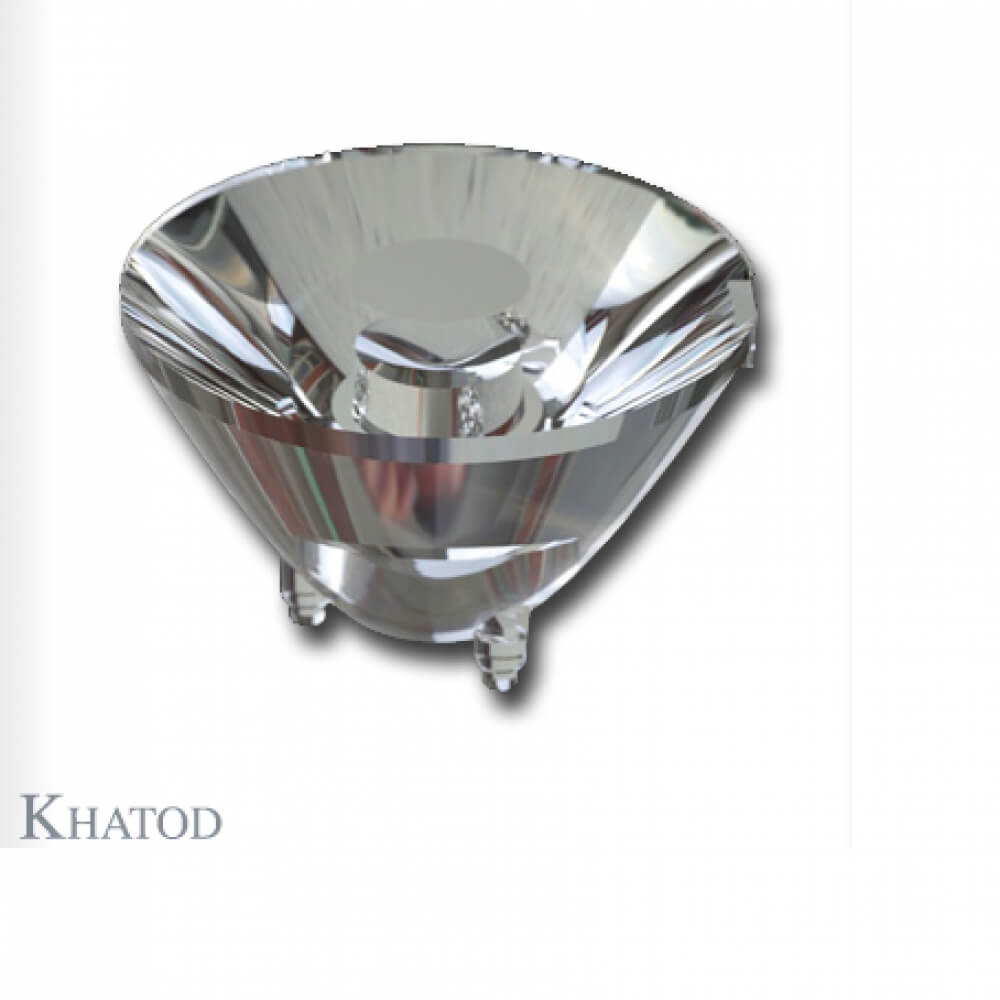

35.00mm diameter – 20.71mm height – Ultra Narrow Punch Beam Lens
MR11 Standard

MATERIAL:
PMMA

BENEFITS:
– LED Chip Projection on target completely eliminated
– Clean Spot, Efficiency >89%
– Optical Grade PMMA
– 3 pins for precise and solid mounting

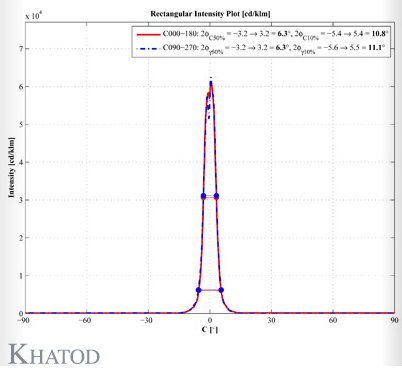

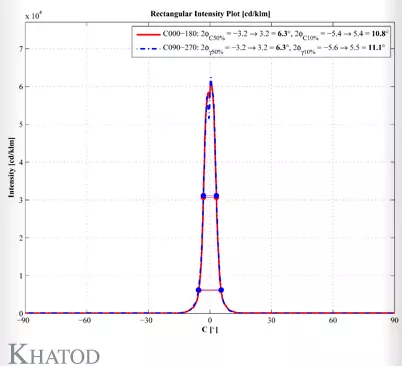

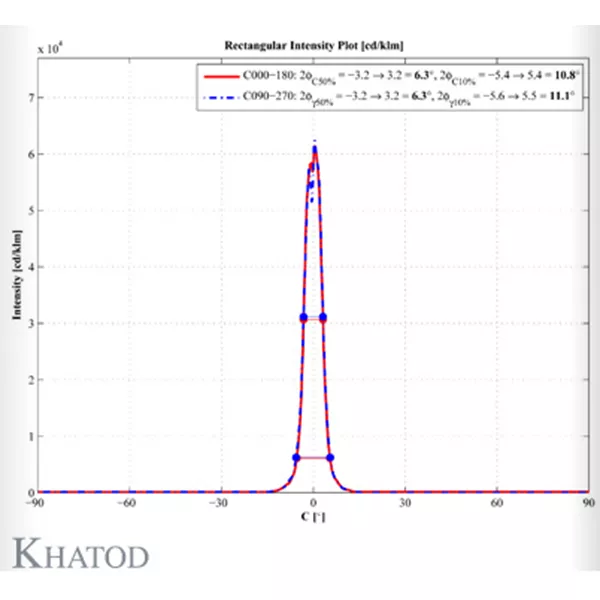

– FWHM = 3.5° for 1 mm2 chip area LEDs

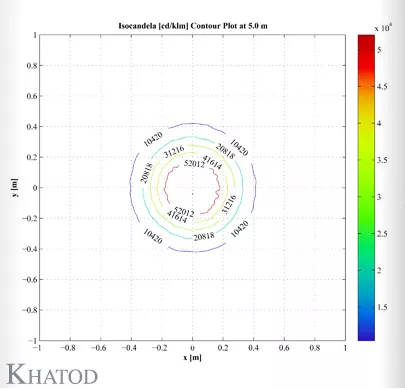

– CBCP (Central Beam Candle Power) = 150 cd / lm
– Smallest Shape Factor Lens (Diameter × FWHM / ChipSize)

TYPICAL APPLICATIONS:
– Facade lighting
– Closed
– Indoor architecture and general lighting
– Indoor recessed luminaires
– indoor spot
– Industrial Light – Commercial Light
– IR
– Office
– Outdoor
– exterior architecture
– Outdoor wall mounted luminaires
– Security lighting
– Spot lighting and projectors
– Stadium / sports arena lighting
– Table and floor lamps
– Mission lighting
– Tracking systems
