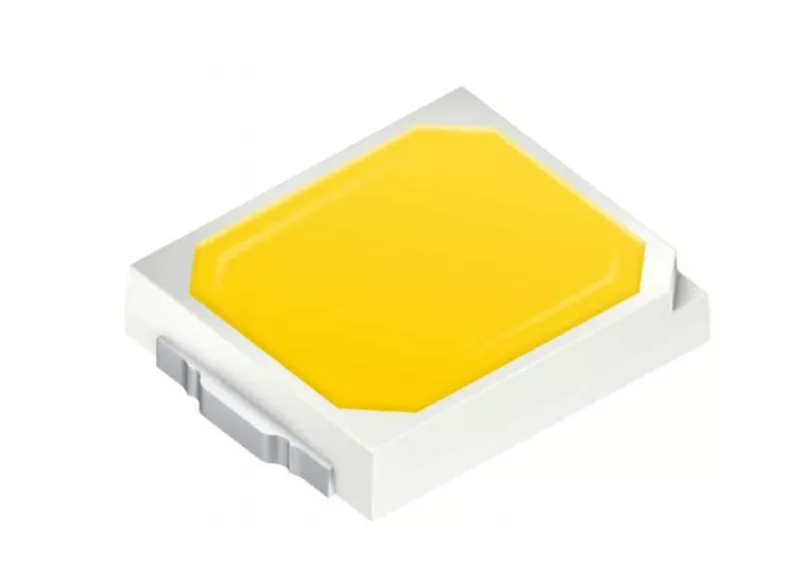

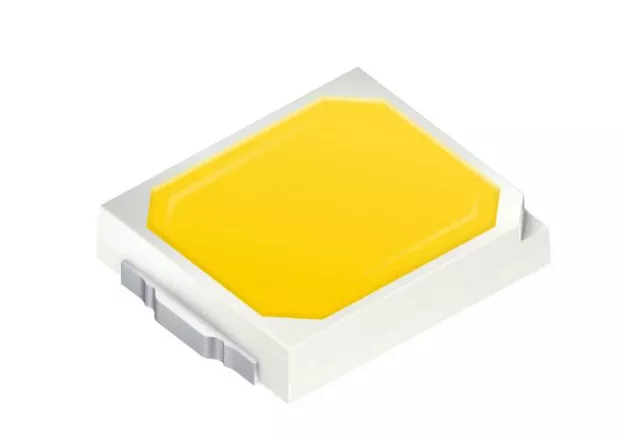

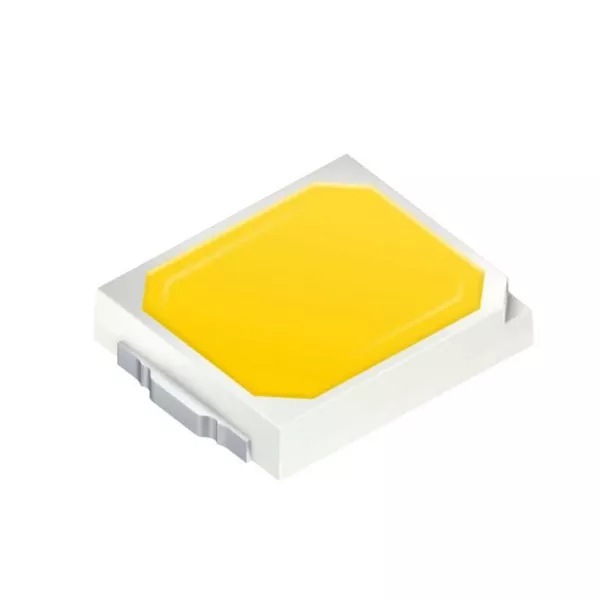

DURIS E2835
Manufacturer : OSRAM Opto Semiconductors
Category : Mid Power LED
Category : Mid Power LED
Application Areas: Linear Lighting, Downlight, Panel lighting and Other interior lighting applications
Package Size: 2.8mm x 3.5mm
Color Temperatures (CCT): 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
Reports: LM-80 ve Göz Sağlığı Test raporları
Product Specs
Product code | Flow (typ.) | Current(max.) | Luminous Flux (typ.) 25°C | Voltage (typ.) | Efficiency (typ.) @ typ current | CCT Range | CRI |
GW JTLMS1.EM | 60 mA | 150 mA | 27 lm | 3.00 V | 150 lm/W @ 5000 K | 2200 –6500K | 85(typ.) |
GW JTLPS1.EM | 150 mA | 250 mA | 72 lm | 3.05 V | 157 lm/W @ 4000 K | 2200 –6500K | 85(typ.) |
GW JTLRS1.EM | 100 mA | 120 mA | 113 lm | 9.60 V | 118 lm/W @ 3000 K | 2200 –6500K | 85(typ.)GW JTL6S1.EM |
GW JTL6S1.EM | 50 mA | 60 mA | 132.5 lm | 18V | 147 lm/W @ 2700 K | 2700 – 6500K | 82 (typ. ) |
