DURIS E3
Manufacturer: OSRAM Opto Semiconductors
Category: Mid Power LED
Application Areas: Linear lighting, downlight, panel lighting and other indoor lighting applications

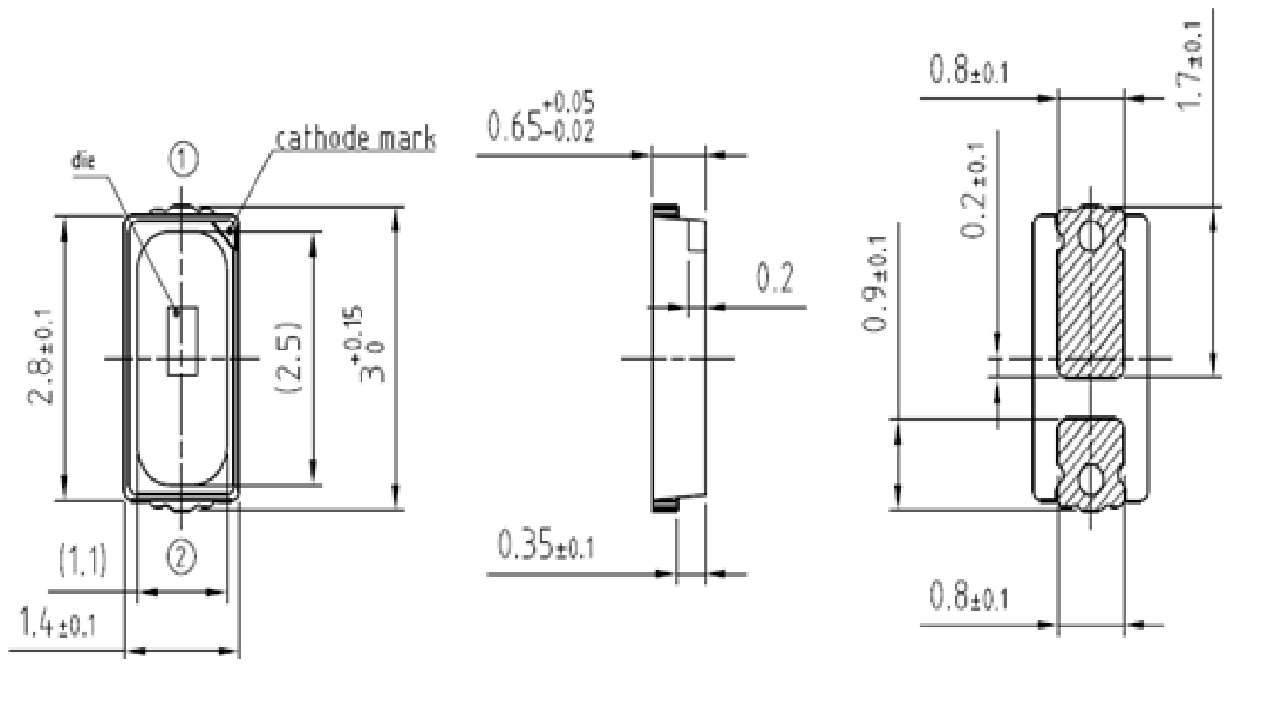

Package Size: 3.0mm x 1.4mm

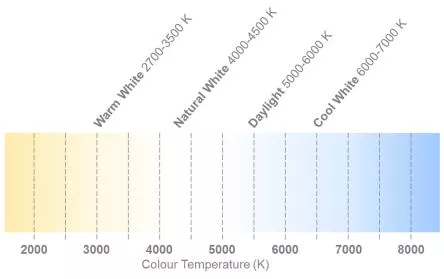

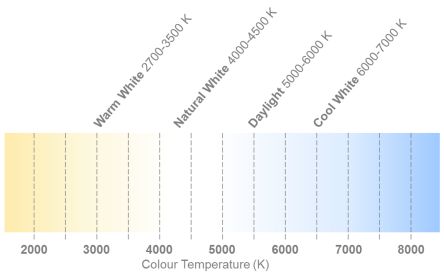

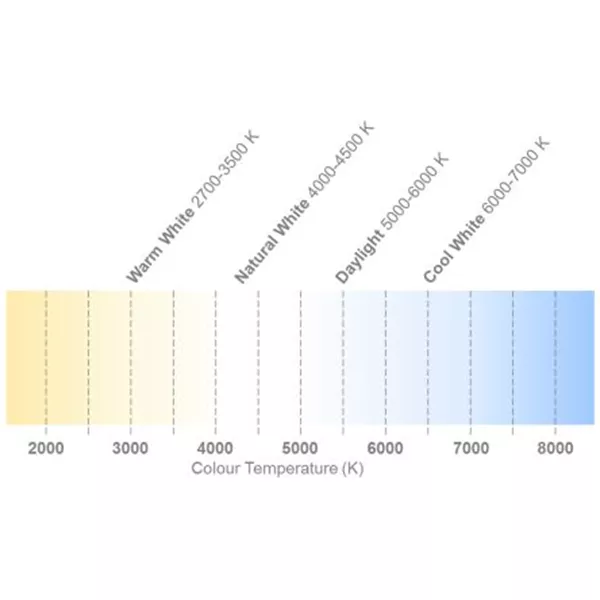

Color Temperatures (CCT): 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI: 85 (typ.), 80 (min.)
Luminous Flux: 30 lm @ 5000 K
Beam Angle: 120°
Reports: LM-80 and Eye Health Test reports
Product Features
Product Code | Current (typ.) | Current (max.) | Luminous flux (typ.) 25°C | Voltage | Efficiency (typ.) @ typ current | CCT range | CRI |
GW JCLPS2.EM | 65 mA | 150 mA | 30 lm | 3.02 V | 153 lm/W @ 5000 K | 2700 –6500K | 85(typ.) |
