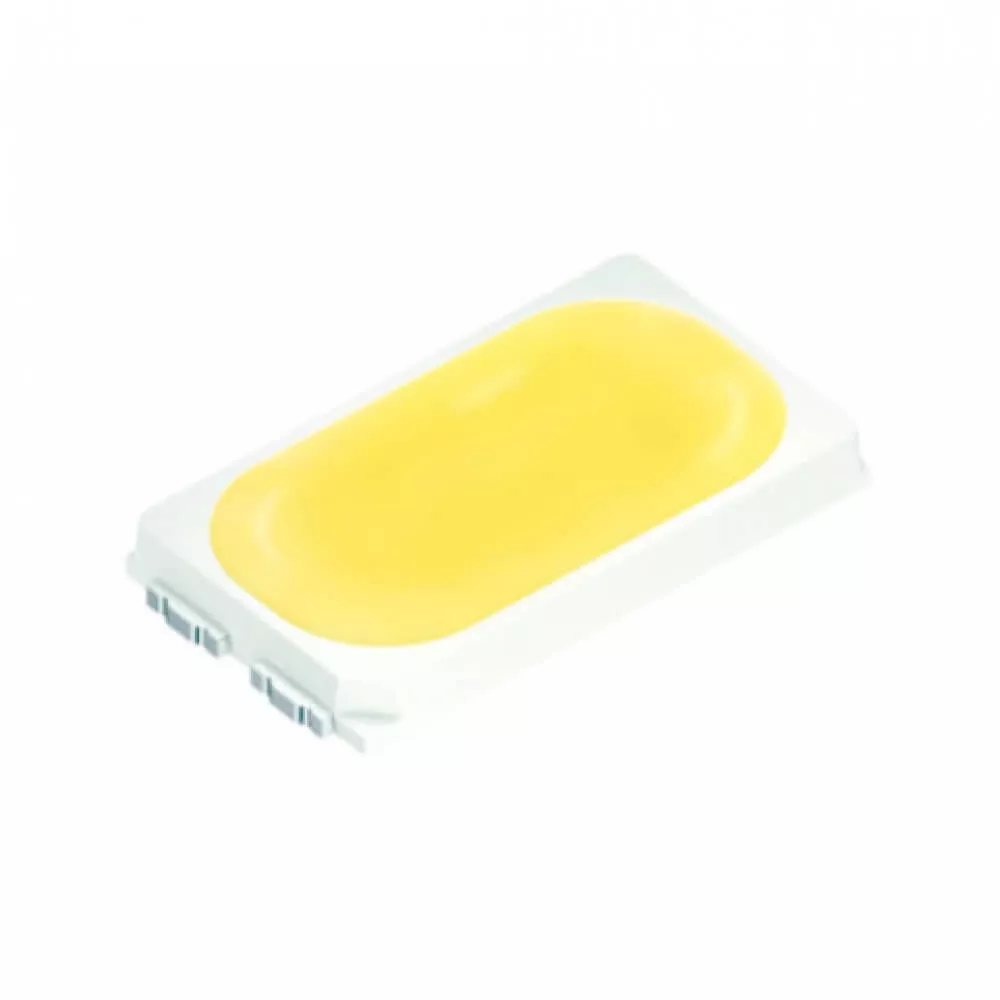

DURIS E5
Manufacturer : OSRAM Opto Semiconductors
Category : Mid Power LED
Application Areas: Linear lighting, downlight, panel lighting and other indoor lighting applications

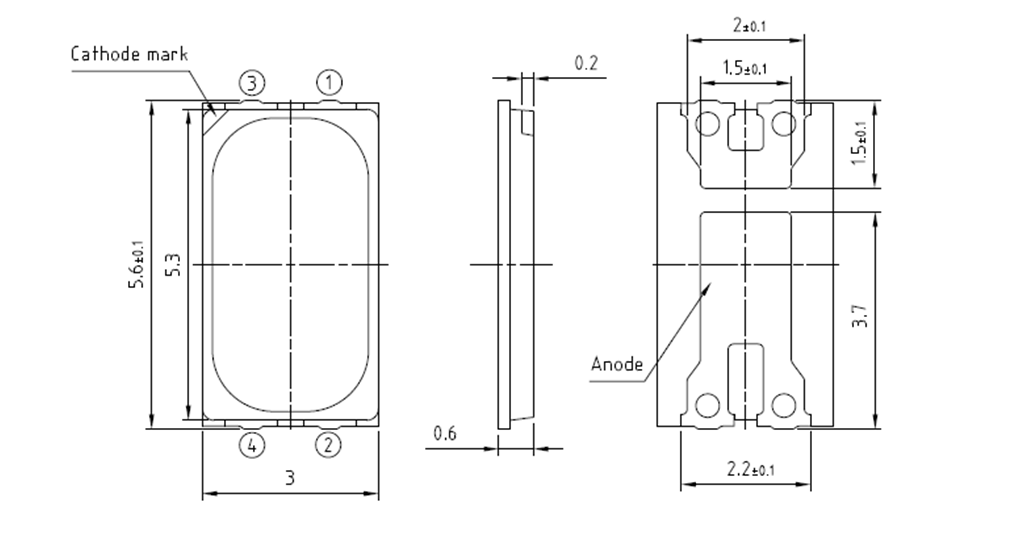

Package Size: 5.6mm x 3.0mm
Color Temperatures (CCT): 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI: 85 (typ.), 80 (min.)
Luminous Flux: 36.5 lm @ 5000 K
Viewing Angle: 120°
Reports: LM-80 and Eye Safety Test reports
Product Features
Product Code | Current (typ.) | Current (max.) | Luminous flux (typ.) 25°C | Voltage | Efficiency (typ.) @ typ current | CCT range | CRI |
GW JDST2.EM | 65 mA | 180 mA | 36.5 lm | 3.0 V | 201 lm/W @ 5000 K | 2700 –6500K | 85(typ.) |
