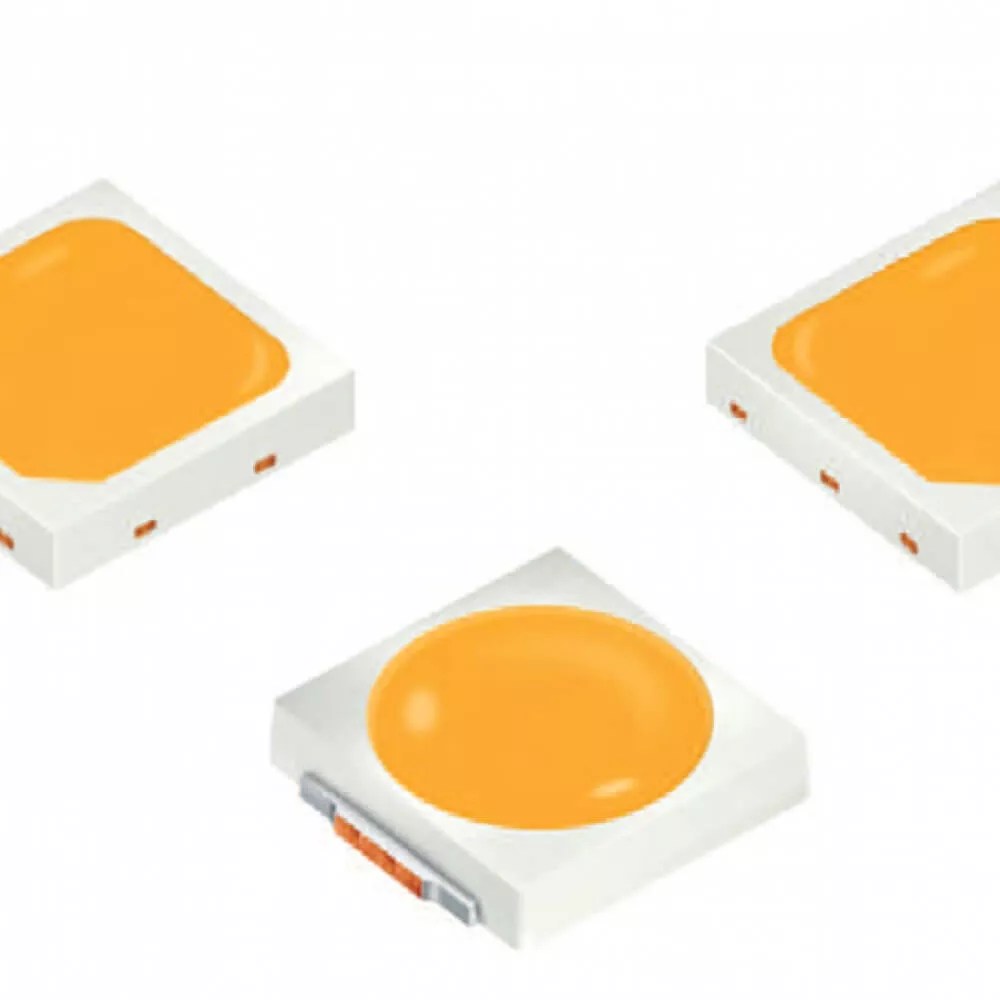

DURIS S5
Manufacturer : OSRAM Opto Semiconductors
Category : Mid Power LED
Application Areas: Linear lighting, downlight, panel lighting and other indoor lighting applications

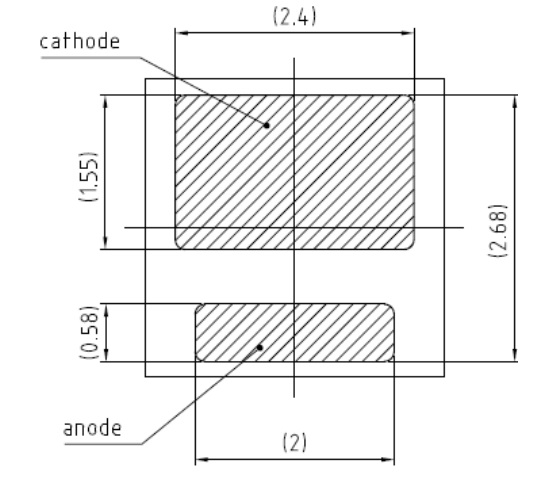

Package Size: 3.0mm x 3.0mm
Color Temperatures (CCT): 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI: 72 (typ.), 70 (min.)
Luminous Flux: 156 lm @ 3000 K
Viewing Angle: 120°
Reports: LM-80 and Eye Health Test reports
Product Features
```html
Product Code | Current (typ.) | Current (max.) | Luminous flux (typ.) 25°C | Voltage | Efficiency (typ.) @ typ current | CCT range | CRI |
GW PSLR31.EM | 150 mA | 200 mA | 128 lm | 6.20 V | 153 lm/W @ 5000 K | 2700 –6500K | 85(typ.) |
GW PSLR32.EM | 120 mA | 400 mA | 55.2 lm | 2.85 V | 161 lm/W @ 3000 K | 2700-6500K | 85(typ.) |
