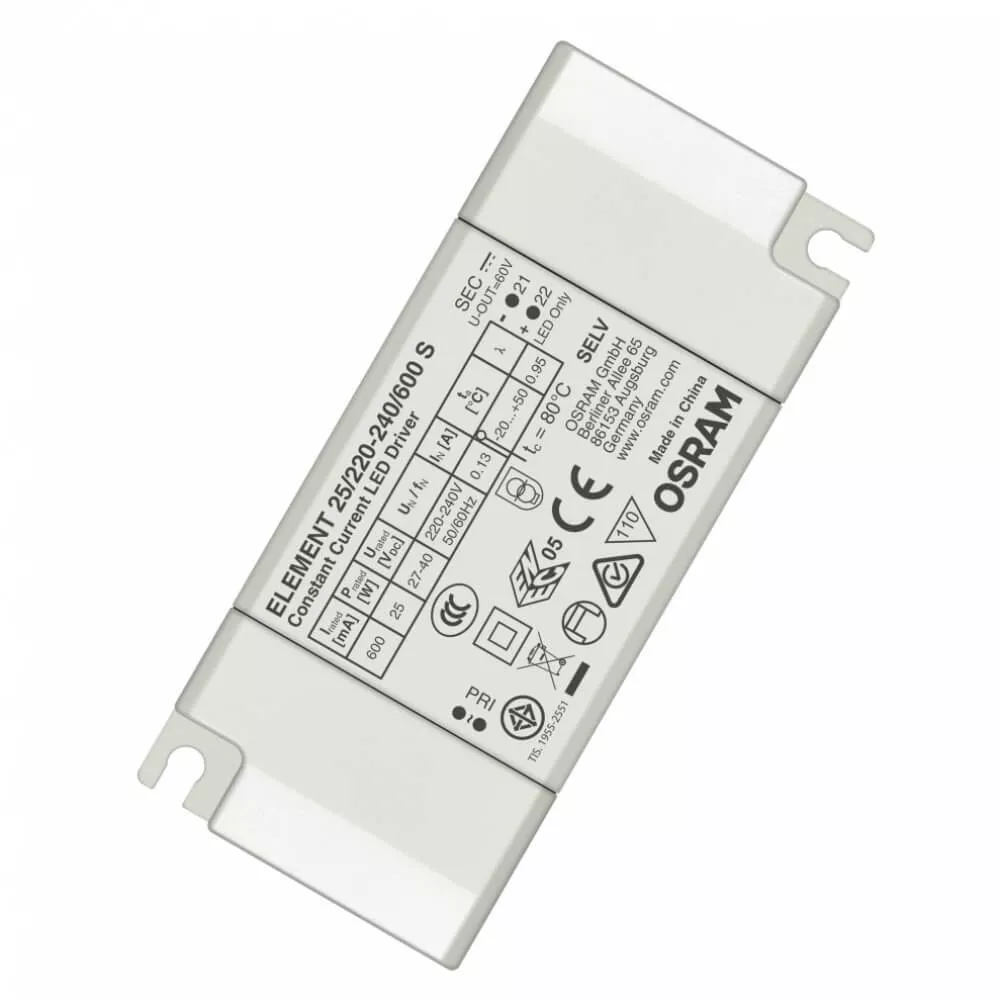

Element Compact S (SELV)

Manufacturer : OSRAM DS
Category : Constant Current Compact/Indoor/Non-Dimmable

It is suitable for all interior lighting applications such as office lighting, shop lighting, spot lighting, downlight with high reliability and efficiency in a compact case.
Compatible with Class I and Class II Luminaires.
3 Years Warranty

Product Specs

Product code

Name of the product

Output Power

Output Current Range

Output Voltage Range

Power Factor(Power Factor)

Productivity (Efficiency)

THD

Ripple

IP Protection

Length mm

Width mm

Height mm

4052899552821

ELEMENT 6/220-240/150 S

4,5 – 6,3W

150 mA

30 – 42Vdc

0,95

>79

<20

<30

IP 20

4052899552845

ELEMENT 8/220-240/200 S

6 – 8,4W

200 mA

30 – 42Vdc

0,95

>82

<20

<30

IP 20

4052899552869

ELEMENT 10/220-240/250 S

7,5 – 10,5W

250 mA

30 – 42Vdc

0,95

>85

<20

<30

IP 20

4052899552883

ELEMENT 12/220-240/300 S

9 – 12,6W

300 mA

30 – 42Vdc

0,95

>85

<20

<30

IP 20

4052899552906

ELEMENT 15/220-240/350 S

10,5 – 14,7W

350 mA

30 – 42Vdc

0,95

>86

<20

<30

IP 20

4052899552920

ELEMENT 20/220-240/500 S

13,5 – 20W

500 mA

27 – 40Vdc

0,95

>87

<20

<30

IP 20

4052899552944

ELEMENT 25/220-240/600 S

16,5 – 24W

600 mA

27 – 40Vdc

0,95

>87

<20

<30

IP 20

4052899552999

ELEMENT 30/220-240/700 S

19 – 28W

700 mA

27 – 40Vdc

0,95

>88

<20

<30

IP 20

4052899553019

ELEMENT 33/220-240/800 S

21,6 – 32W

800 mA

27 – 40Vdc

0,95

>88

<20

<30

IP 20

4052899553033

ELEMENT 38/220-240/900 S

24,5 – 36W

900 mA

27 – 40Vdc

0,95

>88

<20

<30

IP 20

4052899553057

ELEMENT 44/220-240/1050 S

28,3 – 42W

1050 mA

27 – 40Vdc

0,95

>90

<20

<30

IP 20
